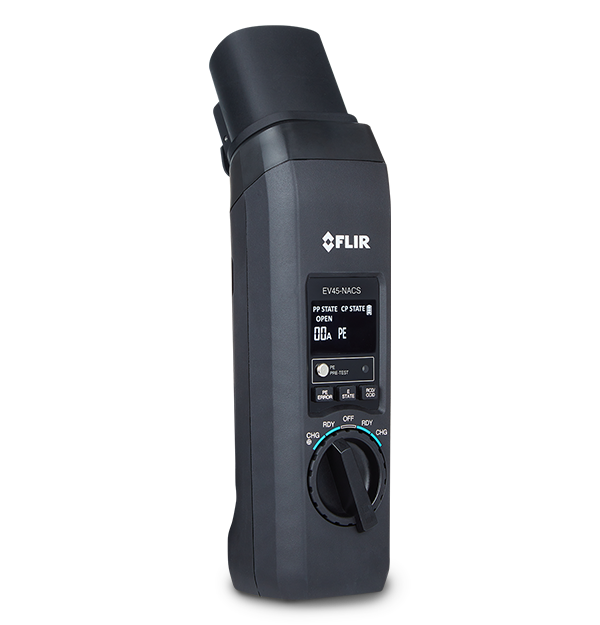

EV45-NACS EV Charger Test Adapter with Nacs Plug and Type 1 Converter
SKU: EV45-NACS
The FLIR EV45-NACS is equipped with a built-in NACS plug for NACS charging stations or AC wall connectors and is compatible with SAE J1772 Type 1 stations, with a compact adapter included. It is designed for level 1 or level 2 electric vehicle AC charging stations (EVSEs) at both residential and commercial destinations. Maintain EV charging station safety by checking Protective Earth (PE) and electrical wiring, Test charge current interrupt device (CCID) to ensure electrical safety, Verify EV Charger maximum current output, Output charging voltages and frequency for further performance and safety checks, with the option to use the FLIR DM286 IGM multimeter for a comprehensive kit solution. The Bluetooth FLIR METERLiNK technology in the DM286 allows you to connect wirelessly to the METERLiNK app on mobile devices, enabling instantaneous documentation, reporting, and sharing of results.
List price. Volume pricing available.
The FLIR EV45-NACS is equipped with a built-in NACS plug for NACS charging stations or AC wall connectors and is compatible with SAE J1772 Type 1 stations, with a compact adapter included. It is designed for level 1 or level 2 electric vehicle AC charging stations (EVSEs) at both residential and commercial destinations. Maintain EV charging station safety by checking Protective Earth (PE) and electrical wiring, Test charge current interrupt device (CCID) to ensure electrical safety, Verify EV Charger maximum current output, Output charging voltages and frequency for further performance and safety checks, with the option to use the FLIR DM286 IGM multimeter for a comprehensive kit solution. The Bluetooth FLIR METERLiNK technology in the DM286 allows you to connect wirelessly to the METERLiNK app on mobile devices, enabling instantaneous documentation, reporting, and sharing of results.
The FLIR EV45-NACS EV Charger Test Adapter with Nacs Plug and Type 1 Converter EV45-NACS is manufactured by FLIR. Valley Instrument Service is an authorized FLIR dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Safety Category | CAT II-300 V, IEC 61010-1 |
| CP Error (E state) Simulation | Pass/Fault (CP signal short-circuited to PE) |
| CP State Simulation | A (Disconnected), B (Connected), C (Charging), D (Charging w/ ventilation), E (Error) |
| Input Type | Measuring Terminals: L1, L2/N, PE / Output for test purposes only: Max. 250 V (Single Phase), 50 / 60 Hz, CAT II 300 V, Max. 10 A |
| PE Error Simulation | Pass/Fault (Interruption of PE conductor) |
| PE Pre-Test | Pass/Fault (>50 V AC/DC between PE conductor and touch sensor) |
| PP State Simulation | Open, 13 A, 20 A, 32 A, 63 A |
| RCD/CCID Trip Test | Pass/Fault (Test RCD/CCID activation once tripped) |
| Voltage Phase Indication | L1, L2 |
| Connector Types | NACS (Built-in), Type 1 (converter included) |
| Battery Life | Approx. 100 hours, with alkaline batteries |
| Battery Type | 4 × AA Alkaline batteries |
| Box Contents | EV45-NACS / Converter for Type 1 / Carrying Pouch / Test Leads / 4 × AA batteries / User Manual |
| Size (L x W x H) | 237 mm × 65 mm × 56 mm / (9.33 in × 2.56 in × 2.20 in) |
| Weight | 600 g (1.32 lbs) |
| Certifications | ETL, CE |
| EMC | EN61326-1 |
| Operating Altitude | 2000 m (6560 ft) |
| Operating Ambient Temperature and Relative Humidity (RH) | −10°C to 30°C (14°F to 86°F), <85% RH / 30°C to 40°C (86°F to 104°F), <75% RH / 40°C to 50°C (104°F to 122°F), <45% RH |
| Storage temperature and relative humidity [RH] | −20°C to 60°C (−4°F to 140°F), 0 to 80% RH (without batteries) |
Accessories, replacement sensors, and parts for this product family.
Related Products

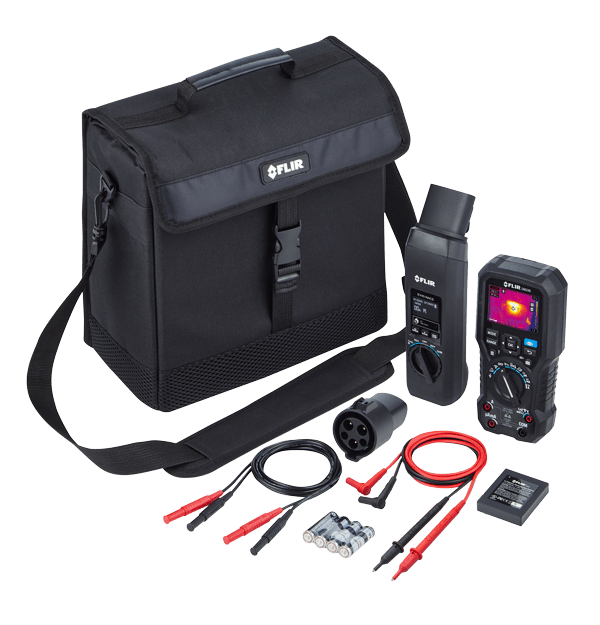

EV-KIT-1 Charger Test Kit with EV45-NACS, DM286 Multimeter and Test Leads
The FLIR EV45-NACS is equipped with a built-in NACS plug for NACS charging stations or AC wall connectors and is compatible with SAE J1772 Type 1 stations. It is designed for level 1 or level 2 electric vehicle AC charging stations (EVSEs) at both residential and commercial destinations. Test charge current interrupt device (CCID) to ensure electrical safety and verify EV Charger maximum current output charging voltages and frequency for further performance and safety checks with the included FLIR DM286 IGM multimeter for a comprehensive kit solution. The Bluetooth FLIR METERLiNKtechnology in the DM286 allows you to connect wirelessly to the METERLiNK app on mobile devices, enabling instantaneous documentation, reporting, and sharing of results.

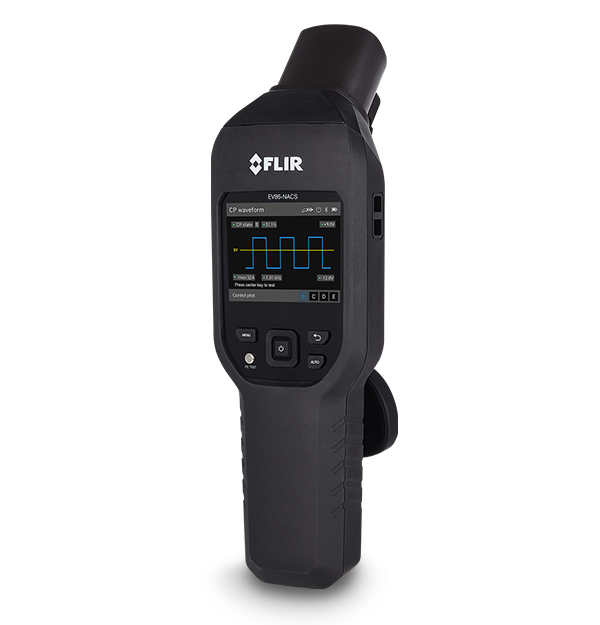

EV86-NACS EV Charging Station Analyzer with METERLiNK
