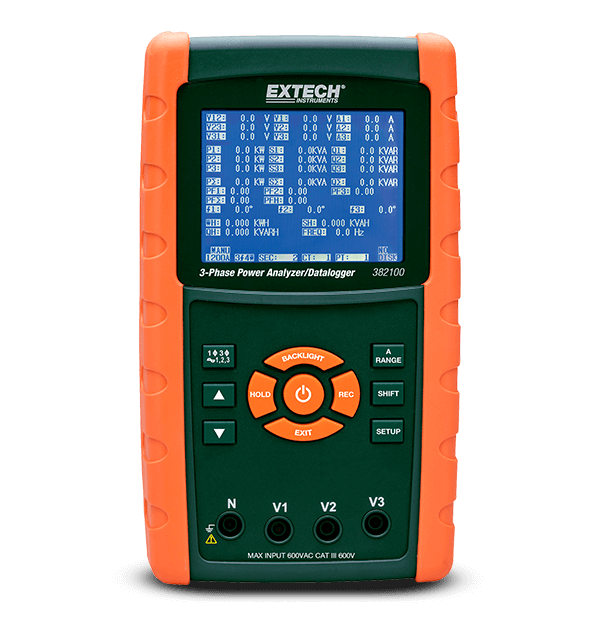

382100 Power Analyzer
SKU: 382100
The Extech 382100 is a 3-Phase Power Analyzer/Datalogger that saves data (up to 30,000 sets of measurements) on an SD card in Excel format for easy transfer to your PC. It provides a full system analysis with up to 35 parameters including: V (phase-to-phase), V (phase-to-ground), A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), and Phase Angle. Readings are displayed on a large, dot matrix, sun-readable, backlit LCD. It comes with three current clamps, four voltage leads with alligator clips, eight AA batteries, SD memory card, Universal AC adapter (100 to 240 V), case, and user manual.
List price. Volume pricing available.
The Extech 382100 is a 3-Phase Power Analyzer/Datalogger that saves data (up to 30,000 sets of measurements) on an SD card in Excel format for easy transfer to your PC. It provides a full system analysis with up to 35 parameters including: V (phase-to-phase), V (phase-to-ground), A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), and Phase Angle. Readings are displayed on a large, dot matrix, sun-readable, backlit LCD. It comes with three current clamps, four voltage leads with alligator clips, eight AA batteries, SD memory card, Universal AC adapter (100 to 240 V), case, and user manual.
The Extech 382100 Power Analyzer 382100 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| AC Current | 1200A |
| AC Current Basic Accuracy | ±(0.5% of reading + 0.5A) |
| AC Voltage | 600.0V |
| AC Voltage Basic Accuracy | ±(0.5% of reading + 0.5V) |
| Active Power | 9.999MW |
| Active Power Basic Accuracy | ±(1.0% of reading + 0.08KW) |
| Active Power Energy | 0.0kWh to 9.999MWHr |
| Active Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KWh) |
| Apparent Power | 9.999MVA |
| Apparent Power Basic Accuracy | ±(1.0% of reading + 0.08KVA) |
| Apparent Power Energy | 0.0KVAh to 9.999MVAh |
| Apparent Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KVAh) |
| Frequency | 45Hz to 65Hz |
| Frequency Basic Accuracy | ±0.1Hz |
| Memory | 60,000 readings (2GB SD memory Card) |
| Phase | -180° to +180.0° |
| Phase Basic Accuracy | ±1° |
| Power Factor | 0.00 to 1.00 |
| Power Factor Basic Accuracy | ±0.04 |
| Reactive Power | 9.999MVAR |
| Reactive Power Basic Accuracy | ±(1.0% of reading + 0.08KVAR) |
| Reactive Power Energy | 0.0kVARh to 9.999MVARh |
| Reactive Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KVARh) |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 8.9 × 2.5 × 1.3 (225 × 125 × 64mm) |
| Safety Category | CAT III-600V |
| Warranty | 2 years |
| Weight | Meter: 2.3lbs (1049g); Clamp: 1.2lbs (522g) |
Related Products

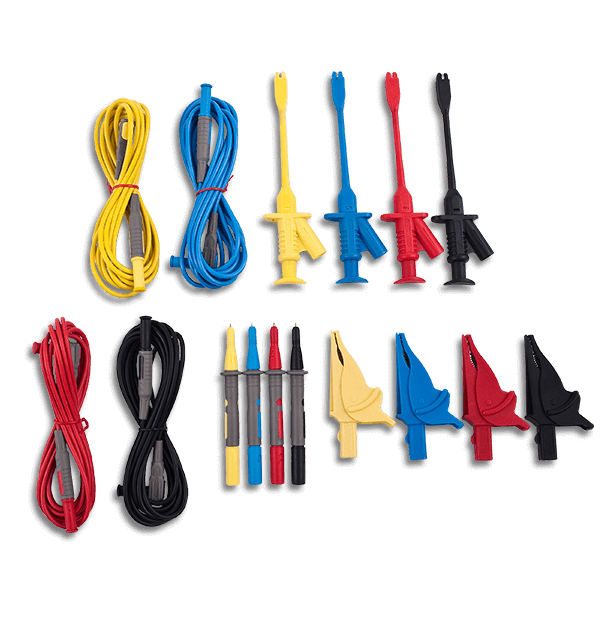

PQ1000 Accessory Kit for PQ3350
The Extech PQ1000 is a CAT IV Test Lead accessory kit For PQ3400 series power analyzers. It includes a set of 4, 3 m (10 ft) test leads (black, red, blue, yellow) with shrouded banana plugs on both ends (right angle on one end). Includes test probes, alligator clips, and long reach spring loaded clips.

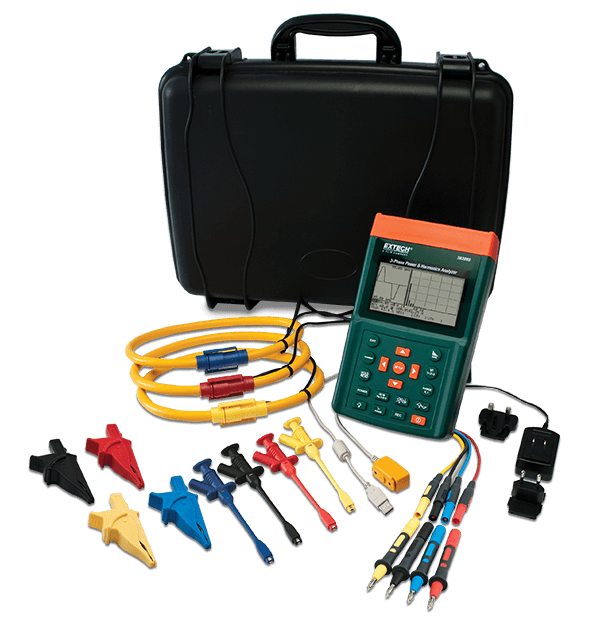

PQ3350-3 Power Quality Meter w/ 3000A Flex Clamp
