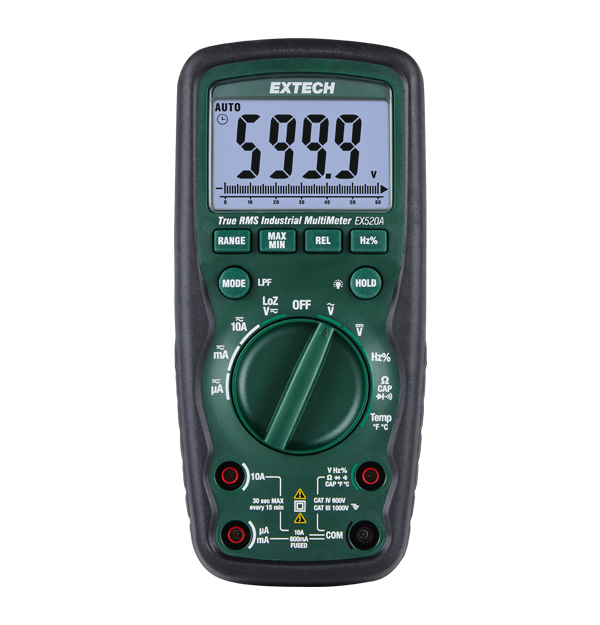

EX520A-NIST Heavy Duty True RMS Multimeter w/NIST
SKU: EX520A-NIST
The EX520A heavy duty true RMS industrial multimeter measures AC/DC voltage, current, resistance, capacitance, dual sensitivity frequency (electric 1 kHz/electronic 10 MHz), type K thermocouple -45°C to 760°C (-50°F to 1400°F), and bead wire temperature probe -20°C to 250°C (-4°F to 482°F). It features a 6000 count backlit LCD screen, 0.09% basic accuracy, relative/data hold, and auto an auto power function. With a CAT IV-600 V safety rating and an IP67 rating for water and dust resistance, the EX520A is an ideal tool for electricians, HVAC technicians and benchtop technicians who require accuracy, durability, and safety in their electrical testing equipment.
List price. Volume pricing available.
The EX520A heavy duty true RMS industrial multimeter measures AC/DC voltage, current, resistance, capacitance, dual sensitivity frequency (electric 1 kHz/electronic 10 MHz), type K thermocouple -45°C to 760°C (-50°F to 1400°F), and bead wire temperature probe -20°C to 250°C (-4°F to 482°F). It features a 6000 count backlit LCD screen, 0.09% basic accuracy, relative/data hold, and auto an auto power function. With a CAT IV-600 V safety rating and an IP67 rating for water and dust resistance, the EX520A is an ideal tool for electricians, HVAC technicians and benchtop technicians who require accuracy, durability, and safety in their electrical testing equipment.
The Extech EX520A-NIST Heavy Duty True RMS Multimeter w/NIST # EX520A-NIST is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| NIST Calibration | Yes |
| AC Current | 0.1 µA to 10 A |
| AC Voltage | 1 mV to 1000 V |
| Capacitance | 0.01 nF to 99.99 mF |
| Continuity | Yes |
| DC Current | 0.1 µA to 10 A |
| DC Voltage | 0.1 mV to 1000 V |
| Duty Cycle | 0.1 to 99.9% |
| Frequency | Electrical: 0.001 Hz to 10 MHz, Electronic: 0.01 Hz to 1 kHz |
| Resistance | 0.1 Ω to 40 MΩ |
| Temperature (Type K) Max Resolution | -45°C to 760°C (-50°F to 1400°F) |
| True RMS | Yes |
| Certifications | CE, UL |
| Dimensions | 183 mm × 83 mm × 55 mm (7.1 in × 3.2 in × 2.1 in) |
| Display | 6000-count segment LCD |
| IP Rating | IP67 |
| Power | 1 × 9 V battery |
| Safety Category | CAT IV-600 V |
| Warranty | 3 years |
| Weight | 375 g (13.2 oz) |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
EX520A | $184.00 | View Details → |
EX520A-NISTCurrent | $379.00 | Viewing |
