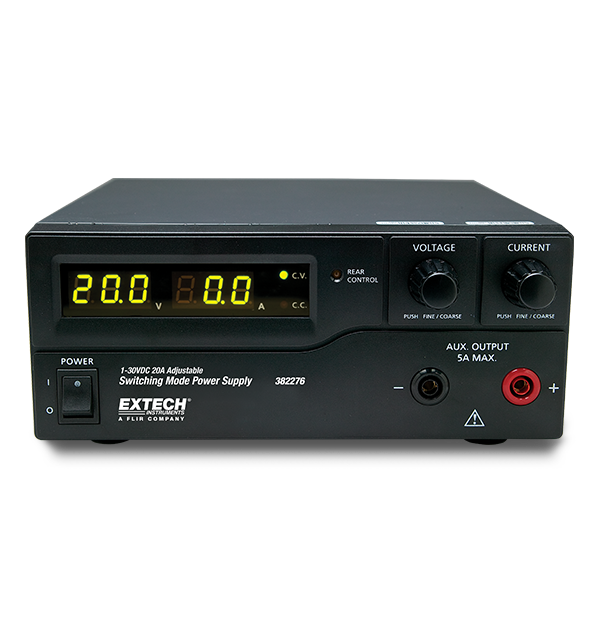

382276 DC Power Supply 30V/20A Switching/220 VAC
SKU: 382276
Power supply features dual LED displays, high RFI immunity, excellent EMI, and a Thermostatic Control Fan. Additional features include over-voltage, over-temperature, and short circuit protection. Operates at 220V, 50/60Hz and comes complete with AC power cord.
List price. Volume pricing available.
382276 is a Switching Mode DC Power Supply has an adjustable output of 0 to 30V/ 20A with two user-defined presets and one 13.8V/20A factory preset. Power supply features dual LED displays, high RFI immunity, excellent EMI, and a Thermostatic Control Fan. Additional features include over-voltage, over-temperature, and short circuit protection. Operates at 220V, 50/60Hz and comes complete with AC power cord.
The Extech 382276 DC Power Supply 30V/20A Switching/220 VAC # 382276 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Line Current Regulation | 50mA min |
| Line Voltage Regulation | 20mV |
| Load Current Regulation | 100mA min |
| Load Voltage Regulation | 50mV |
| Output Current | 1 to 20A |
| Output Current Basic Accuracy | ±(0.5% of reading + 2 digits) |
| Output Current Max Resolution | 100mA |
| Output Voltage | 1 to 30V |
| Output Voltage Basic Accuracy | ±(0.5% of reading + 2 digits) |
| Output Voltage Max Resolution | 100mV |
| Ripple and Noise | <5mVrms |
| Certifications | CE |
| Dimensions | 7.9 × 3.5 × 8.5" (200 × 90 × 215mm) |
| Power | 230V, 50Hz/60Hz |
| Warranty | 2 years |
| Weight | 5.7lbs (2.6kg) |
