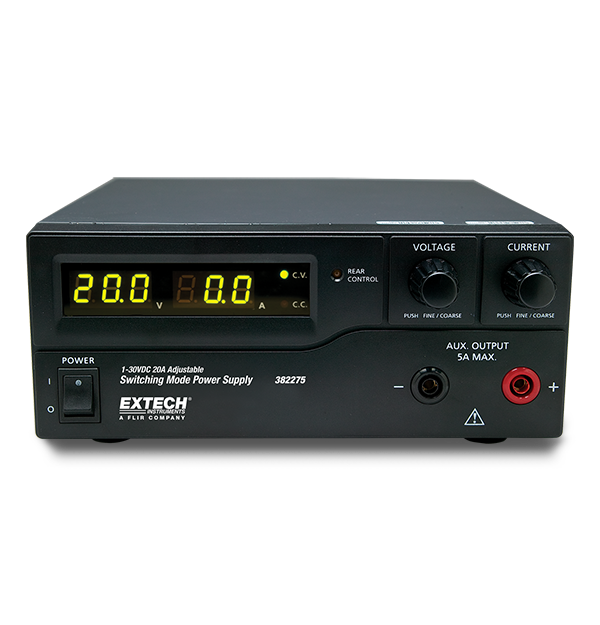

382275 DC Power Supply 30V/20A Switching/120 VAC
SKU: 382275
The Extech 382275 power supply is an easy-to-configure, highly stable, lab grade DC power supply with maximum output power of 600 Watts. The new DC power supply offers two degrees of control over both current and voltage outputs (course and fine). Output is adjustable from 0 to 30 Volts DC and 0 to 20 Amps with (0.1 Volts/Amps resolution). Dual green LED displays offer easy-to-read, high contrast readouts of voltage and current values. The 382275 offers four operating modes: normal mode, with values controlled by front-panel knobs; preset mode, which offers three popular voltage presets at 20 Amps: 5.0 Volts, 13.8 Volts, and 25 Volts; set mode, with three user-customizable presets; and remote control mode, where the user can remotely adjust output power on/off, voltage and current. Other features include automatic constant current and voltage, high RFI immunity, excellent EMI, a thermostat-controlled variable speed fan, as well as over-voltage, over-temperature, and short circuit protection. The 382275 offers a compact, low profile design and small footprint without compromising output noise and transient response factors. Complete with power cord.
List price. Volume pricing available.
The Extech 382275 power supply is an easy-to-configure, highly stable, lab grade DC power supply with maximum output power of 600 Watts. The new DC power supply offers two degrees of control over both current and voltage outputs (course and fine). Output is adjustable from 0 to 30 Volts DC and 0 to 20 Amps with (0.1 Volts/Amps resolution). Dual green LED displays offer easy-to-read, high contrast readouts of voltage and current values. The 382275 offers four operating modes: normal mode, with values controlled by front-panel knobs; preset mode, which offers three popular voltage presets at 20 Amps: 5.0 Volts, 13.8 Volts, and 25 Volts; set mode, with three user-customizable presets; and remote control mode, where the user can remotely adjust output power on/off, voltage and current. Other features include automatic constant current and voltage, high RFI immunity, excellent EMI, a thermostat-controlled variable speed fan, as well as over-voltage, over-temperature, and short circuit protection. The 382275 offers a compact, low profile design and small footprint without compromising output noise and transient response factors. Complete with power cord.
The Extech 382275 DC Power Supply 30V/20A Switching/120 VAC # 382275 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Line Current Regulation | 50mA min |
| Line Voltage Regulation | 20mV |
| Load Current Regulation | 100mA min |
| Load Voltage Regulation | 50mV |
| Output Current | 1 to 20A |
| Output Current Basic Accuracy | ±(0.5% of reading + 2 digits) |
| Output Current Max Resolution | 100mA |
| Output Voltage | 1 to 30V |
| Output Voltage Basic Accuracy | ±(0.5% of reading + 2 digits) |
| Output Voltage Max Resolution | 100mV |
| Ripple and Noise | <5mVrms |
| Certifications | CE |
| Dimensions | 7.9 × 3.5 × 8.5" (200 × 90 × 215mm) |
| Power | 120VAC, 50Hz/60Hz |
| Warranty | 2 years |
| Weight | 5.7lbs (2.6kg) |
Related Products
382200 Power Supply 0 to 30V
Constant Voltage/Current digital DC power supply with dual LCD

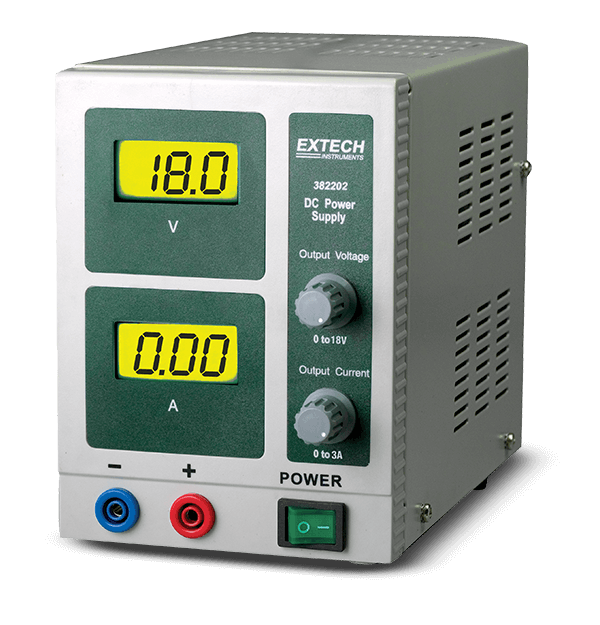

382202 Power Supply 0 to 18V
The Extech 382202 is a DC Power Supply which provides an adjustable 0 V to 30 V and 0 A to 1 A output. It features a dual backlit LCD display for current and voltage as well as short circuit and overload protection. Operates from 120 VAC ± 10%/60 Hz power source. Banana plug outputs. Complete with power cord.

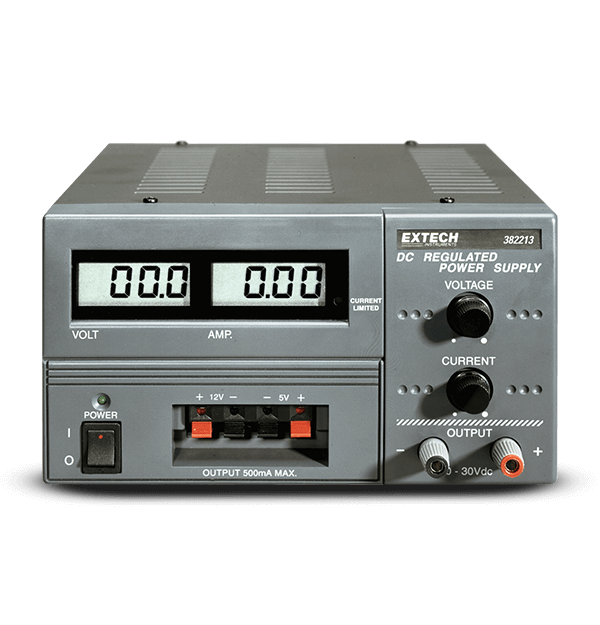

382213 Digital DC Power Supply (EP30
Ideal for a wide range of applications including bench testing, field service, hobby, and telecommunication equipment, the solid state, compact Extech 382213 Digital Triple Output DC Power Supply delivers clean, reliable power while protecting itself and any device under test (DUT) from damage. It offers three choices of power output: adjustable 0 to 30 Volt, 0 to 3 Amp, plus fixed 5 and 12 Volt. Featuring a digital LCD display, the 382213 also includes overload and short circuit protection, constant voltage/current, easy snap terminals for 5 and 12 Volt outputs, and a current-limited front panel LED indicator. It complete with a power cord.

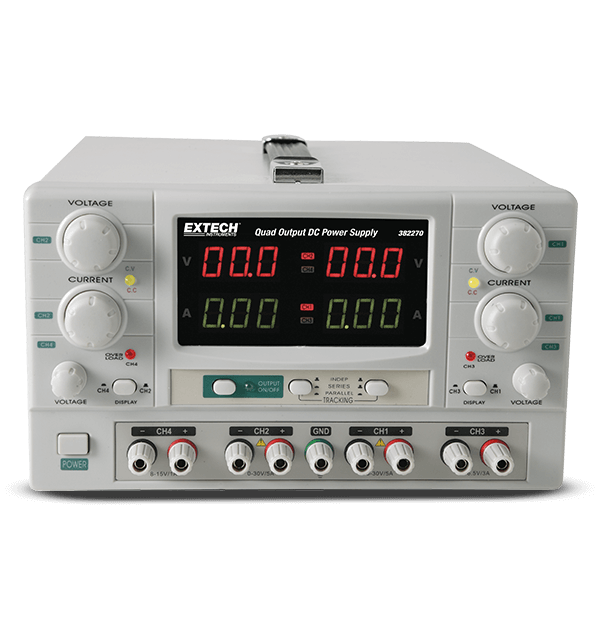

382270 DC Power Supply, Quad Output
