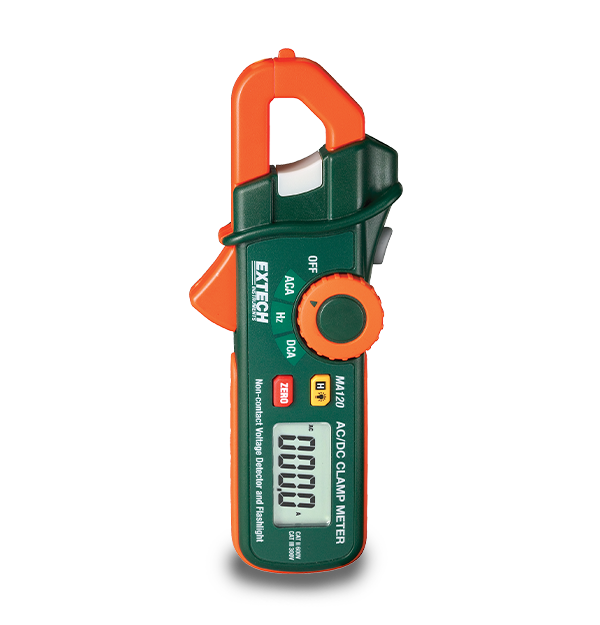

MA120 Clamp Meter, Mini, AC/DC w/Ncv/flashlight
SKU: MA120
The MA120 is a 200 Amp AC/DC mini clamp meter with built-in AC voltage detector and built in LED flashlight. The meter measures Frequency up to 1 kHz with 0.01Hz resolution, auto ranges with auto power off and data hold functions. Complete with a year warranty, 2 AAA batteries and soft case.
List price. Volume pricing available.
The MA120 is a 200 Amp AC/DC mini clamp meter with built-in AC voltage detector and built in LED flashlight. The meter measures Frequency up to 1 kHz with 0.01Hz resolution, auto ranges with auto power off and data hold functions. Complete with a year warranty, 2 AAA batteries and soft case.
The Extech MA120 Clamp Meter, Mini, AC/DC w/Ncv/flashlight # MA120 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| AC Current | 200A |
| AC Current Basic Accuracy | ±3.0% |
| AC Current Max Resolution | 100mA |
| DC Current | 200A |
| DC Current Basic Accuracy | ±3% |
| DC Current Max Resolution | 0.1A |
| Frequency | 1kHz |
| Frequency Max Resolution | 0.01Hz |
| Jaw Size | 0.7" (18mm), conductors up to 300MCM |
| Non-Contact Voltage (NCV) Detector | 120/240VAC |
| Certifications | CE |
| Dimensions | 6.5 × 2.6 × 1.3" (164 × 65 × 32mm) |
| Display | 2000-count segment LCD with backlighting |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATII - 600V, CATII - 300V |
| Warranty | 2 years |
| Weight | 6.2oz (176g) |
Related Products

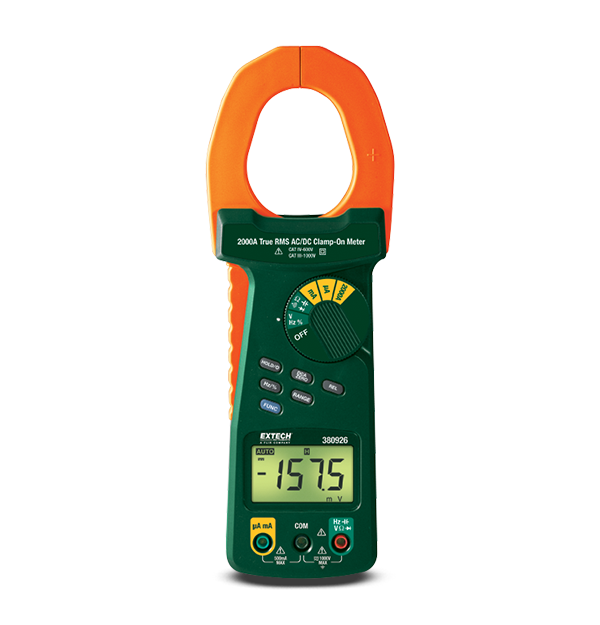

380926 Clamp Meter + DMM, 2000A, AC/DC, TRMS
The Extech 380926 is a category IV, 2000-Amp, TRMS AC/DC clamp meter with a rugged 2 in. jaw to accommodate two 500 MCM cables. A built-in full-function DMM can measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, diode and continuity. Measurements are displayed on the large 4000 count backlit display for easy viewing in dimly lit areas. Additional features include DCA push button zero, Data Hold, and Relative function. Complete with test leads and 9V battery.
380941 Clamp Meter+ DMM, Mini 200A AC/DC
The compact Extech 380941 is a 200 Amp mini AC/DC clamp meter with a small diameter jaw designed to reach in small areas while providing 10mA resolution (DC) and very low-current sensitivity. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as home electrical, fleet maintenance, marine, and motorcycle repairs. The 380941 has a CAT III 300-Volt safety rating and a one year warranty. Comes with batteries and manual.

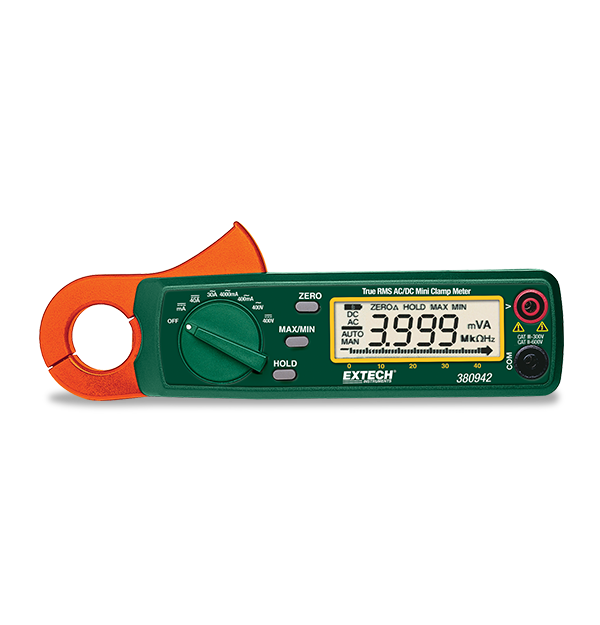

380942 Clamp Meter+ DMM, Mini 30A AC/DC, TRMS
The compact Extech 380942 is a 30 Amp mini AC/DC clamp meter. The clamp meter has a remarkable 0.1mA resolution (AC), very low-current sensitivity, and a small diameter jaw designed to reach into small areas. The 30 Amp range with 0.1mA (AC) and 1mA (DC) resolution is optimized for finding problems where very low current variances would be missed by standard clamp meters. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as residential electrical, fleet maintenance, marine, and motorcycle repairs. This CAT III-rated True RMS mini clamp meter comes with test leads, 2 AA batteries, soft carrying case, and user manual.

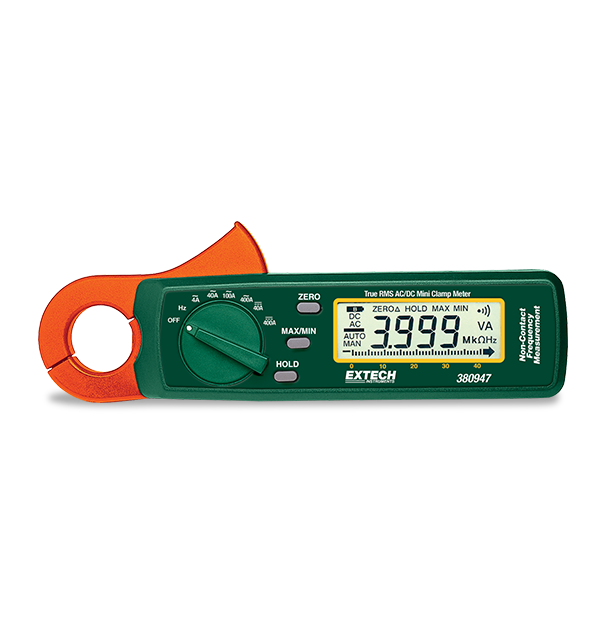

380947 Clamp Meter 400A AC/DC, TRMS, Freq
