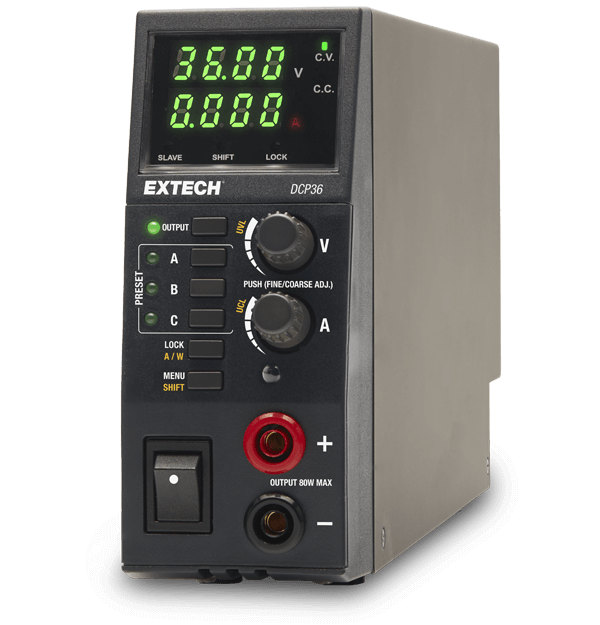

DCP36 80W Switching Mode DC Power Supply
SKU: DCP36
Extech’s DCP36 power supply has 80W constant power topology and has autoranging Voltage and Current output. This compact and lightweight unit provides easy portability, and is ideal for tight workbenches with limited space. It features 4-Digit LED displays, 3-programmable presets, front/rear output terminals, and remote sensing for accurate applied voltage at load point.
List price. Volume pricing available.
Extech’s DCP36 power supply has 80W constant power topology and has autoranging Voltage and Current output. This compact and lightweight unit provides easy portability, and is ideal for tight workbenches with limited space. It features 4-Digit LED displays, 3-programmable presets, front/rear output terminals, and remote sensing for accurate applied voltage at load point.
The Extech DCP36 80W Switching Mode DC Power Supply # DCP36 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Line Current Regulation | ≤10mA |
| Line Voltage Regulation | ≤4mV |
| Load Current Regulation | ≤10mA |
| Load Voltage Regulation | ≤30mV |
| Output Current | 0 to 5A; Autoranging with 80W maximum output power (E x I = ≤80W) |
| Output Current Basic Accuracy | ±(0.5% + 5 counts) |
| Output Voltage | 0.5 to 36V |
| Output Voltage Basic Accuracy | ±(0.5% + 5 counts) |
| Ripple and Noise | ≤35m Vp-p |
| Certifications | CE |
| Dimensions | 13 × 5 × 2" (330 × 127 × 53.5 mm) |
| Warranty | 2 years |
| Weight | 4.2 lbs (1.9 kg) |
