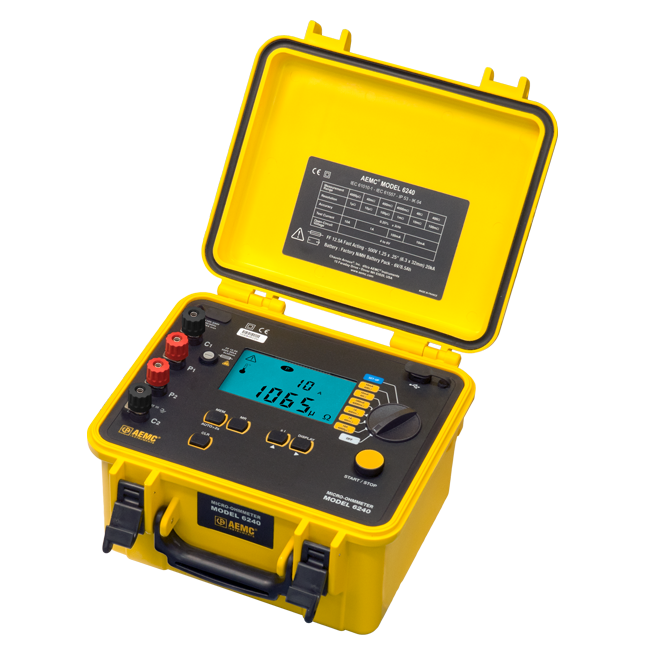

Micro-Ohmmeter Model 6240 (10A, Instantaneous, Continuous, Multiple Test, Includes 10A Kelvin Clips, DataView Kelvin Probes & Software)

The 10A Micro-Ohmmeter Model 6240 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method of testing, the Model 6240 Micro-Ohmmeter accurately measures very low resistance within 0.25%. Resistance measurements are automatically calculated from 5 µΩ to 400 Ω with resolutions down to 1 µΩ. The Model 6240 has selectable test currents of 10 A, 1 A, 100 mA and 10 mA and includes a polarity reversal function. The Model 6240 is designed to conduct tests on both resistive and inductive material. Up to 99 measurements can be stored and printed directly to a printer or from a PC. DataView (included) allows you to configure the instrument, temperature-compensate the test results, store data, and print reports.

The AEMC Instruments Micro-Ohmmeter Model 6240 (10A, Instantaneous, Continuous, Multiple Test, Includes 10A Kelvin Clips, DataView Kelvin Probes & Software) # 6240 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
