iGaging iP54 Digital 3-Point Inside Micrometer with Setting Ring 30-40mm/1.20-1.60" /0.001mm/0.00005"
iGaging

iP54 Digital 3-Point Inside Micrometer with Setting Ring 30-40mm/1.20-1.60" /0.001mm/0.00005"

SKU: 35-3PT-3040-T

Contact us for pricing on this product.

Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

iP54 tri-point digital internal micrometer, 1.2-1.6"/30.48-40.64 mm range, 0.00005"/0.001 mm resolution, 0.00020" tolerance. Friction thimble, carbide contacts, SPC/USB data output; 1.5748" setting ring and wrench included.

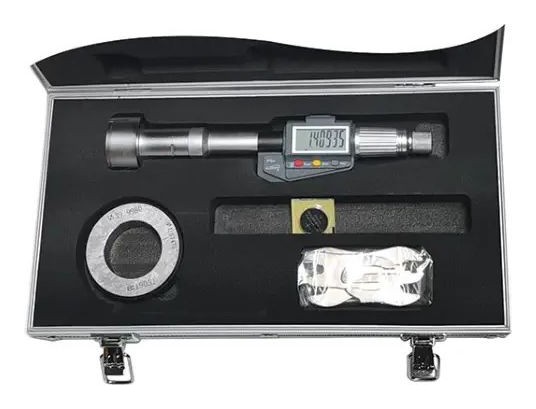

The iGaging 35-3PT-3040-T is an iP54 tri-point digital internal micrometer for 1.2-1.6"/30.48-40.64 mm bores, read on an extra-large LCD to 0.00005"/0.001 mm. It has a friction thimble and carbide contact points designed to measure near the bottom of blind holes, and comes with a 1.5748" setting ring and wrench.

Features

  • iP54 protection: moisture and dust resistant
  • Extra-large LCD
  • Inch/metric conversion
  • Resolution: 0.00005"/0.001 mm
  • Carbide measuring surfaces
  • Contact points designed to measure near the bottom of blind holes
  • Friction thimble
  • SPC/USB data output
  • Setting ring and wrench included
  • 3V CR2032 battery included
  • Supplied in a protective case
  • Extension rod: 35-3PT-E200 (6")

Data output accessories

  • 100-700-USB SPC/USB cable data kit
  • 35-WL-CAD wireless output kit
  • 35-BT-28 Smart Wireless kit

The iGaging iP54 Digital 3-Point Inside Micrometer with Setting Ring 30-40mm/1.20-1.60" /0.001mm/0.00005" 35-3PT-3040-T is manufactured by iGaging. Valley Instrument Service is an authorized iGaging dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
