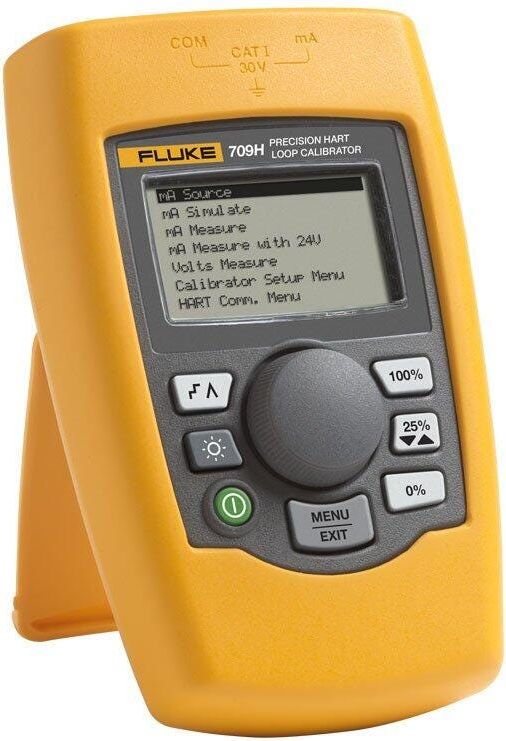

Data Logging Software & Cable, FLUKE-709H Loop Calibrator
SKU: 709H/TRACK
Data Logging Software & Cable, FLUKE-709H Loop Calibrator
List price. Volume pricing available.
The Fluke Data Logging Software & Cable, FLUKE-709H Loop Calibrator # 709H/TRACK is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Detailed Specifications |
| Functions | mA source, mA simulate, mA read, mA read/loop power, and volts read. |
| Ranges | mA (0 to 24 mA) and Volts (0 to 30 V DC) |
| Resolution | 1 µA on mA ranges and 1 mV on voltage range |
| Accuracy | 0.01% ± 2 counts, all ranges (@23° ± 5°C) |
| Operating temperature range | -10°C to 55°C (14°F to 131°F) |
| Humidity range | 10 to 95% non-condensing |
| Stability | 20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C |
| Display | 128 x 64 pixels, LCD Graphic w/backlight, .34 high digits |
| Power | 6 AAA alkaline |
| Battery life | 40 hours typical |
| Loop compliance voltage | 24 V DC @ 20mA |
| Over-voltage protection | 240 V AC |
| Overload current protection | 28 mA DC |
| EMC | EN61326 Annex A (Portable Instruments) |
| Dimensions (L x W x D) | 15 x 9 x 3 cm (6 x 3.6 x 1.3 in) |
| Weight | 0.3 kg (9.5 oz) |
| Included accessories | NIST traceable calibration certificate with data, batteries, test leads, and manual |
| Warranty | Three year |
Accessories, replacement sensors, and parts for this product family.
Related Products

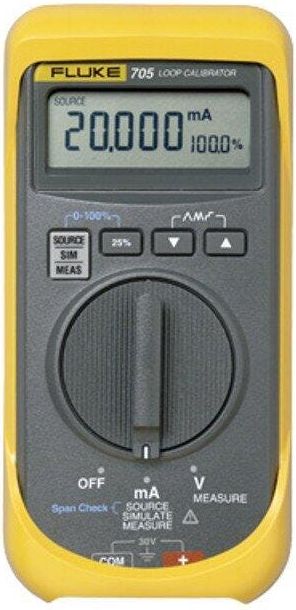

705 Loop Calibrator
The Fluke 705 Loop Calibrator is a cost-effective, integrated solution for calibration, repair, & maintenance of milliamp loops. Get specs & details here.

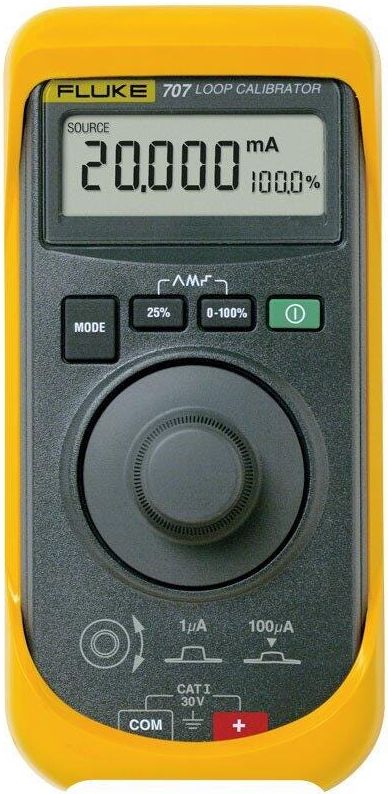

707 Loop Calibrator
The Fluke 707 Current Loop Calibrator delivers fast, one-handed, push-button loop checks. Get specs, reviews, & a free demo. Your solution awaits here.

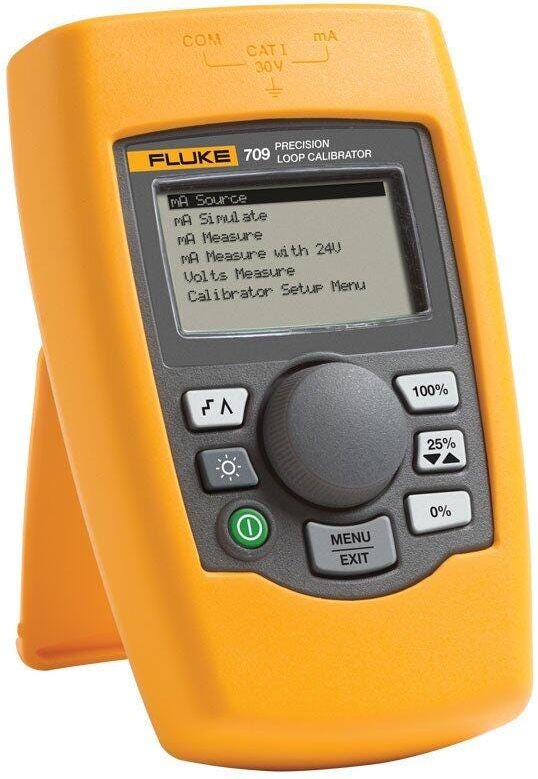

709 Loop Calibrator
