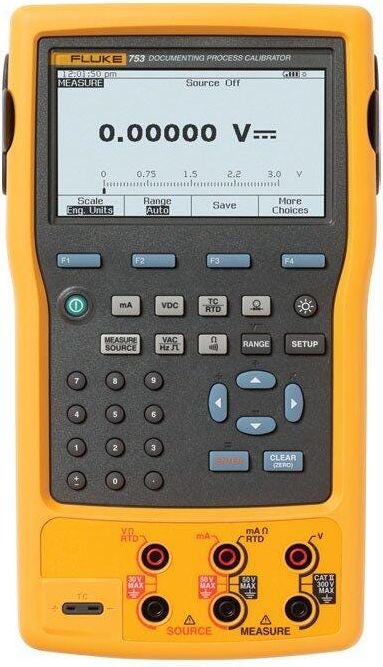

753 Documenting Process Calibrator, Non Bus

SKU: FLUKE-753

The Fluke 753 Multifunction Documenting Process Calibrator sources, simulates, & measures pressure, temperature, & electrical in one rugged, handheld tool.

$9,220.55

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

The Fluke 753 Multifunction Documenting Process Calibrator sources, simulates, & measures pressure, temperature, & electrical in one rugged, handheld tool.

Key Features

Full-featured documenting process calibrator for calibrating and troubleshooting
Measures volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
Sources and simulate volts, mA, pressure, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
Powers transmitters during test using loop supply with simultaneous mA measurement

The Fluke 753 Documenting Process Calibrator, Non Bus # FLUKE-753 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

General	Measurement Accuracy
Range /Resolution	1 Year
100.000 mV	0.02% + 0.005 mV
3.00000 V	0.02% + 0.00005 V
30.0000 V	0.02% + 0.0005 V
300.00 V	0.05% + 0.05 V
3.000 V (40 Hz to 500 Hz) / 0.001 V	0.5% + 0.002 V
30.00 V (40 Hz to 500 Hz) / 0.01 V	0.5% + 0.02 V
300.0 V (40 Hz to 500 Hz) / 0.1 V	0.5% + 0.2 V
30.000 mA	0.01% + 5 uA
110.00 mA	0.01% + 20 uA
10.000 Ω	0.05% + 50 mΩ
100.00 Ω	0.05% + 50 mΩ
1.0000 kΩ	0.05% + 500 mΩ
10.000 kΩ	0.1% + 10 Ω
Frequency	Source Accuracy
1.00000 V	0.01% + 0.00005 V
15.0000 V	0.01% + 0.0005 V
22.000 mA (source)	0.01% + 0.003 mA
Current sink (simulate)	0.02% + 0.007 mA
Measure functions	Voltage, current, resistance, frequency, temperature, pressure
Reading rate	1, 2, 5, 10, 20, 30, or 60 readings/minute
Maximum record length	8000 readings (7980 for 30 or 60 readings/minute)
Source functions	Voltage, current, resistance, frequency, temperature
Rate	4 steps/second
Trip detect	Continuity or voltage (continuity detection not available when sourcing current)
Voltage	Selectable, 26 V
Accuracy	10%, 18 V minimum at 22 mA
Maximum current	25 mA, short circuit protected
Maximum input voltage	50 V DC
Manual step	Selectable step, change with arrow buttons
Autostep	Fully programmable for function, start delay, stepvalue, time per step, repeat
Step functions	Environmental Specifications
Operating temperature	-10°C to +50°C
Storage temperature	-20°C to +60°C
Dust/water resistance	Meets IP52, IEC 529
Operating altitude	3000 m above mean sea level (9842 ft)
Agency approvals	CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993
Size	136 x 245 x 63 mm (5.4 x 9.6 x 2.5 in)
Weight	1.2 kg (2.7 lb)
Batteries	Internal Battery Pack Li-ion: 7.2 V, 4400 mAh, 30 Wh
Battery life	> 8 hours typical
Battery replacement	Via snap-shut door without opening calibrator; no tools required
Side port connections	USB Connector to interface to your PC
Data storage capacity	1 week of calibration procedures results
90 day specifications	Typical 90 day measurement and source accuracy can be estimated by dividing the one year "% of reading" or "% of output" specifications by 2.
Degrees or % of reading - Type (α)	Range °C
100 Ω Pt (385)	-200 to 100100 to 800
200 Ω Pt (385)	-200 to 100100 to 630
500 Ω Pt (385)	-200 to 100100 to 630
1000 Ω Pt (385)	-200 to 100100 to 630
100 Ω Pt (3916)	-200 to 100100 to 630
100 Ω Pt (3926)	-200 to 100100 to 630
10 Ω Cu (427)	-100 to 260
120 Ω Ni (672)	-80 to 260
Source current	Source °C
1 mA	0.05°C0.0125% + 0.04°C
500 μA	0.06°C0.017% + 0.05°C
250 μA	0.06°C0.017% + 0.05°C
150 μA	0.06°C0.017% + 0.05°C
3 mA	0.2°C
Type	Source °C
-250 to -200	1.3
-200 to -100	0.5
-100 to 600	0.3
600 to 1000	0.4
-100 to 900	0.5
900 to 1300	0.6
-210 to -100	0.6
-100 to 800	0.3
800 to 1200	0.5
-100 to 400	0.3
400 to 1200	0.5
1200 to 1372	0.7
-200 to 0	0.6
0 to 400	0.3
600 to 800	1.3
800 to 1000	1.0
1000 to 1820	0.9
-20 to 0	2.3
0 to 100	1.5
100 to 1767	1.0
0 to 200	1.5
200 to 1400	0.9
1400 to 1767	1.1
0 to 800	0.6
1200 to 1800	1.1
1800 to 2316	2.0
800 to 900	0.5
0 to 600	0.3
0 to 1000	1.0
1000 to 2000	1.6
2000 to 2500	2.0
-200 to 300	0.2
300 to 800	0.4

This product is part of a family with 4 models. Select a model below to view details.

Model	Description	Batteries	Battery life	Battery replacement	150 μA	Price
FLUKE-753Current	The Fluke 753 Multifunction Documenting Process Calibrator sources, simulates, & measures pressure, temperature, & electrical in one rugged, handheld tool.	Internal Battery Pack Li-ion: 7.2 V, 4400 mAh, 30 Wh	> 8 hours typical	Via snap-shut door without opening calibrator; no tools required	0.06°C0.017% + 0.05°C	$9,220.55	Viewing
FLUKE-754	Calibrate, maintain, and troubleshoot HART and other instrumentation with the Fluke Calibration 754. Automate procedures and document results efficiently.	Internal Battery Pack Li-ion: 7.2V,4400mAh, 30 Wh	>8 hours typical	Replace without opening calibrator; no tools required	0.06 C0.017% + 0.05°C	$11,268.19	View Details →
FLUKE-754/750SW BU	Calibrate, maintain, and troubleshoot HART and other instrumentation with the Fluke Calibration 754. Automate procedures and document results efficiently.	—	—	—	—	$14,292.27	View Details →
FLUKE-754/154 BU	754/154 Bundle with Rugged Case	—	—	—	—	$14,292.27	View Details →
