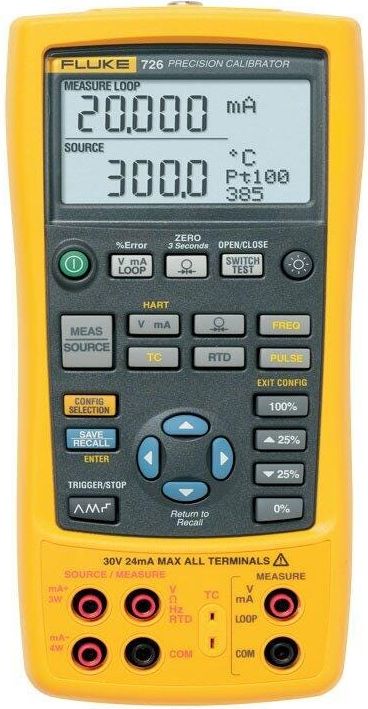

726 Calibrator with 1 Year Premium Care Standard
SKU: FLUKE-726/FPC
Fluke 726 is so user-friendly you may not need a manual. It offers best accuracy & performance in a handheld multifunction process calibrator. Get the specs.
List price. Volume pricing available.
Fluke 726 is so user-friendly you may not need a manual. It offers best accuracy & performance in a handheld multifunction process calibrator. Get the specs.
Key Features
- Precision multifunction, temp, frequency, voltage, and mA calibrator
- Calibrates thermocouples and RTD temperature instruments
- Stores up to eight calibration results in memory for analysis
- Built-in 24 V Loop Power Supply
The Fluke 726 Calibrator with 1 Year Premium Care Standard # FLUKE-726/FPC is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Measurement Accuracy |
| 30.000 V | 0.01% + 2 mV (upper display) |
| 20.000 V | 0.01% + 2 mV (lower display) |
| 90.00 mV | 0.01% + 10 μV |
| -10.00 mV to 75.00 mV | 0.025% + 1 count (via TC connector) |
| Current DC | 24.000 mA |
| Resistance | 0.0 to 4000.0 Ω |
| 2.0 to 1000.0 CPM | 0.05% + 0.1 cpm |
| 1.0 to 1000.0 Hz | 0.05% + 0.1 Hz |
| 1.00 to 15.00 kHz | 0.05% + 0.01 kHz |
| Sensitivity | 1 V peak-to-peak-minimum |
| Pressure | Accuracy from 0.025% of range using any of (50) 750P pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure. |
| Frequency | Source Accuracy |
| 100.00 mV | 0.01% + 10 μV |
| 24.000 mA (Source) | 0.01% + 2 μA |
| 24.000 mA (Simulate) | 0.01% + 2 μA |
| Range, accuracy (percent of reading + floor) and excitation current | 5 to 400 Ω, 0.015% + 0.1 Ω, 0.1 to 0.5 mA |
| 1.0 to 10.0 kHz | 0.25% |
| 10.0 to 15.0 kHz | 0.5% |
| Waveform | 5 V p-p squarewave, -0.1 V offset |
| Cu10 | 1.8°C |
| NI-120 | 0.15°C |
| PT-100 (385) | 0.45°C |
| PT-100 (392) | 0.35°C |
| PT-100 (391-JIS) | 0.35°C |
| PT-200 (385) | 0.95°C |
| PT-500 (385) | 0.55°C |
| PT-1000 (385) | 0.35°C |
| RTD Resolution | 0.01°C (0.01°F) |
| Cu10.01 C | 0.1°C (0.1°F) |
| J | 0.4°C |
| K | 0.5°C |
| T | 0.4°C |
| E | 0.4°C |
| R | 1.4°C |
| S | 1.4°C |
| B | 1.4°C |
| L | 0.45°C |
| U | 0.45°C |
| N | 0.6°C |
| XK | 0.4°C |
| BP | 1.1°C |
| TC Resolution | J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F |
| Measure and source accuracy | Specifications |
| Source functions | Voltage, current, resistance, frequency, temperature |
| Ramps | Slow ramp, Fast ramp, 25% step-ramp |
| Voltage | 24 V |
| Accuracy | 10% |
| Maximum current | 22 mA, short circuit protected |
| Steps | 25% of range, 100% of range |
| Step functions | Environmental Specifications |
| Operating temperature | -10°C to +55°C |
| Storage temperature | -20°C to +71°C |
| Operating altitude | 3000 m |
| Agency approvals | EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992 |
| Size | 200 x 96 x 47 mm (7.9 x 3.8 x 1.9 in) |
| Weight | 650 g (23 oz) |
| Batteries | 4 AA alkaline batteries |
| Battery replacement | Separate battery compartment, accessible without breaking calibration seal |
| Side port connections | Pressure module connector, also used for remote real-time programming |
Accessories, replacement sensors, and parts for this product family.
| Model | Price | |
|---|---|---|
FPC1S-FLUKE72X-1 | $540.00 | View Details → |
FPC1S-FLUKE75X-1 | $1,104.00 | View Details → |
FPC3S-FLUKE72X-1 | $1,476.00 | View Details → |
FPC3S-FLUKE75X-1 | $3,024.00 | View Details → |
FLUKE-725/FPC | $4,865.71 | View Details → |
FLUKE-726/FPCCurrent | $6,726.92 | Viewing |
FLUKE-754/FPC | $12,359.99 | View Details → |
