Ametek PMT

Pneumatic Elements & Diaphragms

30 products

Starting at $501

Pneumatic Pressure Instruments

1 product

View product

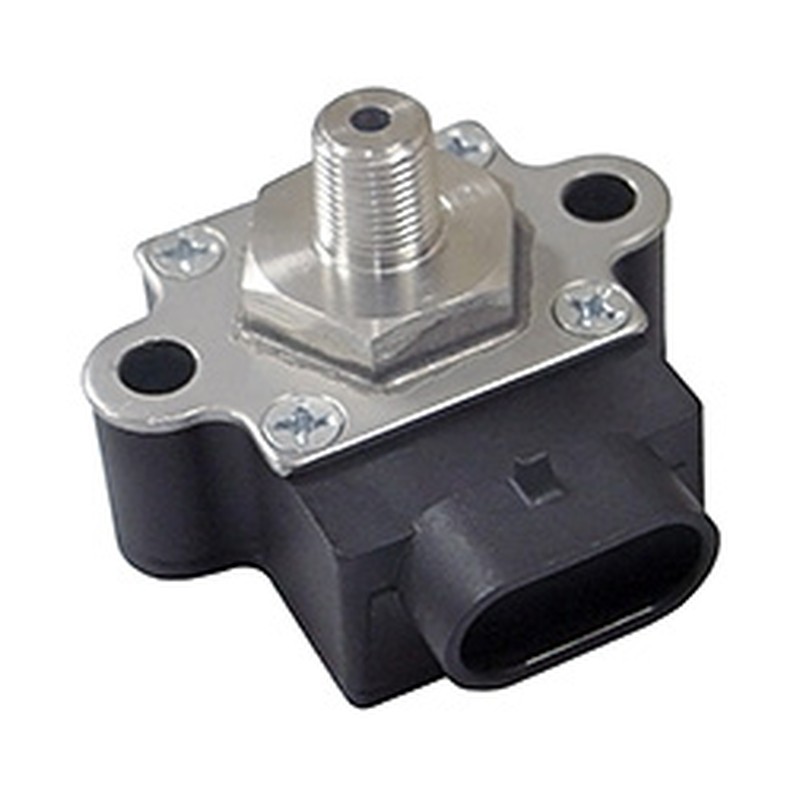

Pressure Transducers

3 products

Starting at $305

Pressure Transmitters

5 products

Starting at $546

Spare Parts & Accessories

8 products

Starting at $1,361

View product

Submersible Level Transmitters

5 products

Starting at $411

Featured Ametek PMT Products

Popular instruments and equipment

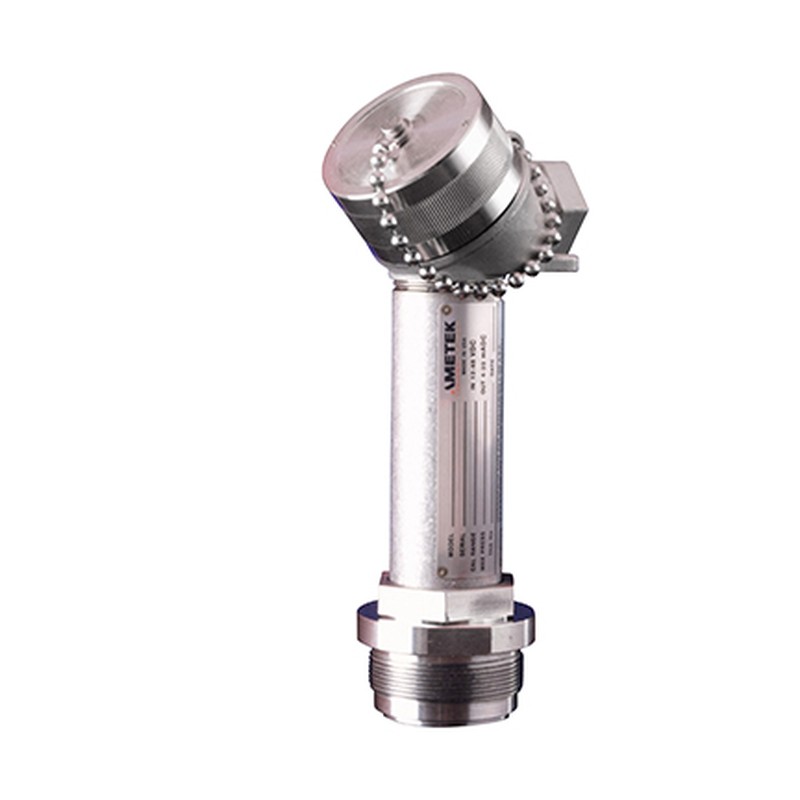

Model 88F Flushmount Pressure Transmitter (Configurable)

Flush-mount hazardous-location pressure transmitter — the diaphragm sits flush with the process connection to prevent particulate buildup, making it suited to viscous or solids-bearing media. 316 stainless steel housing with a Hastelloy C diaphragm, 4–20 mA output, ±0.25% of calibrated span. FM and CSA explosion-proof and intrinsically safe. Calibrated range bands from 3 PSI to 300 PSI. Configure range, fill material, agency approval, and coupling.

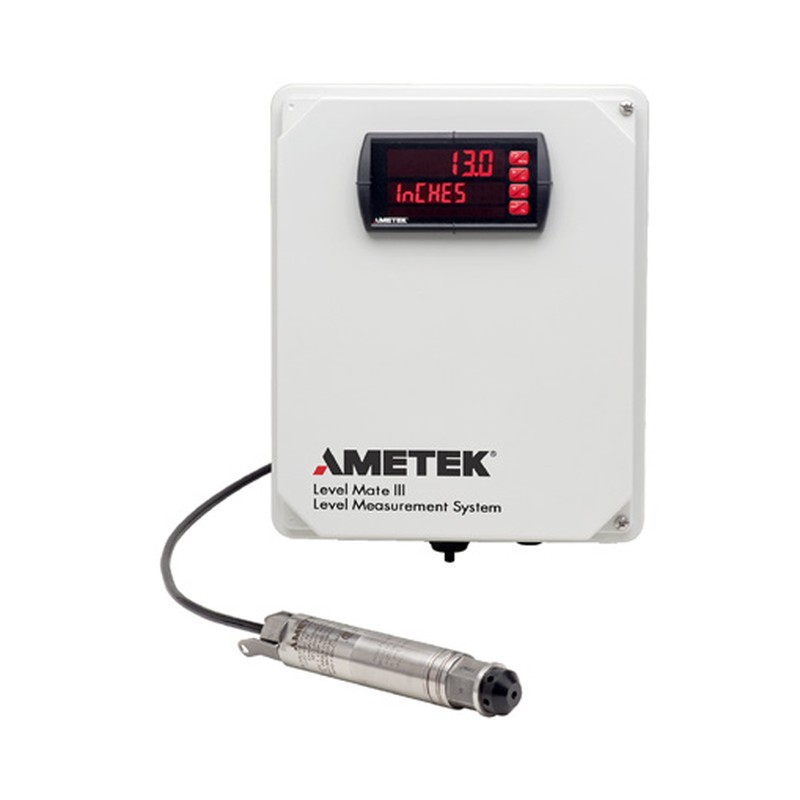

Level Mate III Liquid-Level Measurement System (Configurable)

Complete liquid-level measurement system — a 316 stainless steel snubnose AMETEK submersible transmitter paired with a fully calibrated, microprocessor-based meter/controller in a NEMA 4X housing, plus factory-installed waterproof cable. Choose the sensor model (575, 575 PB, 675 PB, 375, SST, or SDT), meter output (two or four relays, optional 4–20 mA), and lightning protection. The specific sensor range is included at no charge and cable length is quoted separately. Configure sensor, output, and lightning protection.

Model 88C Electronic Pressure Transmitter (Configurable)

Welded 316 stainless steel hazardous-location pressure transmitter with a 4–20 mA output and ±0.25% of calibrated span accuracy (linearity, hysteresis, repeatability). FM and CSA explosion-proof and intrinsically safe, NACE-compliant, with a 5:1 field-adjustable zero/span turndown. Calibrated range bands from 3 PSI to 5000 PSI. Configure range band, wetted material, and output to build your part number.

Model 851 Electronic Pressure Transmitter (Configurable)

FM and CSA explosion-proof and intrinsically safe pressure transmitter with a bench-adjustable 5:1 zero/span turndown and a double-O-ring, clean-in-place weatherproof design. 4–20 mA output, ±0.25% of calibrated span, 316 stainless steel construction (Hastelloy C flush diaphragm for viscous or solids-bearing media), NACE-compliant. Ranges 3 PSI to 5000 PSI. Used in refineries, pipelines, petrochemical plants, pulp & paper, and water/wastewater. Configure connection, type, range, output, diaphragm, fill, approval, and coupling.

Model 675 Shark Cage Submersible Level Transmitter (Configurable)

Shark Cage submersible level transmitter — a rugged flush-diaphragm sensor inside a protective cage for debris-laden or high-flow service such as lift stations, storm water, and industrial sumps. CSA intrinsically safe. 12–28 VDC / 4–20 mA output, ranges 0–6 to 0–60 PSI, 316 stainless steel diaphragm, and vented polyurethane or Teflon cable. Cable length is specified separately. Configure pressure range and electrical connection.

Model 575 Submersible Level Transmitter (Configurable)

Submersible pressure transmitter for liquid-level measurement in tanks, wells, sumps, and wastewater. 12–28 VDC / 4–20 mA output, ranges 0–6 to 0–300 PSI (to ~692 ft of water), with a choice of snubnose, stainless snubnose, or protected flush-cage sensing port; 316 stainless steel or Hastelloy C diaphragm; and polyurethane or Teflon cable. NSF-certified and CSA intrinsically safe versions available. Cable length is specified separately. Configure sensing port, range, electrical connection, diaphragm, and fill.
