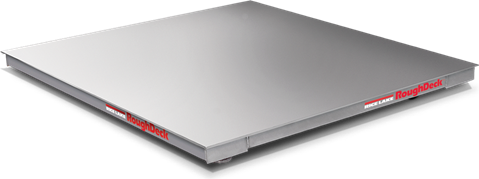

Scale, Floor Roughdeck 4x4HPHE-5K 4ftx4ftx3-1/2 5,000 lb 20ft NTEP III SST HE With Remote Junction Box
SKU: 18682
- The RoughDeck HE is a Hostile Environment, Stainless Steel Floor Scale Designed Specifically for Corrosion Resistance and Long Life in Demanding Washdown Applications. Design Features Include a Six-Inch, 304 Stainless Steel Channel Frame and Smooth Top Plate. The RoughDeck HE Comes Standard with Four Stainless Steel, IP69K Hermetically Sealed, Shear Beam Load Cells, Four Stainless Steel Support Feet, a Stainless Steel NEMA Type 4X TuffSeal Summing Junction Box and EL147HE Hostile Environment Load Cell Cable.
- Rugged Washdown Design
- 304 Stainless Steel Construction
- Rigid 304 Stainless Steel Channel Frame
- Four Stainless Steel, Hermetically Sealed, IP69K Shear Beam Load Cells
- 20 ft of SURVIVOR EL147HE Hostile Environment Load Cell Cable
- Load Cells Protected on All Four Sides
- Smooth Stainless Steel Deck
- Remote Mounted Junction Box
List price. Volume pricing available.
The RoughDeck HE is a hostile environment, stainless steel floor scale designed specifically for corrosion resistance and long life in demanding washdown applications. Design features include a six-inch, 304 stainless steel channel frame and smooth top plate. The RoughDeck HE comes standard with four stainless steel, IP69K hermetically sealed, shear beam load cells, four stainless steel support feet, a stainless steel NEMA Type 4X TuffSeal summing junction box and EL147HE hostile environment load cell cable.
The Rice Lake Scale, Floor Roughdeck 4x4HPHE-5K 4ftx4ftx3-1/2 5,000 lb 20ft NTEP III SST HE With Remote Junction Box # 18682 is manufactured by Rice Lake. Valley Instrument Service is an authorized Rice Lake dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681This product is part of a family with 20 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
193293 | $3,640.00 | View Details → |
18680 | $3,640.00 | View Details → |
193294 | $4,150.00 | View Details → |
18681 | $4,150.00 | View Details → |
193296 | $5,800.00 | View Details → |
18682Current | $5,800.00 | Viewing |
193298 | $6,580.00 | View Details → |
18684 | $6,580.00 | View Details → |
193297 | $8,260.00 | View Details → |
18683 | $8,260.00 | View Details → |
