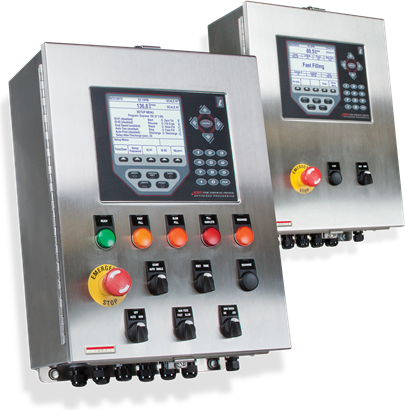

Literature, Manual 920i Bulkweigh Flexweigh 107-108-109 Bulkweigher Operation Manual
SKU: 151848
- Wall Mount Stainless Steel Enclosure
- Application Program 107, 108, 109
- Front Panel Switches E-Stop, Start/Resume, End Cycle, Ship/Recv (only 109)
- Softkeys for Presets, ID1 and ID2
- Accumulating Weight Streaming
- Fill and Discharge Sequence Controls
- Fill and Discharge Gate Monitoring
- Printer Online Checking
- Weigh and Surge Hopper Overfill Monitoring
- Transmitted Audit Trail
- Digital I/O Board
- Relay Rack and SSR Relay Outputs
List price. Volume pricing available.
- Wall Mount Stainless Steel Enclosure
- Application Program 107, 108, 109
- Front Panel Switches E-Stop, Start/Resume, End Cycle, Ship/Recv (only 109)
- Softkeys for Presets, ID1 and ID2
- Accumulating Weight Streaming
- Fill and Discharge Sequence Controls
- Fill and Discharge Gate Monitoring
- Printer Online Checking
- Weigh and Surge Hopper Overfill Monitoring
- Transmitted Audit Trail
- Digital I/O Board
- Relay Rack and SSR Relay Outputs
The Rice Lake Literature, Manual 920i Bulkweigh Flexweigh 107-108-109 Bulkweigher Operation Manual # 151848 is manufactured by Rice Lake. Valley Instrument Service is an authorized Rice Lake dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681This product is part of a family with 5 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
207906 | $6,795.00 | View Details → |
207907 | $6,795.00 | View Details → |
207908 | $7,145.00 | View Details → |
207909 | $6,445.00 | View Details → |
207910 | $6,845.00 | View Details → |
