Underground Utility Locator Kit with Clamp
SKU: UAT-620

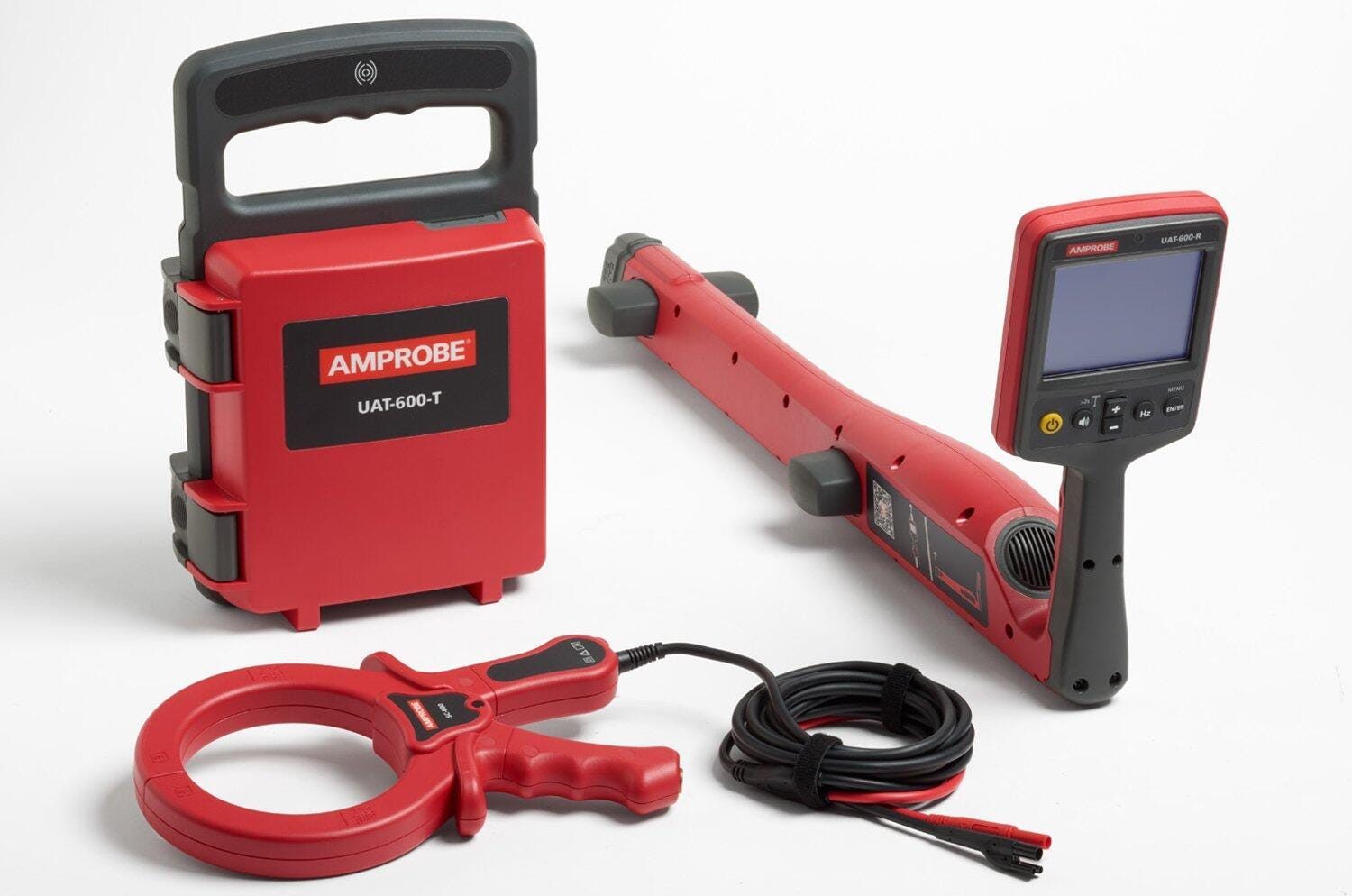

The Amprobe UAT-620 Underground Utilities Locator Kit comes with a transmitter, receiver, signal clamp, test lead kit, batteries and additional fuses, all in a mobile, protective duffle bag.
List price. Volume pricing available.
The Amprobe UAT-620 Underground Utilities Locator Kit comes with a transmitter, receiver, signal clamp, test lead kit, batteries and additional fuses, all in a mobile, protective duffle bag.
Key Features
- Rated CAT IV 600 V, ensuring safety when working with energized cables
- Multiple tracing modes allow you to locate and trace energized and de-energized utilities
- Depth measurement up to 20 ft
- Receiver’s high-contrast display allows for clear viewing in full sunlight and features an automatic backlight for shaded and dark area
The Amprobe Underground Utility Locator Kit with Clamp # UAT-620 is manufactured by Amprobe. Valley Instrument Service is an authorized Amprobe dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Measurement category | CAT IV 600 V |
| Operating voltage/current | 0 to 600 V |
| Operating frequency/tracing modes | Active tracing: 33 kHz and 8 kHzPassive tracing: 50/60 Hz and Radio |
| Locating modes | Peak and Null |
| Depth measurement and accuracy | Up to 20 ft4 in to 10 ft: pm; 3 %10 ft to 20 ft: pm; 5 % |
| Display backlight | Automatic |
| Audio indication | Increasing closer to the signal |
| Transmitting mode power output | - |
| Output voltage | - |
| Output current | - |
| Mains voltage measurement | - |
| Resistance measurement (De-energized circuit) | - |
| Output hazardous voltage warning | - |
| Mains hazardous voltage warning | - |
| Sensitivity adjustment (gain control) | Yes |
| Sensitivity at 1 m (typical) | Power: 2 mARadio: 20 μA8 kHz: 5 μA33 kHz: 5 μA |
| Display | 4.3 in, 320 x 240 BW outdoor LCD display with auto backlight |
| Update rate | Instantaneous |
| Operating temperature and humidity | -4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH |
| Storage temperature and humidity | -40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH |
| Operating altitude | < 6561 ft (< 2000 m) |
| Water and dust resistance | IP54 |
| Drop proof | 3.28 ft (1 m) |
| Power supply | (6) 1.5 V AA alkaline batteries |
| Auto power off | 15 minutes idle |
| Battery life | Approx. 35 hours at 70 °F (21 °C) (Typical) |
| Overload protection | - |
| Safety compliance | IEC 61010-1, IEC 61010-2-033CSA/UL 61010-1, CSA/UL 61010-2-033 |
| Size (H x W x L) | Approx. 11.9 x 4.7 x 30.7 in (302 x 120 x 779 mm) |
| Weight | Approx. 4.2 lb (1.9 kg) (batteries installed) |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
UAT-505 | $5,619.67 | View Details → |
UAT-620Current | $7,185.99 | Viewing |
