Switching Power Supply Module
SKU: IM82-24-5.0
Switching Power Supply Module
$291.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Switching Power Supply Module
- Output voltage adjustable 22.5…28.5 VDC
- Nominal current 5 A
- Single/parallel operating mode
- Surge protection
- Removable terminals
- Universal operating voltage
- Mains failure bridging up to 30 ms
- High efficiency
- Natural air cooling
- Power-good relay
- cULus listed
- Safety extra-low voltage SELV IEC/EN 60950
- SEMI-F47
The Turck Switching Power Supply Module # IM82-24-5.0 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101262827 |
| eCl@ss-Code (V5.1.4) | 27230209 -/- Current supply, voltage |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 978 g |
| Power supply | 230 VUC |
| Nominal output voltage | 24 V |
| Nominal current | 5 A |
| Internal fuse | T 3.15 A/250 VAC |
| Parallel mode | yes, switchover initiated by a switch, max. 3 devices each with 90 % load current |
| Power Good Output | yes |
| Electrical connection | Screw terminals |

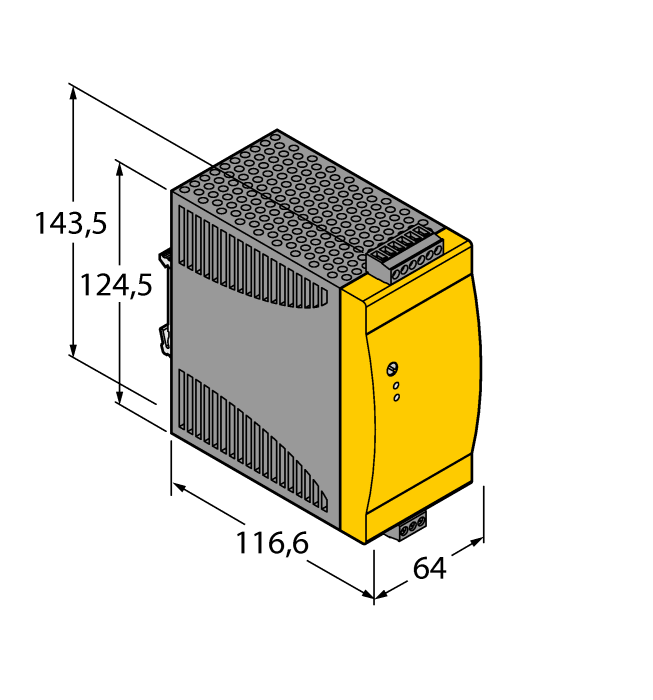

| Dimensions | 143.5 x 64 x 116.6 mm |
| Protection class | IP20 |
