Switching Power Supply Module
SKU: IM82-24-2.5
Switching Power Supply Module
$206.60
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Switching Power Supply Module
- Output voltage adjustable 24…28 VDC
- Nominal current 2.5 A
- Single/parallel operating mode
- Surge protection
- Universal operating voltage
- Mains failure bridging up to 30 ms
- High efficiency
- Natural air cooling
- Safety extra-low voltage SELV IEC/EN 60950
The Turck Switching Power Supply Module # IM82-24-2.5 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101262810 |
| eCl@ss-Code (V5.1.4) | 27230209 -/- Current supply, voltage |
| Customs tariff number | 9026204000 |
| Country of origin | CH |
| Weight | 401 g |
| Power supply | 230 VUC |
| Nominal output voltage | 24 V |
| Nominal current | 2.5 A |
| Internal fuse | T 2 A/250 VAC |
| Parallel mode | yes, via diodes |
| Power Good Output | yes |
| Electrical connection | Screw terminals |

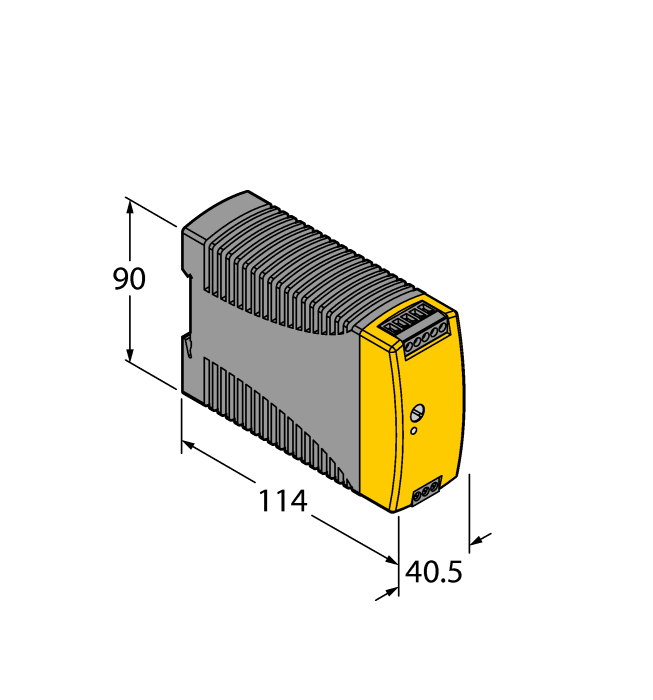

| Dimensions | 90 x 40.5 x 114 mm |
| Protection class | IP20 |
