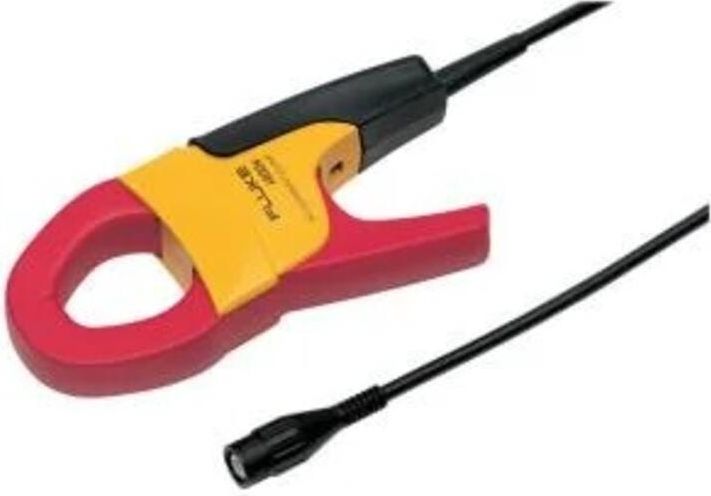

i400S AC Current Clamp-on Probe
SKU: I400S
This AC current clamp with BNC output extends the functionality of portable oscilloscopes or power quality meters to measure up to 400 A AC. Buy Online Now.
List price. Volume pricing available.
This AC current clamp with BNC output extends the functionality of portable oscilloscopes or power quality meters to measure up to 400 A AC. Buy Online Now.
Key Features
- Companion to your scope or power quality meter to measure up to 400 A AC
- Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
- Specially designed to offer maximum utility in a compact shape
- Take accurate current readings without breaking the circuit
- Soft non-slippery overmold handle
- Optional PM9081/001 BNC/Banana adapter for DMM's
- Two ranges: 40 A and 400 A, 10 and 1 mV/Amp output
- Max. conductor Ø 32 mm
The Fluke i400S AC Current Clamp-on Probe # I400S is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| 40 A Range | 0.5 A to 40 A |
| 400 A Range | 5 A to 400 A |
| 0.5 to 1 A | Unspecified |
| 1 A to 5 A | 4° |
| 5 A to 10 A | 3° |
| 10 A to 20 A | 3° |
| 20 A to 40 A | 2° |
| 40 A to 400 A | NA |
| Crest factor | Safety Specifications |
| Safety | CAT IV, 600 V, CAT III, 1000 V |
| Maximum non-destructive current | 1000 V AC |
| Warranty | 1 year |
| Maximum conductor size | 32 mm (1.25 inches) |
| Output cable length | 2.5 m (8.2 ft) |
| BNC adapter | Yes |
| Dimensions | 150 x 70 x 30 mm |
| Weight | 114 g |
