i3000 FLEX-4PK AC Current Probe, 4 Pack
SKU: I3000 FLEX-4PK
Four-pack of Fluke i3000 Flex AC current probes: Rogowski-coil probes that measure up to 3000 A with oscilloscopes, recorders or data loggers; three ranges (30 A, 300 A, 3000 A) with 100, 10 and 1 mV/A output and a flexible head for hard-to-reach conductors.
List price. Volume pricing available.

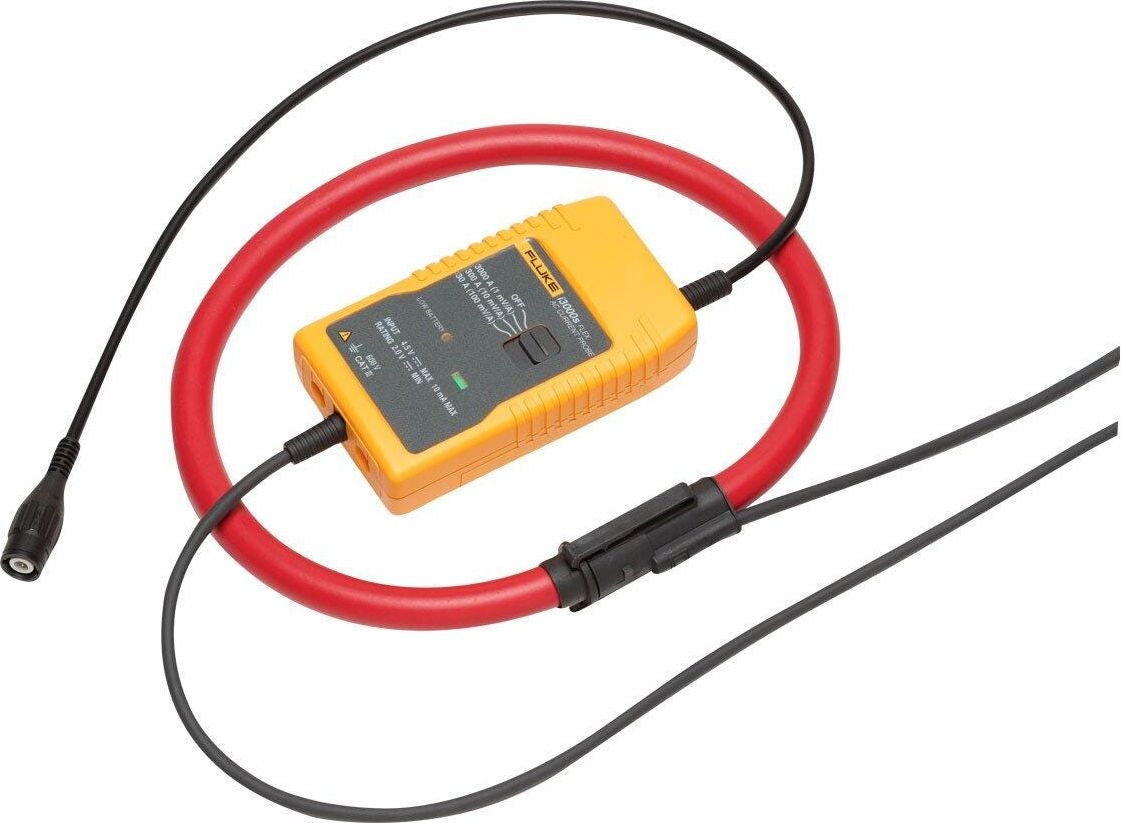

The Fluke i3000 Flex is an AC current probe based on the Rogowski principle. Used with an oscilloscope, recorder or data logger it measures currents up to 3000 A, and its flexible, lightweight head installs quickly around thick or hard-to-reach conductors without breaking the circuit.
Three ranges, 30 A, 300 A and 3000 A, give 100 mV/A, 10 mV/A and 1 mV/A output. Accuracy is ±1% of range (45 Hz to 65 Hz), linearity ±0.2% of reading from 10% to 100% of range, and the frequency range is 10 Hz to 50 kHz (-3 dB). Maximum conductor diameter is 178 mm (7 in). Rated CAT III 600 V.
I3000 FLEX-4PK is a pack of four probes.
The Fluke i3000 FLEX-4PK AC Current Probe, 4 Pack I3000 FLEX-4PK is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Electrical Specifications |
| Load impedance | 100 kΩ minimum |
| Accuracy | ±1% of range (45 Hz to 65 Hz) |
| Linearity | ±0.2% of reading |
| Noise | 2 mV AC rms (300 A, 3000 A) |
| Frequency range | 10 Hz to 50 kHz (-3 dB) |
| Phase error | ±10° (at 20 kHz) |
| Position sensitivity (with cable > 25 mm from the coupling) | ±2% of range |
| External field | ±1% of range |
| Power supply | 2 x AA/MN 1500/LR6 Alkaline, 400 hours, low battery indicator |
| Temperature coefficient | ±0.08% of reading per °C |
| Working voltage | 600 V AC rms or DC |
| Head circumference | 610 mm (24in) |
| Head cable diameter | 14.3 mm (0.56in) |
| Head bend radius | 38.1 mm (1.5in) |
| Cable length (head to electronics) | 2 m (6.56 ft) |
| Output connection | 0.5 m cable terminated with safety BNC connector. Supplied with 4mm safety plug adapter |
| Operating temperature range | -20°C to +85°C (-4°F to 185°F) (electronics) |
| Strong temperature range | -20°C to +85°C (-4°F to 185°F) (electronics) |
| Operating humidity | 15% to 85% (non-condensing) |
| Weight | 190 g (0.419 lb) (electronics) |
| Safety standards | BS EN 61010-2-032: 2002 |
| EMC standards | EN 61326: 1998 +A1, A2, and A3 |
| Head cable length (double insulated) | 610 mm or 914 mm, depending on model |
