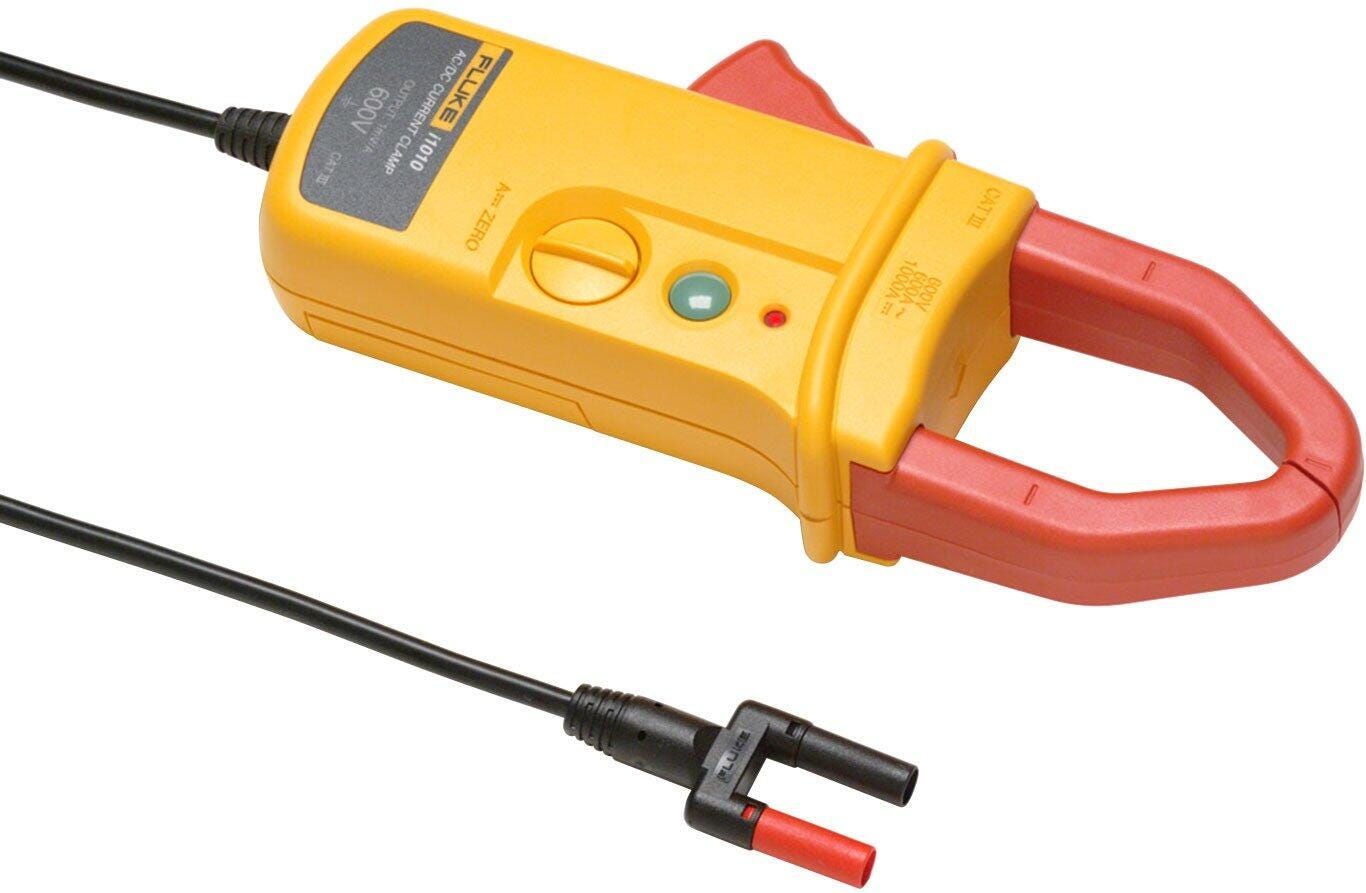

i1010 AC/DC Current Clamp, 1000A DC, 600A AC
SKU: I1010
Highly reliable, measures 1 A to 1000 A and provides accurate current reading without breaking the circuit. Buy Online Now.
List price. Volume pricing available.
Highly reliable, measures 1 A to 1000 A and provides accurate current reading without breaking the circuit. Buy Online Now.
Key Features
- The Fluke i1010 AC/DC current clamp is a battery-powered Hall-effect probe that extend the current ranges of Fluke tools, measuring DC current from 1 A to 1000 A and AC current from 1 A to 600A.
- Provides accurate current reading without breaking the circuit.
- Compatible with most Fluke multimeters.
- CAT III 600 V safety rating
The Fluke i1010 AC/DC Current Clamp, 1000A DC, 600A AC # I1010 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| Measurement type | Hall sensor |
| Nominal current range | 600 A, AC1000 A, DC |
| Continuous current range | 1 A - 600 A, AC1 A - 1000 A, DC |
| Maximum non-desctructive current | 1000 A |
| Lowest measureable current | 0.5 A |
| Basic accuracy | 2% + 0.5 A(% reading + floorspec) |
| Useable frequency | DC - 10 kHz |
| Output level(s) | 1 mV/A |
| Zero error adjustment | Yes |
| Safety | CAT III, 600 V |
| Maximum voltage | 600 V |
| Warranty | 1 year |
| Battery life | 9 V, 60 h |
| Maximum conductor diameter | 30 mm2 x 25 mm |
| Output cable length | 1.6 m |
| Shrouded banana plugs | Yes |
