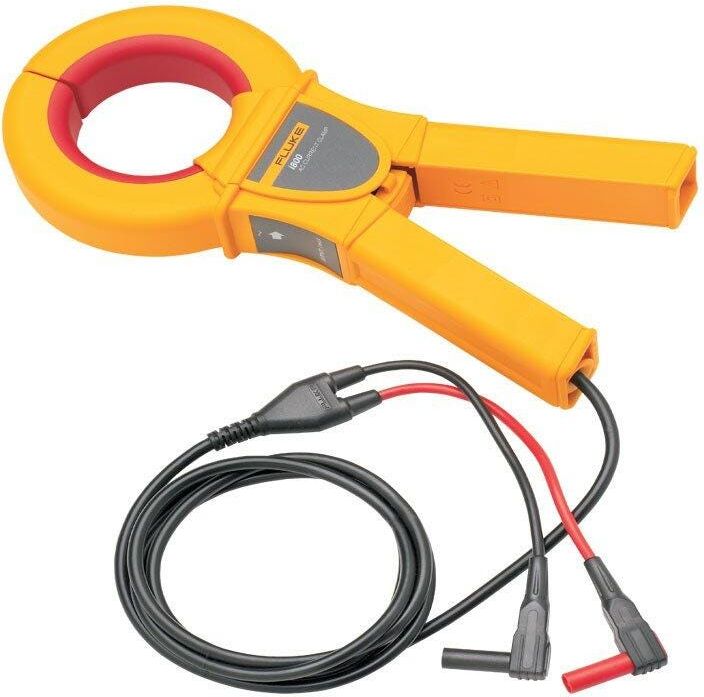

i800 AC Current Clamp
SKU: I800
Designed for use with multimeters, recorders, and safety testers for accurate non-intrusive AC current measurements. Buy Online Now.
List price. Volume pricing available.
Designed for use with multimeters, recorders, and safety testers for accurate non-intrusive AC current measurements. Buy Online Now.
Key Features
- Measures AC current from 100 mA to 800 A rms
- 30 Hz to 10 kHz frequency range
- CAT III 600 V rating
- Accepts up to 54 mm (2.1 in) diameter conductor size
- 1000:1 conversion factor for easy calculation
- Rugged positive action design
The Fluke i800 AC Current Clamp # I800 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| Nominal current range | 800 A rms |
| Continuous current range | 100 mA to 800 A rms |
| Maximum non-destructive current | 1500 A rms (50/60 Hz) |
| Lowest measureable current | 100 mA |
| Basic accuracy | ±1% of reading |
| Useable frequency | 30 Hz - 10 kHz (-3dB) |
| Output level(s) | 1 mA / A |
| Safety | CAT III 600 V |
| Maximum voltage | 600 V AC rms or DC |
| Warranty | 1 year |
| Maximum conductor diameter | 54 mm (2.13 in) |
| Output cable length | 1.6 m (63 in) |
| Lead connector | Shrouded banana plugs |
