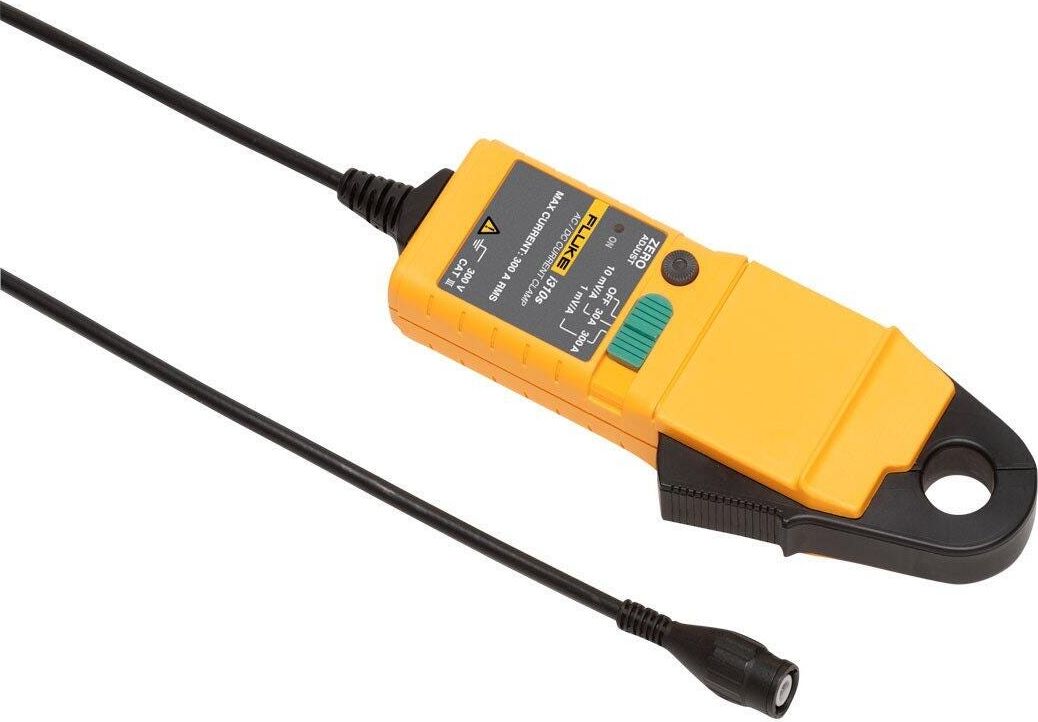

i310S AC/DC Current Clamp
SKU: I310S
The i310 current probe offered by Fluke can be used to measure both DC and AC current for accurate measurements. Contact us for more information.
List price. Volume pricing available.
The i310 current probe offered by Fluke can be used to measure both DC and AC current for accurate measurements. Contact us for more information.
Key Features
- Current Ranges: 30 A and 300 A ACRMS or ±45 A and 450 A DC
- Measuring Ranges: ±45 A and 450 A dc
- Output Sensitivity: 10 mV/A (40 A) to 1 mV/A (400 A)
- Resolution: ±50 mA (40 A) to ±100 mA (400 A)
- Load Impedance: > 10 k Ohms and £ 100 pF
- Frequency Range (small signal): DC to 20 kHz (- 3 dB)
- Phase Shift below 1 kHz,
- Temperature Coefficient: ±0.1% of reading / °C
- Power Supply: 9 V Alkaline
The Fluke i310S AC/DC Current Clamp # I310S is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Electrical Characteristics |
| Current ranges | 30 A and 300 A AC rms or ±45 A and 450 A DC |
| Measuring ranges | ±45 A and 450 A DC |
| AC rms or DC | ±45 A and 450 A |
| Inrush current | 600A AC rms MAX |
| Output sensitivity | 1 mV/A (300 A) |
| (30 A range) | ±1% of reading ±50 mA |
| (300 A range) | ±1% of reading ±300 mA |
| Bandwidth to meet accuracy specification | 1 kHz |
| Phase shift below 1 kHz | < 2 degrees |
| Resolution | ±100 mA (300 A) |
| Load impedance | > 10 k Ohms and ≤100 pF |
| Conductor position sensitivity | ±1.5% relative to centre reading |
| Frequency range (small signal) | DC to 20 kHz (-3 dB) |
| Temperature coefficient | ±0.1% of reading / °C |
| Power supply | 9 V Alkaline, MN1604/PP3 |
| Battery life | 30 Hours, low battery indicator |
| Working voltage (see Safety Standards section) | 300 V AC rms or DC |
| Maximum conductor size | 19 mm diameter |
| Output connection | Supplied with safety 4mm adaptor |
| Output zero | Manual adjust via thumbwheel |
| Cable length | 2 metres |
| Operating temperature range | -10 to +50°C |
| Storage temperature range (with battery removed) | -20 to +85°C |
| Operating humidity | 15% to 85% (non-condensing) |
| Weight | 250 g |
| Safety | IEC 61010-2- 032: CAT III 300V |
| EMC Compatibility | IEC 61326-1: Portable Electromagnetic Environment |
