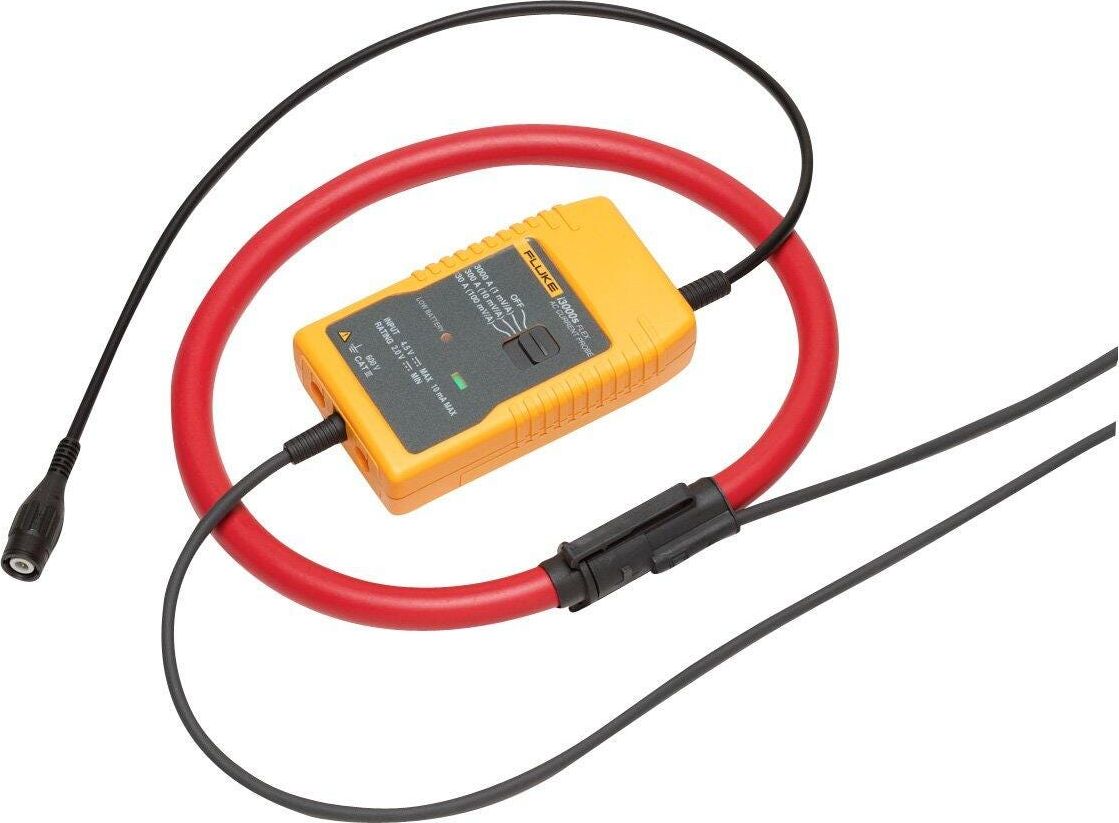

i3000S FLEX-24 AC Current Probe
SKU: I3000S FLEX-24
The i3000s is a clamp-on AC Current Clamp for use with oscilloscopes and multimeters with banana input using the supplied Dual Banana to BNC Adapter.
List price. Volume pricing available.
The i3000s is a clamp-on AC Current Clamp for use with oscilloscopes and multimeters with banana input using the supplied Dual Banana to BNC Adapter.
Key Features
- Product overview
- Specifications
- Models
- Reviews + Q&A
- Manuals + resources
- Compatible products
The Fluke i3000S FLEX-24 AC Current Probe # I3000S FLEX-24 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| Nominal current range | 30 A300A3000A |
| Continuous current range | 1 A - 30 A1 A - 300 A1 A - 3000 A |
| Maximum non-destructive current | 4000 A |
| Lowest measureable current | 1 A |
| Basic accuracy | 2% + 2 A(48-65 Hz)% reading + floorspec |
| Useable frequency | 10 Hz - 100 kHz |
| Output level(s) | 10 mv/A1 mv/A0.1 mv/A |
| Safety | CAT III, 600 V |
| Maximum voltage | 600 V AC |
| Warranty | 1 year |
| Maximum conductor diameter | 64 mm |
| Output cable length | 2.1 m |
| BNC adapter | Yes |
This product is part of a family with 3 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
I3000S | $852.99 | View Details → |
I3000S FLEX-24Current | $852.99 | Viewing |
I3000S FLEX-36 | $969.99 | View Details → |
