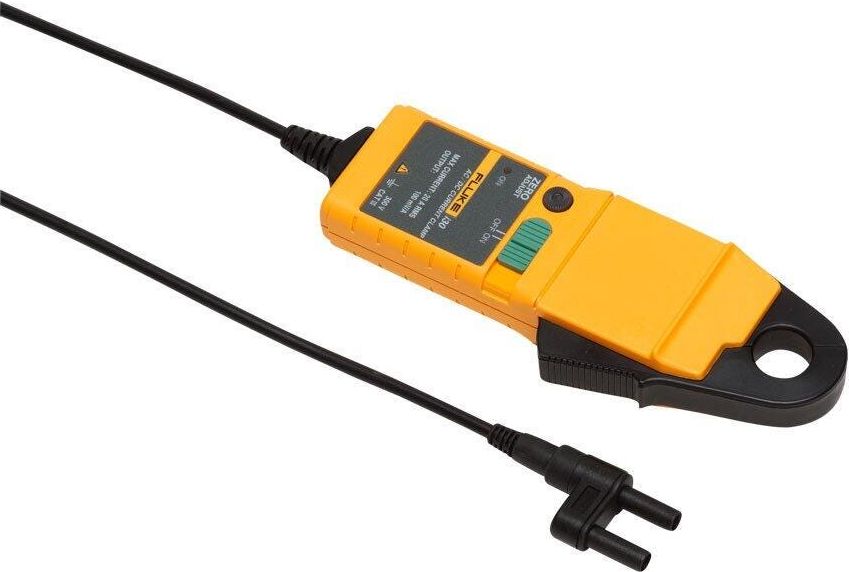

i30 AC/DC Current Clamp
SKU: I30
The i30 current clamp is based on Hall Effect technology for use in measurement of both DC and AC current.
List price. Volume pricing available.
The i30 current clamp is based on Hall Effect technology for use in measurement of both DC and AC current.
Key Features
- Current clamp based on Hall Effect technology that measures both DC and AC current
- Includes banana plug end for compatibility with multimeters
- Current range: 30 mA to 30 A DC, 30 mA to 20 A AC rms
- Frequency range: DC to 20 kHz (-0.5 dB)
- CAT III 300 V safety rating
The Fluke i30 AC/DC Current Clamp # I30 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Electrical Specifications |
| Specified current range | 30 mA to 30 A DC, 30 mA to 20 A AC rms |
| Usable current range | 5 mA to 30 A DC, 30 mA to 20 A AC rms |
| Crest Factor | 1.4 in |
| Output sensitivity | 100 mV/A |
| Accuracy (at +25°C) | DC ±1 % of reading ±2 mAAC ± 0.5 dB of reading ±2 mA |
| Resolution | ±1 mA |
| Load impedance | > 10 k Ohms and ≤ 100pF |
| Conductor position sensitivity | ±1% relative to center reading |
| Frequency range | DC to 20 kHz (-0.5 dB) |
| Temperature coefficient | ±0.01% of reading/°C |
| Power supply | 9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator |
| Working voltage (see Safety Standards section) | 300 V AC rms or DC |
| Maximum conductor size | 19 mm diameter |
| Output connection | 4 mm safety connector |
| Output zero | Manual adjust via thumbwheel |
| Cable length | 1.5 meters |
| Operating temperature range | 0°C to +50°C |
| Storage temperature range (with battery removed) | -20°C to +85°C |
| Operating humidity | 15% to 85% (non-condensing) |
| Weight | 250 g |
| Safety | IEC 61010-2- 032: CAT III 300V |
| EMC Compatibility | IEC 61326-1: Portable Electromagnetic Environment |
