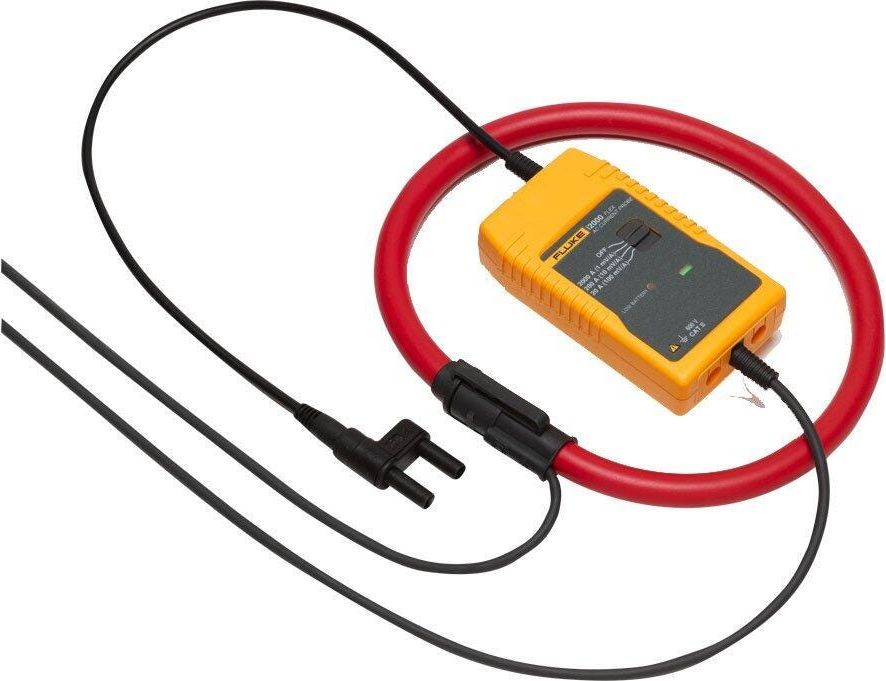

i2000 FLEX AC Current Probe
SKU: I2000 FLEX
Fluke i2000 Flex AC current probe uses the Rogowski principle to measure up to 2000 A with multimeters, recorders or data loggers; three ranges (20 A, 200 A, 2000 A) with 100, 10 and 1 mV/A output and a flexible head for hard-to-reach conductors.
List price. Volume pricing available.
The Fluke i2000 Flex is an AC current probe based on the Rogowski principle. Used with a multimeter, recorder or data logger it measures currents up to 2000 A, and its flexible, lightweight measuring head wraps around thick or awkwardly placed conductors without breaking the circuit.
Three ranges, 20 A, 200 A and 2000 A, give 100 mV/A, 10 mV/A and 1 mV/A output. Accuracy is ±1% of range (45 Hz to 65 Hz) with ±0.2% of reading linearity from 10% to 100% of range, and the frequency range is 10 Hz to 20 kHz (-3 dB). Maximum conductor diameter is 178 mm; the head circumference is 610 mm (24 in).
Rated CAT III 600 V with a 600 V AC rms or DC working voltage. Powered by two AA alkaline batteries (about 200 hours) with a low-battery indicator.
The Fluke i2000 FLEX AC Current Probe I2000 FLEX is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Current ranges | 20 A, 200 A, 2000 A AC rms |
| Output sensitivity | 100 mV/A, 10 mV/A, 1 mV/A |
| Accuracy | ±1% of range (45 Hz to 65 Hz) |
| Linearity | ±0.2% of reading (10% to 100% of range) |
| Frequency range | 10 Hz to 20 kHz (-3 dB) |
| Maximum conductor diameter | 178 mm |
| Head circumference | 610 mm (24 in) |
| Load impedance | 100 kΩ minimum |
| Safety rating | CAT III 600 V |
| Power | 2 x AA alkaline, about 200 hours |
