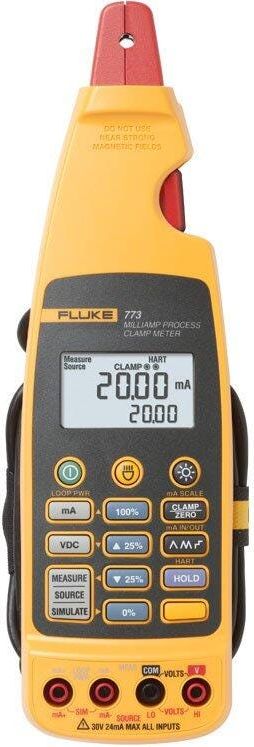

773 Milliamp Process Clamp Meter
SKU: FLUKE-773
Eliminate wasting time & save money with Fluke 773 mA clamp meter that allows you to measure output signals without breaking the loop. Price: $1,369.99.
List price. Volume pricing available.
Eliminate wasting time & save money with Fluke 773 mA clamp meter that allows you to measure output signals without breaking the loop. Price: $1,369.99.
Key Features
- Measure 4 to 20 mA signals without breaking the loop
- Source/simulate 4 to 20 mA signals and provide loop power
- Source/measure DC voltage to verify power supplies or I/O signals
- Best in class accuracy of 0.2%
- Delivers 0.01 mA resolution and sensitivity
The Fluke 773 Milliamp Process Clamp Meter # FLUKE-773 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| Diameter of measurable conductor | 0.177" or 4.5 mm max |
| Operating temperature | -10 to 50ºC |
| Storage temperature | -25 to 60ºC |
| Operating humidity | < 90% @ <30ºC, < 75% @ 30 to 55ºC |
| Operating altitude | 0 to 2000 m |
| IP rating | IP 40 |
| Size | 44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in) |
| Weight | 410 g, (14.4 oz) |
| Vibration | Random 2 g, 5 to 500 Hz |
| Shock | 1 meter drop test (except the jaw) |
| EMI/RFI | For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m. |
| Temperature coefficient | 0.01% ºC( 28ºC) |
| Power, battery life | (4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms |
| Warranty | Three years for electronicsOne year for cable and clamp assembly |
| Resolution / range | 0 to 20.99 mA |
| Accuracy | 0.2% + 5 counts |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
FLUKE-773Current | $1,956.99 | Viewing |
FLUKE-773 CAL | $2,151.66 | View Details → |
