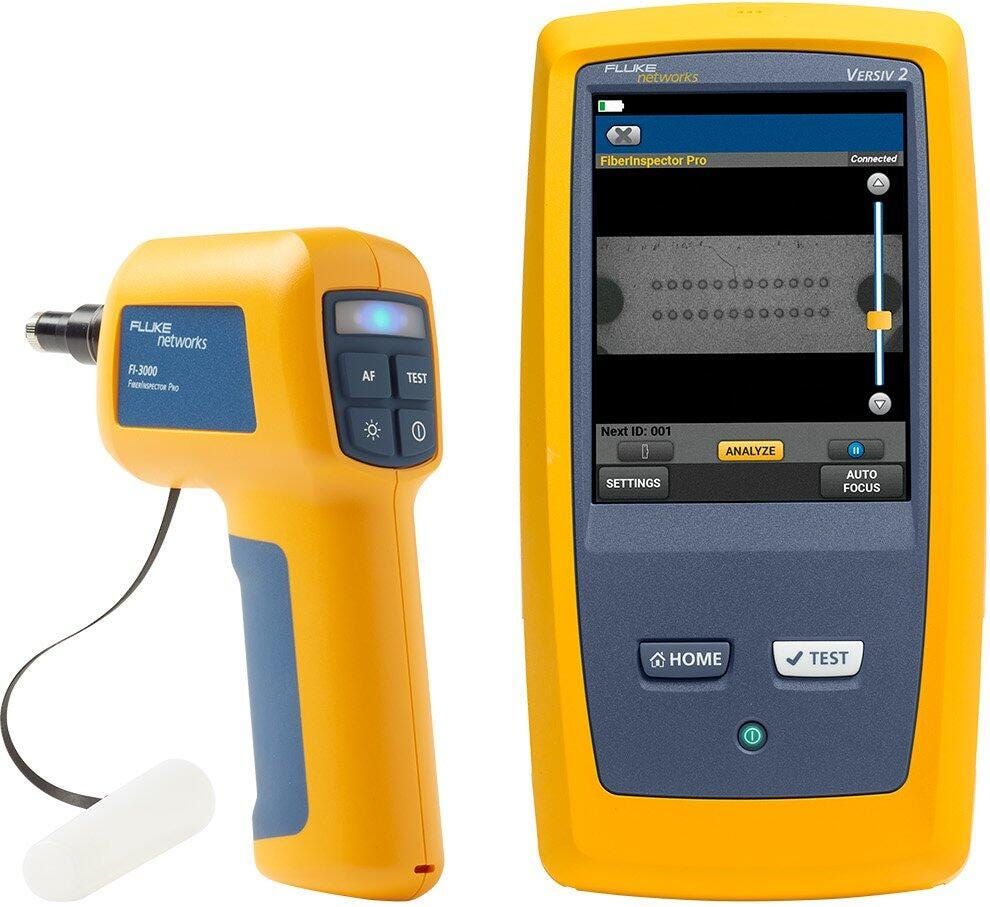

FI2-7300 FiberInspector Ultra V2
SKU: FI2-7300-NW
Inspect MPO and single fiber optic cables easily with the Fluke Networks FI2-7300 FiberInspector Pro including Versiv. Instant, real-time image to view the full connector down to individual end faces.
List price. Volume pricing available.
Inspect MPO and single fiber optic cables easily with the Fluke Networks FI2-7300 FiberInspector Pro including Versiv. Instant, real-time image to view the full connector down to individual end faces.
Key Features
- MPO and single strand fiber inspection camera with instant Live View
- Includes FI-3000 FiberInspector Ultra camera, Versiv main/remote, and accessories
- Autofocus/Auto centering multi-camera design and automated pass/fail
- Total MPO visibility from full trunk to individual end face
- For single strand fiber and 1 or 2 rows of 8/12/16 UPC or APC connectors
The Fluke Networks FI2-7300 FiberInspector Ultra V2 # FI2-7300-NW is manufactured by Fluke Networks. Valley Instrument Service is an authorized Fluke Networks dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Temperature range | Operating: -10 °C to +45 °C (+14 °F to +113 °F)Storage: -10 °C to +60 °C (+14 °F to +140 °F) |
| Humidity range | Operating: 0 % to 95 % (32 °F to 95 °F, 0 °C to 35 °C)RH non-condensingStorage: 0 % to 95 % (95 °F to 113 °F, 35 °C to 45 °C)RH non-condensing |
| Altitude | Operating: 4,000 m (3,200 m with AC adapter)Storage: 12,000 m |
| Vibration | 2 g, 5 Hz to 500 Hz |
| Shock | 1 meter drop test |
| Safety | IEC 61010-1: Pollution Degree 2 |
| EMC | IEC 61326-1: Controlled Electromagnetic Environment; IEC 61326-2-1CISPR 11: Group 2, Class AUSA (FCC): 47 CFR 15 Intentional Radiators: This device complies with part 15 of the FCC Rules. |
| Endtype support | Single Fiber and MPO: 1x8 (8 fibers), 1x12 (8, 10, or 12 fibers), 1x16 (16 fibers), 2x12 (16, 20, or 24 fibers), 2x16 (32 fibers) |
| Test limits | IEC 61300-3-35 ED. 2 MMIEC 61300-3-35 ED. 2 SM APCDocument Only |
| Optional automated pass/fail test time | Less than 2 seconds per fiber |
| Camera type | 5 Megapixel 1/4-inch CMOS sensor |
| Field of view | 610 µm x 460 µm |
| Resolution | 1 µm |
| Light source | LED, >100,000 hr life |
| Endface illumination | Coaxial blue LED |
| Battery type | Lithium-ion; 10.8 hour life |
| Power adapter | Input: 100 to 240 VAC ±10%, 50/60HzOutput: 15 VDC, 2 A maximumClass II |
| Wireless transmission* | Output power: <100 mW Frequency ranges: 2.4 GHz (2412 MHz to 2462 MHz) |
| Dimensions | 6.625 x 5.375 x 2.125 in (168 x 137 x 54 mm)(with no dust cap or adapter tip)Length with dust cap: 7.5 in (191 mm) |
| Weight | 11.5 oz (326 gm)(with dust cap and no adapter tip) |
Related Products
Adapter to Connect FI-1000 Tips to FI-3000 Probe
Adapter to Connect FI-1000 Tips to FI-3000 Probe
Data Center Fiber Inspection & Fiber Detection Kit No-Wi-Fi
Data Center Fiber Inspection & Fiber Detection Kit No-Wi-Fi
Data Center Fiber Inspection & Fiber Detection Kit w/Wi-fi
Data Center Fiber Inspection & Fiber Detection Kit w/Wi-fi

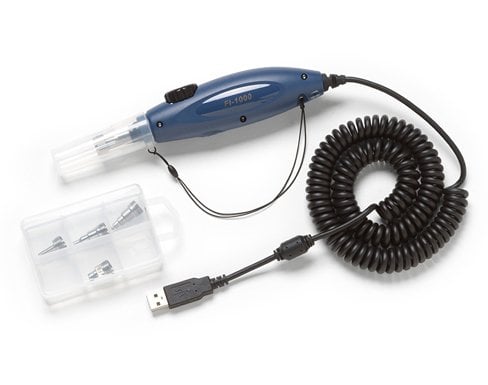

FI-1000 USB Video Probe and Tip Set
