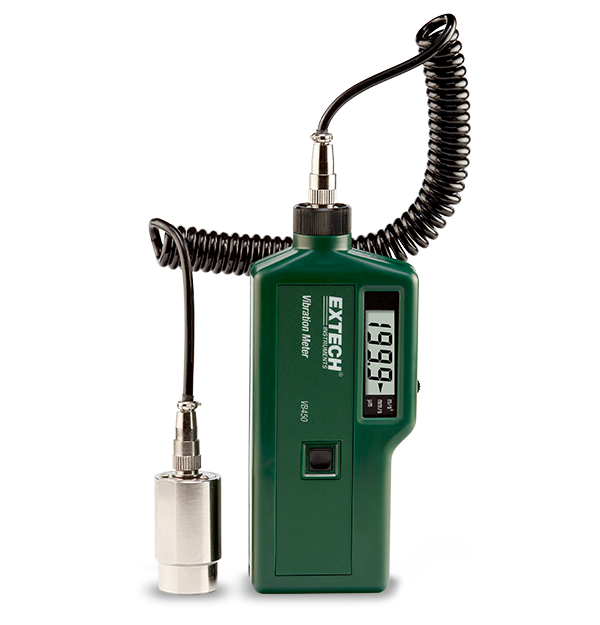

The VB450 is a convenient compact sized Vibration Meter which measures vibration levels in industrial machinery. Misalignment, poor balancing, structural compromises, and other factors can cause unwanted vibration increases. VB450 features a wide 10Hz to 1500Hz frequency range and provides Displacement, Velocity, and Acceleration measurement. Complete with remote sensor, magnetic mount, 9V battery, wrist strap, and soft case.
The Extech VB450 Vibration Meter VB450 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Acceleration | 0.1 to 199.9 m/s² |
| Acceleration Basic Accuracy | ±(5% of reading + 1 digit) |
| Acceleration Max Resolution | 0.1m/s² |
| Displacement | 1 to 1999 µm |
| Displacement Basic Accuracy | ±(5% of reading + 1 digit) |
| Displacement Max Resolution | 1 µm |
| Velocity | 0.1 to 199.9mm/s |
| Velocity Basic Accuracy | ±(5% of reading + 1 digit) |
| Velocity Max Resolution | 0.1mm/s |
| Certifications | CE |
| Dimensions | 7.3 × 2.7 × 1.2" (185 × 68 × 30mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 8.1oz (230g) |
Related Products

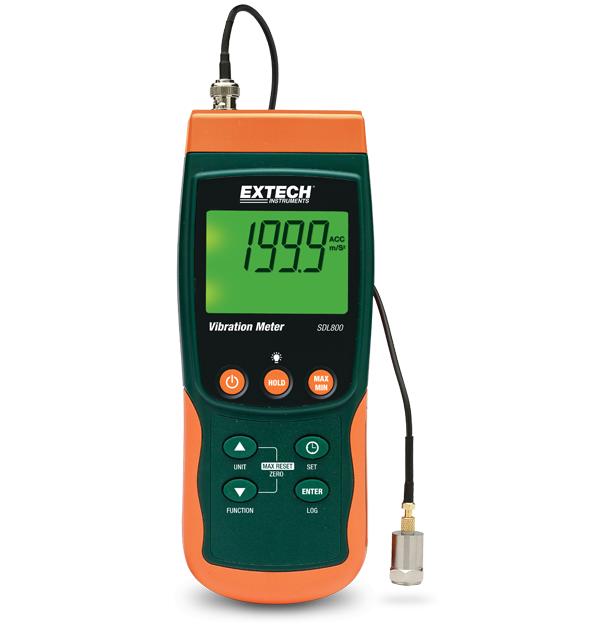

SDL800 Vibration Meter SD Logger
The SDL800 measures and datalogs vibration using a remote vibration sensor with magnetic adapter on 47.2"(1.2m) cable. It offers a wide frequency range of 10Hz to 1kHz with basic accuracy of ±(5% + 2 digits). Manually store 99 readings or continuously datalog using a SD memory card, which allows user to easily transfer collected data to a PC for further analysis as an Excel format. Complete with remote sensor, magnetic mount, 6 x AA batteries, SD card, and hard carrying case.

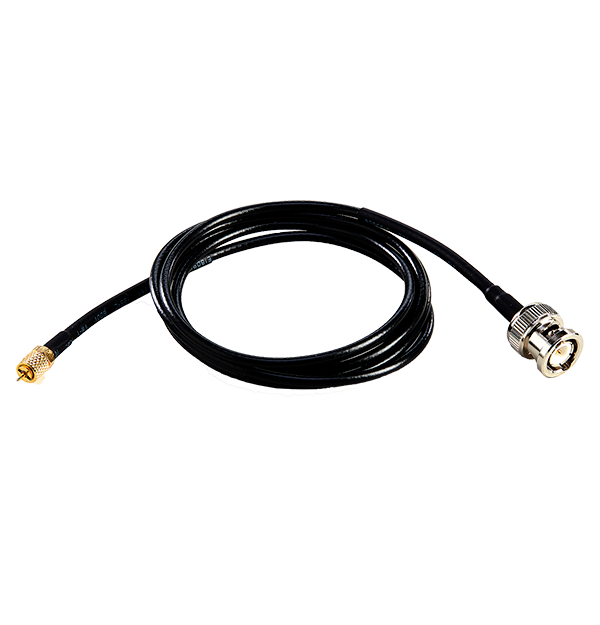

SDL800-CBL Vibration Meter SD Logger Cable
The Extech SDL800-CBL is a replacement data cable for the SDL800 Vibration Meter.

VB300 Vibration Datalogger
The VB300 is a G-Force datalogger which records and times 3-axis shock and vibration (acceleration) readings over its ±18g measurement range. This device will record 3-axis g-force and related peaks to provide a history of shock and vibration conditions. Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows compatible analysis software.

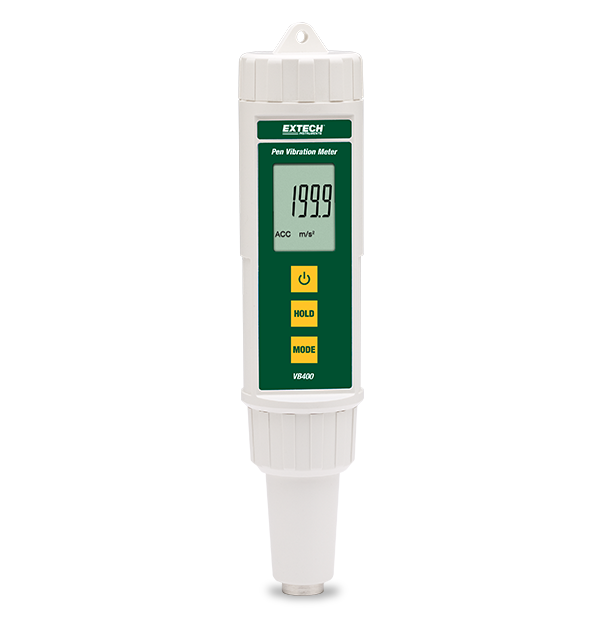

VB400 Pen Vibration Meter
