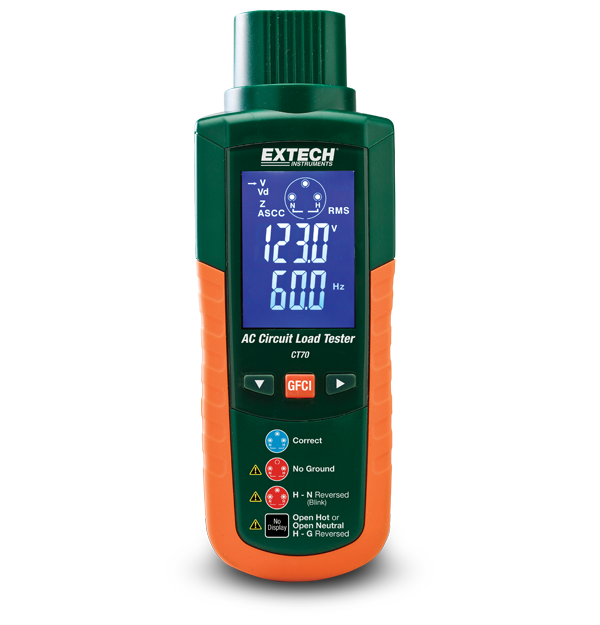

CT70 Circuit Analyzer
SKU: CT70
Circuit and wiring issues can introduce shock hazards and compromise performance of machinery and equipment. The CT70 is a GFCI and AC circuit analyzer which covers outlet load handling and outlet tester functions. AC load tester functions cover selectable loads of 12, 15, and 20 Amps; loaded and unloaded AC line voltage measurements; voltage drop/line impedance calculations; and peak line voltage. Outlet tester functions include neutral to ground voltage; hot, neutral, and ground impedance; GFCI trip time/trip current; and open or reversed wiring. The CT70 comes complete with AC test cord (standard North American 3-prong plug).
List price. Volume pricing available.
Circuit and wiring issues can introduce shock hazards and compromise performance of machinery and equipment. The CT70 is a GFCI and AC circuit analyzer which covers outlet load handling and outlet tester functions. AC load tester functions cover selectable loads of 12, 15, and 20 Amps; loaded and unloaded AC line voltage measurements; voltage drop/line impedance calculations; and peak line voltage. Outlet tester functions include neutral to ground voltage; hot, neutral, and ground impedance; GFCI trip time/trip current; and open or reversed wiring. The CT70 comes complete with AC test cord (standard North American 3-prong plug).
The Extech CT70 Circuit Analyzer # CT70 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| AC Voltage | 90.0 to 240.0V |
| Frequency | 45.0 to 65.0Hz |
| Peak Line Voltage | 350.0V |
| Voltage Drop | 0.1 to 99.9% |
| Certifications | CE, ETL |
| Dimensions | 8 × 2.8 × 2" (203.2 × 71.1 × 50.8mm) |
| Safety Category | CATII - 300V |
| Warranty | 2 years |
| Weight | 11.2oz (317.5g) |
