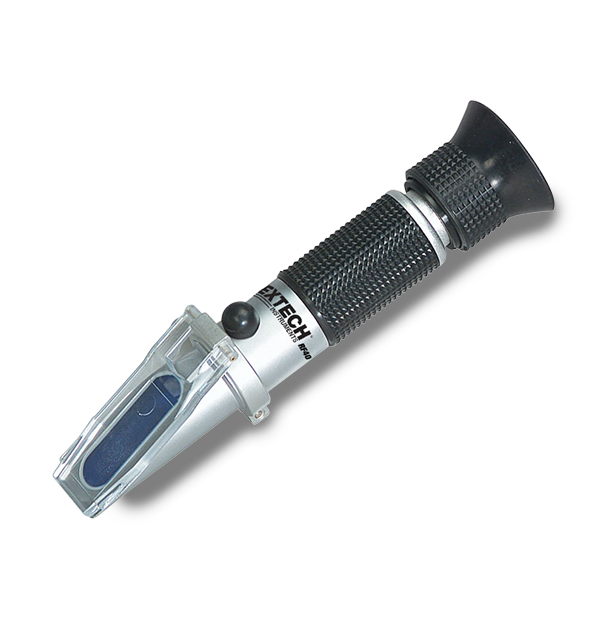

RF40 Battery Coolant Refractometer
SKU: RF40
This portable battery coolant/glycol Refractometer is easy to operate refract meters provide accurate and repeatable measurements on easy to read scales. The RF40 measures the freezing point of automotive coolants (propylene glycol and ethylene glycol) and indicates the specific gravity of battery acid and provides a quick reference of battery charge condition. Complete with one year warranty, case, calibration screwdriver, plastic pipette and calibration solution.
List price. Volume pricing available.
This portable battery coolant/glycol Refractometer is easy to operate refract meters provide accurate and repeatable measurements on easy to read scales. The RF40 measures the freezing point of automotive coolants (propylene glycol and ethylene glycol) and indicates the specific gravity of battery acid and provides a quick reference of battery charge condition. Complete with one year warranty, case, calibration screwdriver, plastic pipette and calibration solution.
The Extech RF40 Battery Coolant Refractometer # RF40 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Battery Acid Specific Gravity | 1.15 to 1.30 |
| Battery Acid Specific Gravity Max Resolution | 0.01 |
| Freezing Point (Ethylene Glycol) | -60 to 25°F (50°F to 86°F ATC) |
| Freezing Point (Ethylene Glycol) Basic Accuracy | ±5°F |
| Freezing Point (Ethylene Glycol) Max Resolution | 2°F |
| Freezing Point (Propylene Glycol) | -60° to 32°F (50°F to 86°F ATC) |
| Freezing Point (Propylene Glycol) Basic Accuracy | ±5°F |
| Freezing Point (Propylene Glycol) Max Resolution | 2°F |
| Dimensions | 6.5 × 1.5 × 1.5" (165 × 38 × 38mm) |
| Warranty | 2 years |
| Weight | 7oz (200g) |
Accessories, replacement sensors, and parts for this product family.
Related Products

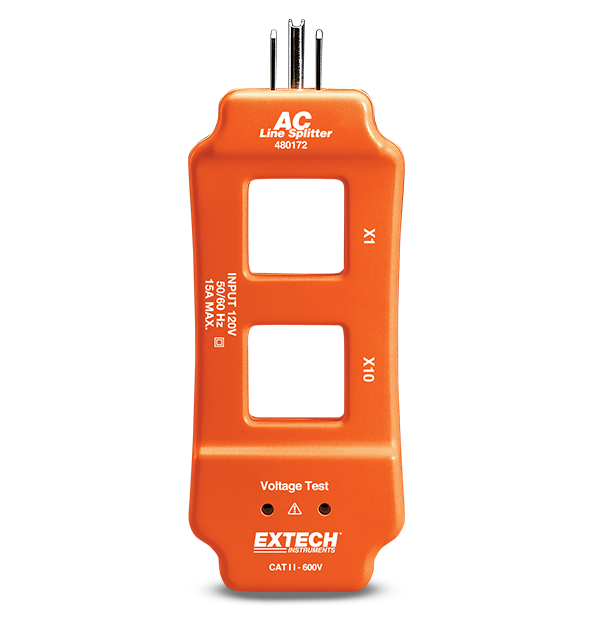

480172 Line Separator, 3 Prong
This Extech 480172 Line Splitter provides a fast and easy way to “open” standard 120 Volt AC electrical lines, eliminating the need to cut off the plug and separate the conductors. When connected between a 120 Volt AC outlet and a device under test, this splitter separates the hot/live conductor from the neutral and ground, which enables users to measure AC current up to 15 Amp on a two-wire or three-wire lines using a clamp meter. This splitter also features two Voltage Test jacks so that voltage can be measured using a multimeter.

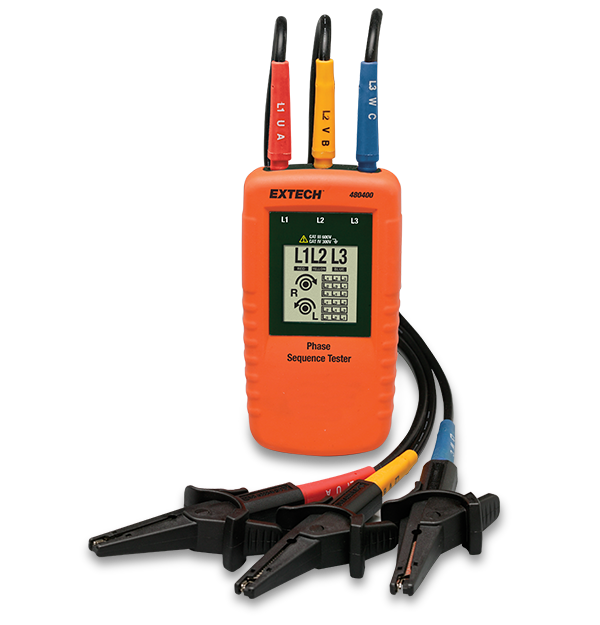

480400 Rotation Tester, 3-Phase
The 480400 Phase Sequence Tester has a 40 to 600-Volt rated range for testing phase orientation of 3-phase power sources over a 15 to 400Hz frequency range. Multiline graphical LCD indicates phase orientation (clockwise or counter-clockwise) and whether each of the phases is live. No battery required. Comes complete with cable, three large color coded alligator clips, and pouch case.

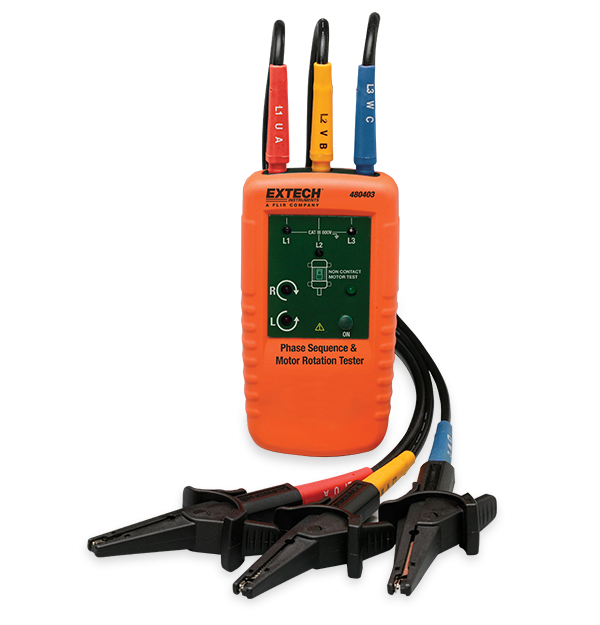

480403 Rotation Tester, Motor Phase
The Extech 480403 Motor Rotation and 3-Phase Tester has a 40 Volt to 600 Volt rated range for testing phase orientation of 3-phase power sources over a 2 Hz to 400 Hz frequency range. LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each of the phases is live. In addition, it indicates rotation direction of the motor to ensure that it doesn't get damaged from incorrect wiring. Meter comes complete with cable and three large color coded alligator clips, pouch case, and 9V battery.

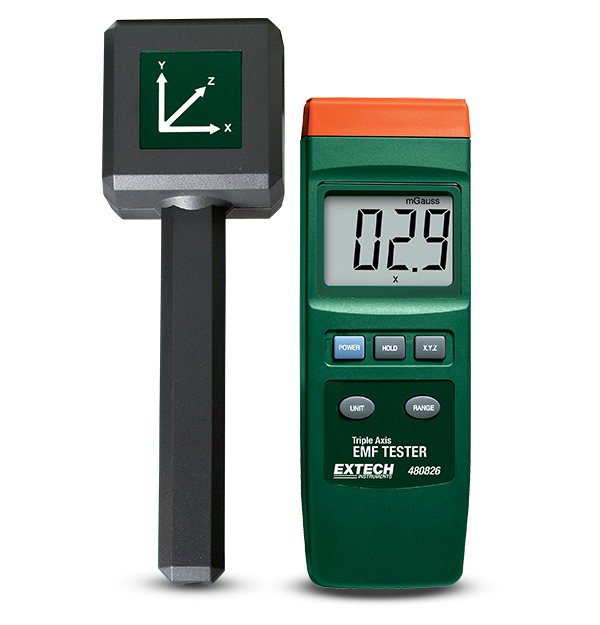

480826 EMF Tester/Triple Axis
