TC01A 25HZ iSee Mobile Thermal Camera, 256x192, 25 Hz, for Android
SKU: FLUKE-TC01A 25HZ
Thermal Camera, FU4, 256x192, 25HZ, for Android
List price. Volume pricing available.

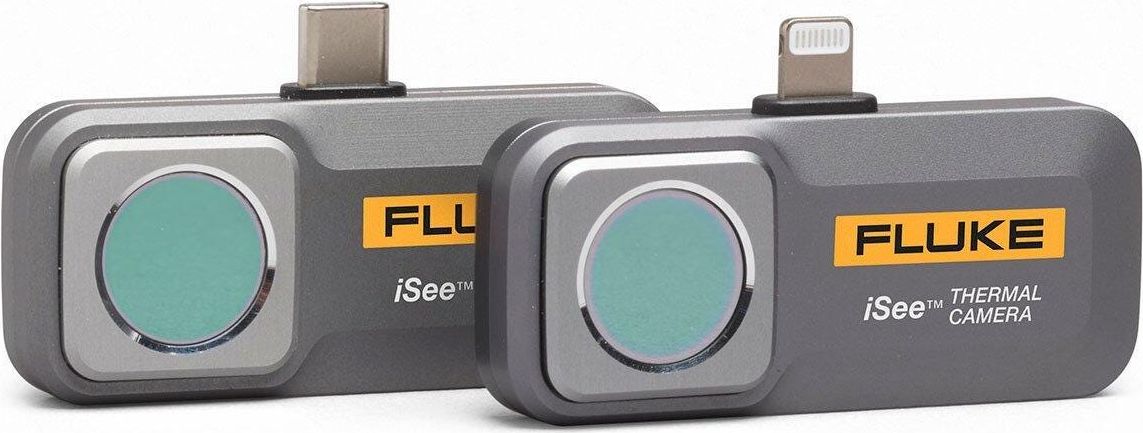

The Fluke iSee Mobile Thermal Camera TC01A/TC01B/TC01C transforms your mobile iPhone or Android into a powerful thermal imaging device for detecting heat patterns.
Key Features
- 256 x 192 pixels, detailed image quality, and 25 Hz frame rate for smooth video recording
- Up to 550 °C (1022°F), suitable to use in many applications
- 50 mK (0.05 °C) thermal sensitivity for fine differences and ± 2% or ±2 °C accuracy to ensure reliable results
- Customize image view with more than 10 standard or custom color palettes
- Compact design as light as 22 g
The Fluke TC01A 25HZ iSee Mobile Thermal Camera, 256x192, 25 Hz, for Android # FLUKE-TC01A 25HZ is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| IR resolution | 256 x 192 |
| Pixel size | 12 μm |
| Temperature range | -10 °C to 550 °C/14 °F to 1022 °F |
| Temperature accuracy | ± 2 % of rdg or ± 2 °C/3.6 °F, whichever is greater(@ 23 °C ± 5°C/73.4 °F ± 9 °F ambient temperature) |
| Temperature measurement distance | 0.25 m to 5 m(* -20 ℃/-4 °F to 10 ℃/50 °F, only for 0.25 m to 3 m) |
| Frame rate | 25 Hz |
| Warm-up time | 1 minute |
| Focal length | Fixed focal length: 3.2 mm |
| Shutter mode | Internal |
| Thermal sensitivity (NETD) | 50 mK |
| Spectral range | 8 to 14 μm |
| Field of view (H x V) | 56° x 42° |
| Spatial resolution | 3.81 mrad |
| USB interface | Type-C |
| Compatible system | Android and HarmonyOS |
| Operating temperature | 0 ℃ to 40 ℃/32 °F to 104 °F |
| Storage temperature | -30 ℃ to 60 ℃/–22 °F to 140 °F |
| Operating humidity | 10 % to 90 % RH, non-condensing |
| Power consumption | 350 mW (Typical) |
| Drop test | 1 m/3.3 ft |
| Ingress protection | IEC 60529: IP54(with the protective cover for Type C) |
| Operating altitude | 2 000 m/6 562 ft |
| Storage altitude | 12 000 m/39 370 ft |
| Dimensions (L x W x H) | 60 x 33.5 x 11.2 mm/2.36 x 1.32 x 0.44 in |
| EMC Environment | InternationalIEC 61326-1: Electromagnetic environment for portable equipments CISPR 11: Group 1, Class AGroup 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply net- work that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.Korea (KCC)Class A Equipment (Industrial Broadcasting and Communication Equipment)Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.United States (FCC)47 CFR 15 Subpart B. This product is considered an exempt device per clause 15.103. |
| Warranty | 2 years |
