DS703 FC High Resolution Diagnostic Videoscope
SKU: FLK-DS703 FC
High Resolution Diagnostic Videoscope
$3,999.99
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

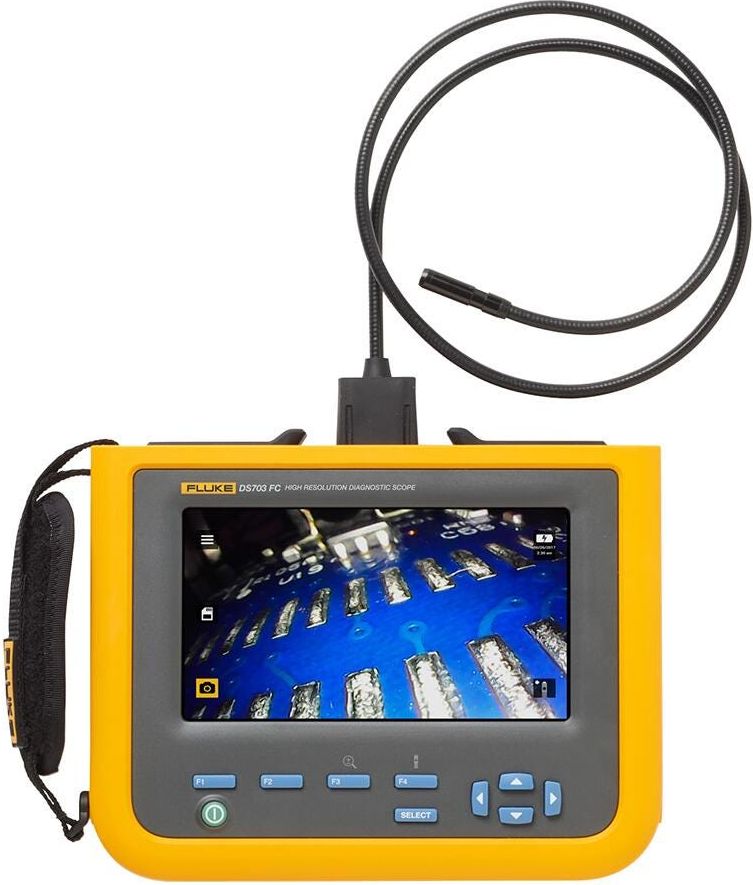

The Fluke DS703 FC is powerful diagnostic borescope designed to stand up to the dirtiest, most harsh environments.
Key Features
- Bright 7" high resolution LCD touch screen
- High Definition, dual view imaging probe and adjustable light to provide a clear image
- Variety of rugged and high-resolution accessory probes available to address your specific application needs
- Improved battery charging and management
- Macro to micro zoom
- Up-is-Up technology for an appropriate orientation, regardless of the probe location or position
- Fluke Connect support including wireless image transfer
The Fluke DS703 FC High Resolution Diagnostic Videoscope # FLK-DS703 FC is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Type | 7 inch Capacitive touch screen |
| Refresh rate | 30 hz |
| LED backlight | Adjust display brightness for optimal viewing |
| Wireless interface | WiFi 802.11b/g/n, Range: 33 feet (10.06 meters) |
| Data transfer | USB and micro HDMI cable |
| FlukeConnect | Save and share images via FlukeConnect |
| Instant upload to the cloud | Yes, with FlukeConnect |
| Color palettes | Visible light, grayscale or inverted |
| Internal memory | 6 GB |
| Physical buttons | Intuitive, easy to navigate button technology, 4 functional keys, 4 navigational, one capture or select button |
| Carrying case | Protective EVA case |
| Strap | Hand Strap and Neck Strap included |
| Power adapter | AC adapter/battery charger input |
| Battery | 6400mAh 3.7 volt rechargeable internal li-ion battery |
| Battery life | 3 hours at 50 % LED brightness |
| Dimensions | 6.98 x 8.85 inches (17.73 x 22.48 cm) |
| Weight | 1.95 lbs (0.88 Kg) |
| Tablet | IP54, dust protected and protected against water projected from a nozzle |
| Drop test | 2 meter (6.56 feet) |
| Operating temperature | 0 °C to 45 °C (32 °F to 113 °F), 50 °C (122 °F) for less than 10 minutes |
| Storage temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating humidity | 90 % at 35 °C (95 °F), 75 % at 40 °C (104 °F), 45 % at 50 °C (122 °F) |
| Warranty | 2 years |
| Video Borescope Probe Specifications | 8.5mm Dual View (1.2M) (Included with DS703 FC) |
| Outer Diameter of Tip | 8.5mm |
| Length | 1.2 meter |
| Resolution | 1280 x 720 (720p) (HD) |
| Depth of Field (min) | 35.5mm (Front)35.5mm (Side) |
| Depth of Field (max) | 111.7mm (Front)111.7mm (Side) |
| Field of View | 75 degrees |
| Up-is-Up technology | Yes |
| Length of Distal Tip | 50mm |
| Outer Diameter of Conduit | 6.1mm |
| Conduit Pliability | Flexible but compliant |
| Waterproof | Waterproof to 2 psi |
| LED Type | Standard white |
| Still image format | JPG |
| Video recording format | MPEG compression |
| Digital zoom | Adjustable from 1x to8x zoom |
| Camera Direction | Front and Side View |
| Streaming video | Via HDMI |
