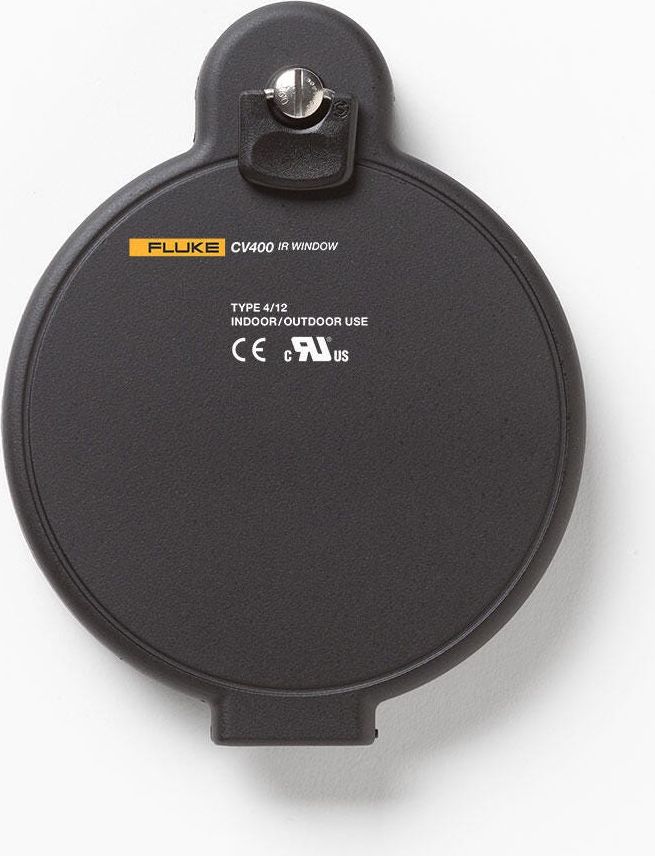

CV400 4 in (100 mm) Hand Turn Door Latch
SKU: FLUKE-CV400
Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance. Learn More.
List price. Volume pricing available.
Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance. Learn More.
Key Features
- One technician
- One hole with standard Greenlee punch
- Panel door does not need to be removed
- Grounds instantly to metal enclosure with patent-pending AutoGround process
- Maintains panel arc test ratings up to 63kA when properly installed
The Fluke CV400 4 in (100 mm) Hand Turn Door Latch # FLUKE-CV400 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | General Specifications |
| Size | 95 mm (4 in) |
| Voltage range | Any |
| NEMA environment type | Type 4/12 (indoor/outdoor) |
| AutoGround™ | Yes |
| ClirVu® optic | Yes |
| Operating temperature | -40°C to +232°C (-40° F to +450°F) and +260°C (500°F) intermittent |
| Compatible with all Fluke cameras | Yes |
| Jam nut locking system | Yes |
| Cover and fastener permanently attached | Yes |
| Single-hole install | Yes |
| Hand turn and security key door latch options | Yes |
| Visual inspection and fusion capable | Yes |
| Short/Mid/Long-wave IR and UV capable | Yes |
| Arc-tested (IEEE C37.20.7) | 63 kA for 30 cycles @ 60 Hz at KEMA |
| CSA C22.2 No. | Yes |
| CSA type rating | Type 4 |
| IP rating | IP67 at TUV |
| Lloyds register | Up to 11 kV marine switchgear, indoor or outdoor (offshore only) |
| Vibration rating | IEC60068-2-6 at TUV |
| Humidity rating | IEC60068-2-3 at TUV |
| Actual mounting hole diameter required | 115.42 mm (4.544 in) |
| Greenlee® punch kit = punch/die | 742BB = 2984AV/2983AV |
| Recommended max panel thickness | 10 gage |
| Overall window height | 189.3 mm (7.45 in) |
| Overall window width | 147.1 mm (5.79 in) |
| Overall window thickness | 23.0 mm (0.90 in) |
| Door latch | Hand Turn |
| Optic insert diameter | 95 mm (3.74 in) |
| Viewing aperture diameter | 87.63 mm (3.450 in) |
| Viewing aperture area | 6032 mm2 (9.35 in2) |
| Thickness | 4 mm (0.16 in) |
| Warranty | Lifetime replacement against manufacturing defects |
