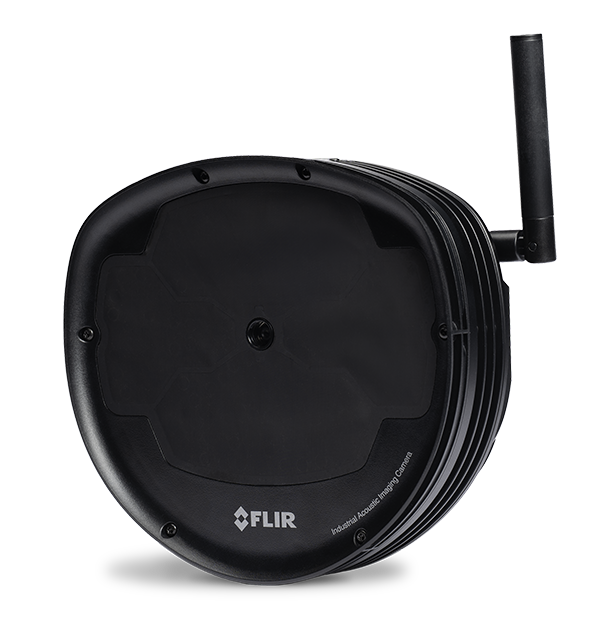

FLIR Si2a-PD Fixed-Mount Acoustic Imaging Camera with Wi-Fi

Si2a-PD Fixed-Mount Acoustic Imaging Camera (No Wi-Fi)

SKU: T912645

The FLIR Si2a-PD is a fixed-mount acoustic imaging camera for continuous, 24/7 monitoring of partial discharge, corona and arcing from up to 200 m, with AI-enhanced analysis, an IP66 enclosure and a VESA mount for switchgear, GIS and substations. This version has no Wi-Fi.

$21,399.00

List price. Volume pricing available.

Qty:

Thermal Imaging Safety

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

The FLIR Si2a-PD Fixed-Mount Acoustic Imaging Camera (No Wi-Fi) Si2a-PD-No-WiFi is manufactured by FLIR. Valley Instrument Service is an authorized FLIR dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 2 models. Select a model below to view details.

Model	Description	Price
Si2a-PD-WiFi	The FLIR Si2a-PD is a fixed-mount acoustic imaging camera for continuous, 24/7 monitoring of partial discharge, corona and arcing from up to 200 m, with AI-enhanced analysis, an IP66 enclosure and a VESA mount for switchgear, GIS and substations. This version includes Wi-Fi.	$21,399.00	View Details →
Si2a-PD-No-WiFiCurrent	The FLIR Si2a-PD is a fixed-mount acoustic imaging camera for continuous, 24/7 monitoring of partial discharge, corona and arcing from up to 200 m, with AI-enhanced analysis, an IP66 enclosure and a VESA mount for switchgear, GIS and substations. This version has no Wi-Fi.	$21,399.00	Viewing

Acoustic Measurement	124 low-noise MEMS microphones, real-time sound visualization
Severity Assessment	Automatic AI-based severity assessment including recommended actions
Distance	From 0.3 m (1.0 ft) up to 200 m (656 ft)
Digital Camera	12 MP Color
Field of view (FOV)	75° diagonal
Video Frame Rate	Streaming: 15 fps; Snapshots: 30 fps
Video Image Resolution	960 × 540 streaming; 16:9 aspect ratio
Able to Quantify	Surface or Internal Discharge, Positive and Negative Corona, Negative Corona, Floating Discharge
Bandwidth	2 kHz to 130 kHz
Detection Threshold	20 kHz: -19.5 dB; 35 kHz: -11.2 dB; 50 kHz: -9.8 dB; 80 kHz: 12.2 dB; 100 kHz: 22.8 dB
