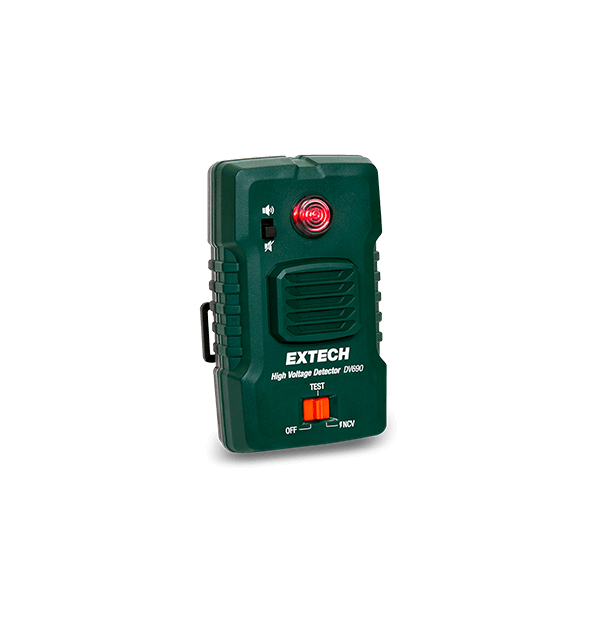

DV690 High Voltage Detector
SKU: DV690
The Extech DV690 is a rugged and reliable voltage detector that can quickly and safely detect up to 69 kV in high-voltage (HV) electrical systems. This non-contact, industrial-grade tool provides an extra layer of protection for anyone who works around HV electrical systems including electric power utility, storm restoration, telecommunications, and public safety professionals. Audible and visual alarms notify users of dangerous voltage presence, helping them maintain a safe distance in hazardous locations. Plus, five flexible mounting options make it easy to operate the device to get the job done efficiently.
List price. Volume pricing available.
The Extech DV690 is a rugged and reliable voltage detector that can quickly and safely detect up to 69 kV in high-voltage (HV) electrical systems. This non-contact, industrial-grade tool provides an extra layer of protection for anyone who works around HV electrical systems including electric power utility, storm restoration, telecommunications, and public safety professionals. Audible and visual alarms notify users of dangerous voltage presence, helping them maintain a safe distance in hazardous locations. Plus, five flexible mounting options make it easy to operate the device to get the job done efficiently.
The FLIR DV690 High Voltage Detector # DV690 is manufactured by FLIR. Valley Instrument Service is an authorized FLIR dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| NIST Calibration | No |
| Audible/Visible Indication | Beeper (>106 dB at 0 cm), flashing LED (507 lux) |
| Drop test | 4 ft (1.2 m) |
| Frequency Bandwidth | 50/60 Hz |
| Voltage Detection (Non-Contact) | 100 V AC to 69 kV AC |
| Certifications | CE |
| Dimensions | 5.24 × 3.03 × 2.05 in (133 × 77 × 52 mm) |
| IP Rating | IP54 |
| Power | 3 × AA (1.5V) batteries |
| Safety Category | EN 61326-1 |
| Warranty | 2 years |
| Weight | 0.49 lb (220 g) |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
DV690 | $359.00 | View Details → |
DV690Current | $359.00 | Viewing |
Related Products

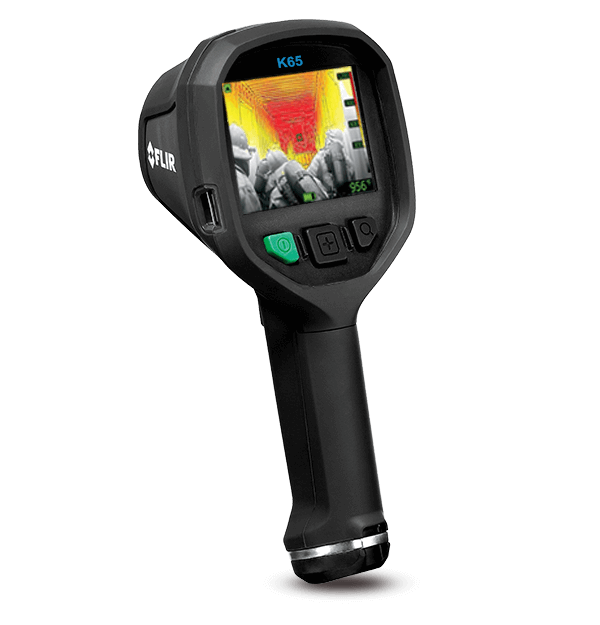

18701-0101 K75 320x240 Thermal Camera Kit
