ETS320 w/45° Lens, 320x240, -20 °C to +250 °C, w/FLIR Thermal Studio
SKU: 63950-1001

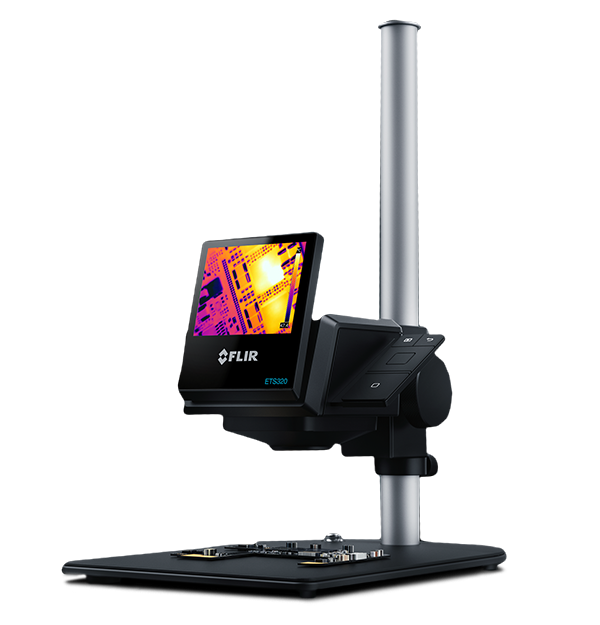

Whether the goal is product testing or scientific research, heat can be an important indicator of how a system is functioning. The FLIR ETS320 is a non-contact thermal measurement system that pairs a high-sensitivity infrared camera with an integrated stand, for hands-free measurement of printed circuit boards and other small electronics.
List price. Volume pricing available.
Whether the goal is product testing or scientific research, heat can be an important indicator of how a system is functioning. The FLIR ETS320 is a non-contact thermal measurement system that pairs a high-sensitivity infrared camera with an integrated stand, for hands-free measurement of printed circuit boards and other small electronics.
The FLIR ETS320 w/45° Lens, 320x240, -20 °C to +250 °C, w/FLIR Thermal Studio # ETS320 is manufactured by FLIR. Valley Instrument Service is an authorized FLIR dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Lens | 45° |
| Resolution | 320x240 |
| NIST Calibration | No |
| IR Resolution | 320 x 240 (76,800 pixels) |
| Spectral Range | 7.5 - 13.0 µm |
| Detector Type | Uncooled microbolometer |
| Camera f-number | f/1.5 |
| NETD | <60 mK |
| Available Lenses | NA |
| Close-up Lenses/Microscopes | NA |
| Field of view (FOV) | 45° x 34° |
| Fixed Focus Distance | 70 mm ± 10 mm |
| Image Frequency | 9 Hz |
| Non-radiometric IR video streaming | Uncompressed colorized video using USB |
| Radiometric IR video streaming | Full dynamic to PC (FLIR Tools/Tools+) using USB |
| Spot Size Min. Focus | 170 µm |
| Accuracy | ±3°C or ±3% of reading for ambient temperature 10°C to 35°C (50°F to 95°F) |
| Area | Box with max/min |
| Camera size (L x W x H) | 22 x 15 x 30 cm (8.7 x 5.9 x 11.8 in) |
| Camera weight incl battery | 0.575 kg (1.27 lbs) |
| Emissivity Correction | Variable from 0.1 to 1.0 |
| Reflected apparent temperature correction | Automatic, based on input of reflected temperature |
| Spot Meter | Center spot |
| Image File Format | Standard radiometric JPEG, 14-bit measurement data included |
| Interface | USB Micro: data transfer to and from PC and Mac devices |
| List of Contents | Camera, mount, stand, power supply, USB cable, FLIR Tools+ software |
| Packaging Size | 2.9 kg (6.4 lb.) |
| Display | 3 in, 320 x 240 pixel color LCD |
| Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li-ion battery, charged in camera |
| Charging Time | 2.5 hrs to 90% capacity |
| Directives and Regulations | Battery Directive 2006/66/EC, EMI/EMC Directive 2014/30/EU, WEEE Directive 2012/19/EC, RoHS2 Directive 2011/65/EC, FCC 47 CFR Part 15 Class B, REACH Regulation EC 1907/2006 |
| Emissivity Table | Table of pre-defined materials |
| Encapsulation & Shock & Vibration | IP 40 (IEC 60529) |
| Operating Temperature Range | 10°C to 40°C (50°F to 104°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
