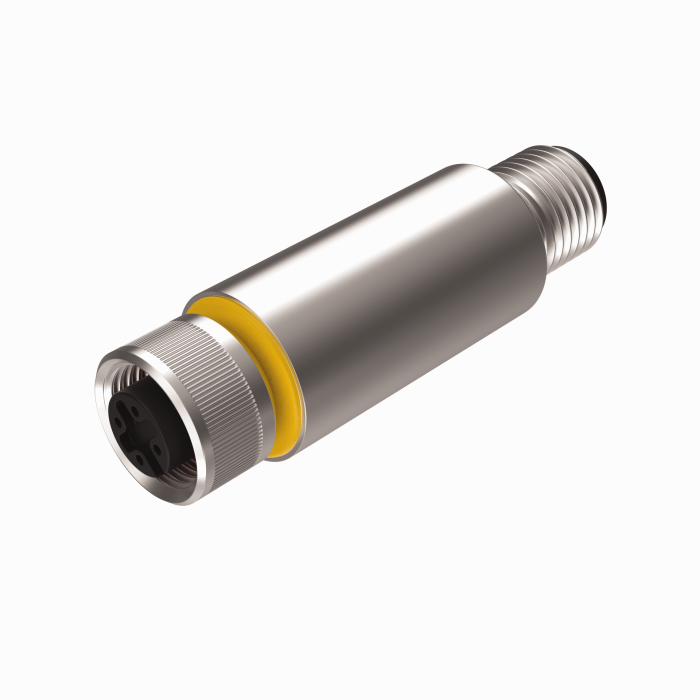

Temperature Detection - Miniature Transmitter for External Probes
SKU: TTMS-100-LIUPN-H1140
-50…350 °C · Current output (2-wire), Switching output · M12 × 1
$334.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Temperature Detection — Miniature Transmitter for External Probes
- Miniature design
- Factory setting 0…150 °C
- Parameterizable via IO-Link
- Analog output 4…20 mA (2-wire)
- Switching output
- For connection to external temperature probes
The Turck Temperature Detection - Miniature Transmitter for External Probes # TTMS-100-LIUPN-H1140 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101306200 |
| eCl@ss-Code (V5.1.4) | 27200206 -/- Transducer (temperature) |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 25 g |
| Detection type | medium contact |
| Design | Without display (external probe) |
| Measuring range | -50…350 °C |
| Process connection | M12 × 1 |
| Operating voltage | 18…32 VDC |
| Electrical output | Current output (2-wire), Switching output |
| Current output | 4…20 mA |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
| Ambient temperature | -40…+80 °C |
| Protection class | IP67 |
| Approvals | CE |
