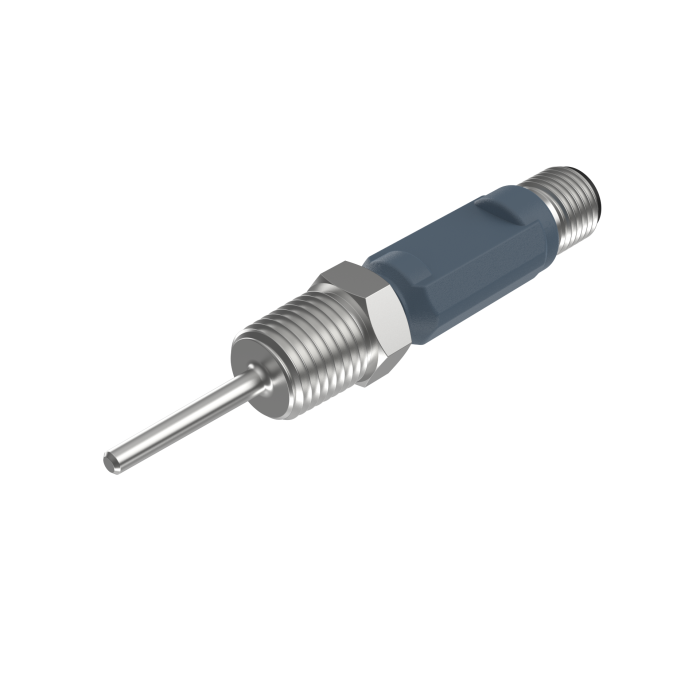

Temperature Detection - With Current Output
SKU: TTM050C-103A-N1/4-LI6-H1140-L024-50/50C
-50…110 °C · 1/4″ NPT-18 male thread
$184.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Temperature Detection — With Current Output
- Miniature design
- Analog output 4…20 mA
- Factory setting -50…50 °C (other settings on request)
- Process connection N1/4" male thread
The Turck Temperature Detection - With Current Output # TTM050C-103A-N1/4-LI6-H1140-L024-50/50C is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101451870 |
| eCl@ss-Code (V5.1.4) | 27200206 -/- Transducer (temperature) |
| Customs tariff number | 90251900900 |
| Country of origin | IT |
| Weight | 36 g |
| Detection type | medium contact |
| Design | Without display (integrated probe) |
| Measuring range | -50…110 °C |
| Immersion depth L | 24 mm |
| Process connection | 1/4″ NPT-18 male thread |
| Operating voltage | 5.5…32 VDC |
| Current output | 4…20 mA |
| Measuring element | Pt1000 |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L) |
| Ambient temperature | -40…+80 °C |
| Protection class | IP67 |
| Approvals | CE |
