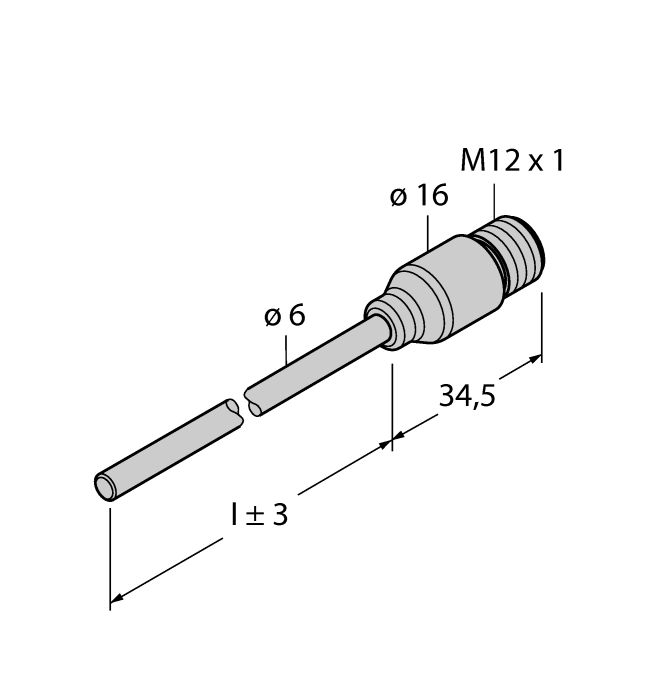

Temperature Detection - Probe, Stainless Steel
SKU: TPS-206A-CF-H1141-L100
-50…500 °C · Resistance · For compression fittings, thermowell or direct mounting
$146.10
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Temperature Detection — Probe, Stainless Steel
- Pt‐100 probe acc. to DIN EN 60751
- Vibration an shock-resistant
- Class A for temperatures < 350 °C
- Class B for temperatures > 350 °C
- Can be connected to TS, TTM, IM34, BL20, BL67 and excom
- Measuring element: Pt 100 temperature sensor, DIN EN 60 751, Class A
- Max. temperature connector: 120°C
- Connection mode: 4-wire connection
- Process connection via compression fitting or thermowell.
The Turck Temperature Detection - Probe, Stainless Steel # TPS-206A-CF-H1141-L100 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101271096 |
| eCl@ss-Code (V5.1.4) | 27200208 -/- Temperature measurement electrical complete |
| Customs tariff number | 9031909195 |
| Country of origin | DE |
| Weight | 37 g |
| Detection type | medium contact |
| Design | Temperature probe |
| Measuring range | -50…500 °C |
| Immersion depth L | 100 mm |
| Process connection | For compression fittings, thermowell or direct mounting |
| Electrical output | Resistance |
| Measuring element | Pt100 |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
| Ambient temperature | -40…+120 °C |
| Protection class | IP67 |
