Temperature Detection - Probe
SKU: TP-203B-CF-H1141-L200/D805
-200…500 °C · Resistance · For compression fittings, thermowell or direct mounting
$113.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

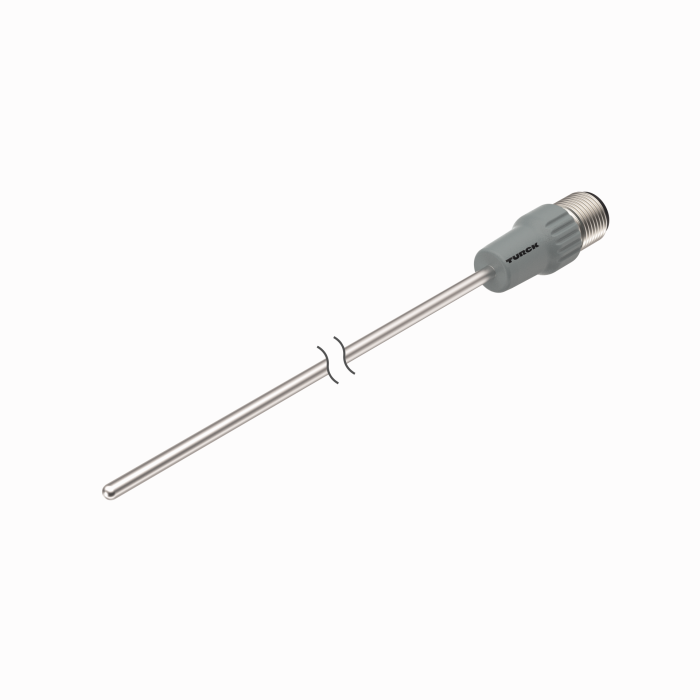

Temperature Detection — Probe
- Operating temperature of the connector: -20 … 120 °C
- 4-wire connection technology
- Process connection via compression fitting or thermowell
- Bendable probe (min. bending radius: 3x outer diameter; excluding 30-mm probe tip)
The Turck Temperature Detection - Probe # TP-203B-CF-H1141-L200/D805 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101543650 |
| eCl@ss-Code (V5.1.4) | 27200208 -/- Temperature measurement electrical complete |
| Customs tariff number | 9031909195 |
| Country of origin | DE |
| Weight | 20 g |
| Detection type | medium contact |
| Design | Temperature probe |
| Measuring range | -200…500 °C |
| Immersion depth L | 200 mm |
| Process connection | For compression fittings, thermowell or direct mounting |
| Electrical output | Resistance |
| Measuring element | Pt100 |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
| Ambient temperature | -20…+120 °C |
| Protection class | IP67 |
| Approvals | cULus |
