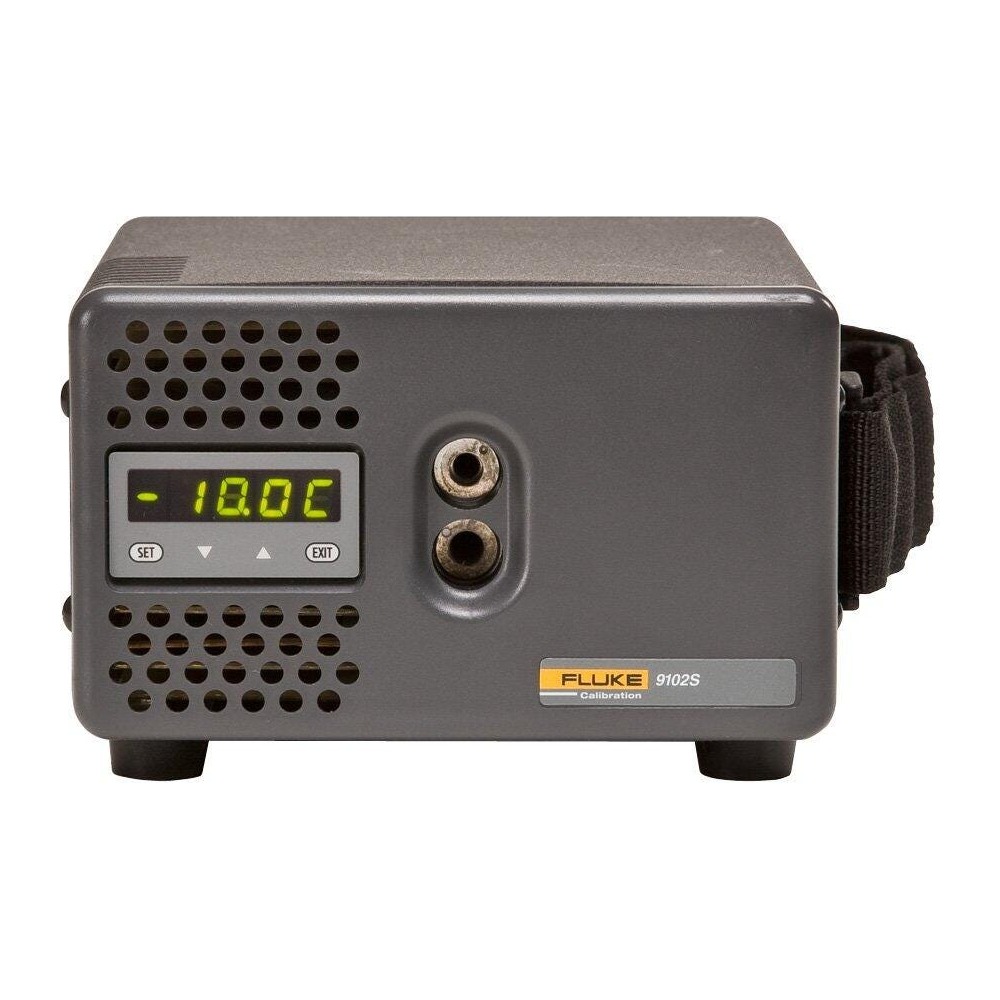

9102S Handheld Dry-Well, Low Temperature, 115 V
SKU: 9102S-156
Dry-Well, Handheld Low-Temp
Contact us for pricing on this product.
For work in the temperature range of –10°C to 122°C, 9102S dry-well is another first in the industry, featuring stability to ±0.05°C.
This dry-well is only four inches high and six inches wide, achieves temperatures as low as –10°C, includes a NIST-traceable calibration, and is stable to ±0.05°C. The Model 9102S is excellent for dial gauges, digital thermometers, bulb switches, and other sensors that need calibration below ambient.
The 9102S has two wells so you can use one for a reference thermometer to increase accuracy. Both wells are 1/2 inch in diameter, and each has inserts available for almost any sensor size.
Key Features
- Temperature ranges from –10°C to 375°C.
- Accuracy to ±0.25°C, with stability of ±0.05°C at 0°C.
- Equipped with an RS-232 interface for connectivity.
The Fluke Calibration 9102S Handheld Dry-Well, Low Temperature, 115 V # 9102S-156 is manufactured by Fluke Calibration. Valley Instrument Service is an authorized Fluke Calibration dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Specifications | 9100S; 9102S |
| Range | 35°C to 375°C (95°F to 707°F); –10°C to 122°C (14°F to 252°F) at 23°C ambient |
| Accuracy | ±0.25°C at 50°C; ±0.25°C at 100°C; ±0.5°C at 375°C; ±0.25°C |
| Stability | ±0.07°C at 50°C; ±0.1°C at 100°C; ±0.3°C at 375°C; ±0.05°C |
| Well-to-well uniformity | ±0.2°C with sensors of similar size at equal depths within wells |
| Heating times | 35°C to 375°C: 9.5 minutes; Ambient to 100°C: 10 minutes |
| Stabilization | 5 minutes; 7 minutes |
| Cooling times | 375°C to 100°C: 14 minutes; Ambient to 0°C: 10 minutes |
| Well depth | 102 mm (4 in); 1.6 mm (1/16 in) hole is 89 mm (3.5 in) deep; 102 mm (4 in) |
| Removable inserts | N/A; Available in sizes from 1.6 mm (1/16 in) to 11.1 mm (7/16 in) [6.4 mm (1/4 in) and 4.8 mm (3/16 in) included] |
| Power | 115 V AC (±10%), 55–65 Hz, 1.5 A or 230 V AC (±10%), 0.8 A, 45–55 Hz, 175 W; 94-234 V AC (±10%), 50/60 Hz, 60 W; or 12 V DC |
| Size (H x W x D) | 57 x 125 x 150 mm (2.25 x 4.9 x 6.1 in); 99 x 140 x 175 mm (3.9 x 5.5 x 6.9 in) |
| Weight | 1 kg (2 lb 3 oz); 1.8 kg (4 lb) |
| Computer interface | RS-232 included |
| NIST-traceable calibration | Data at 50°C, 100°C, 150°C, 200°C, 250°C, 300°C and 375°C; Data at –10°C, 0°C, 25 °C, 50°C, 75 °C,100°C and 122°C |
Related Products
9009 Dual-Well Dry-Well (Black), 115 V
Dry-Well, Dual-Block (Black), 110V 50/60HZ

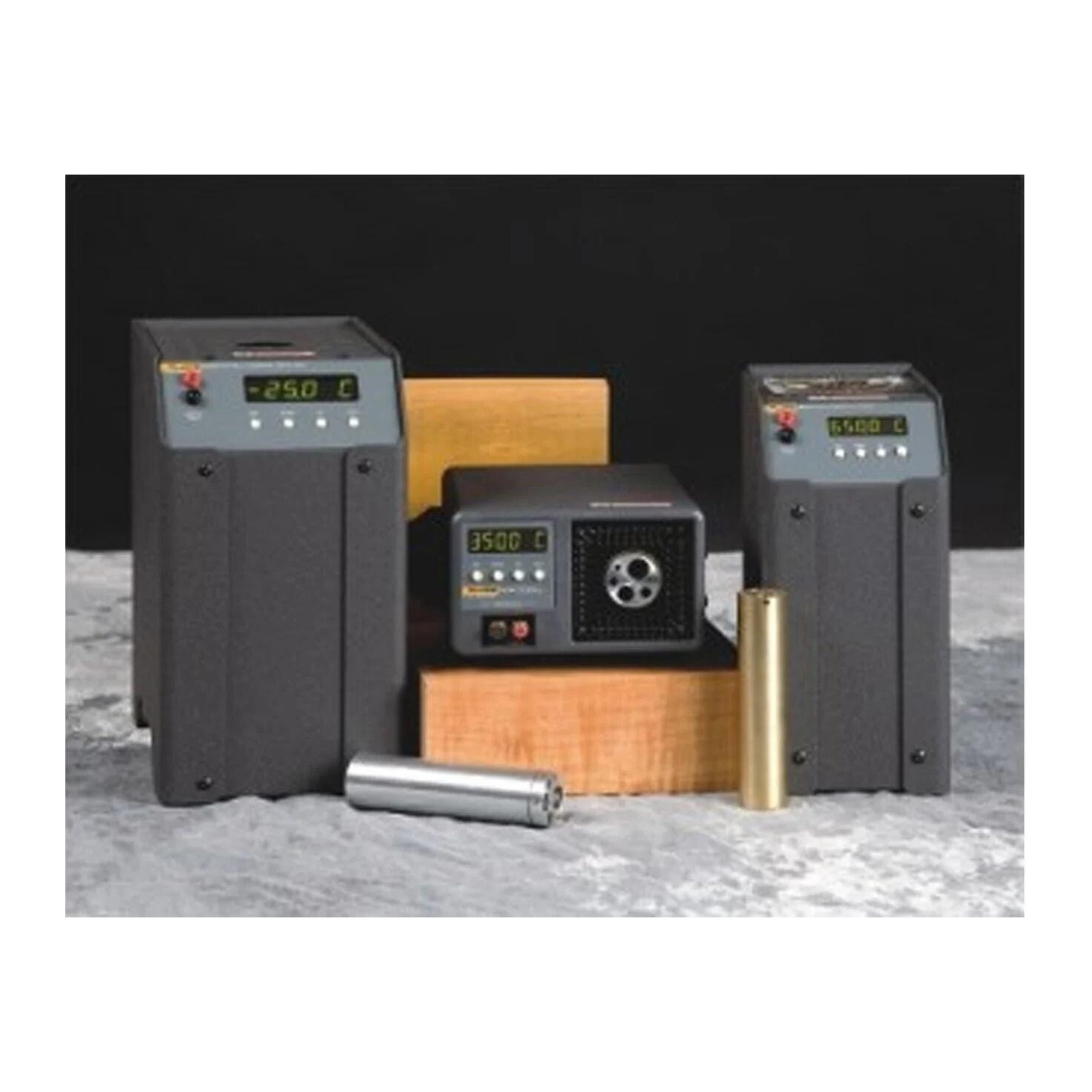

Field Dry-Well, -25 to 140°C, Insert A, 115V
Field Dry-Well, -25 to 140°C, Insert A, miscellaneous (cold side), 115 V
Field Dry-Well, -25 to 140°C, Insert A, 115V
Field Dry-Well, -25 to 140°C, Insert A, 115 V

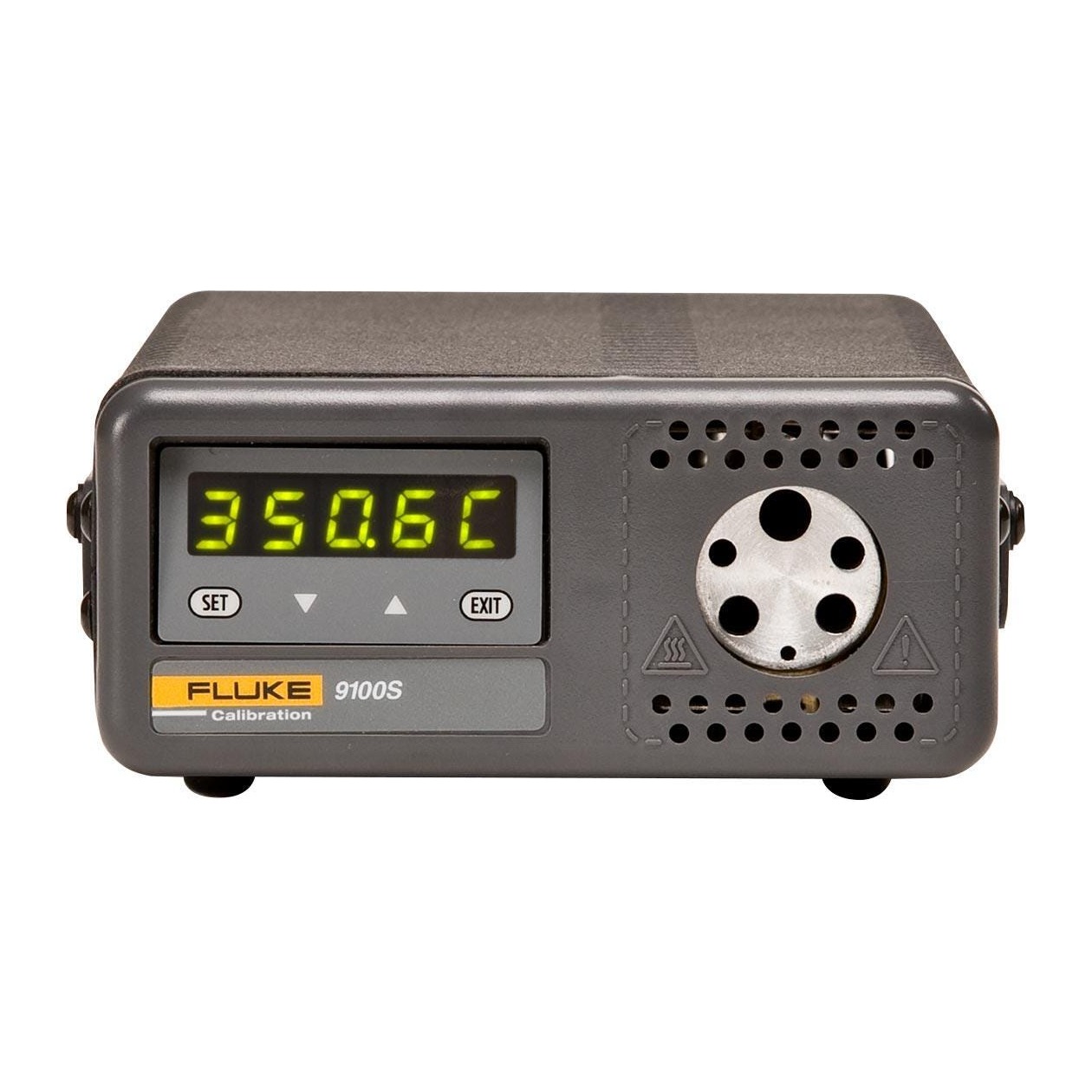

Handheld Dry-Well, 35 to 375°C, Insert A, 115V
