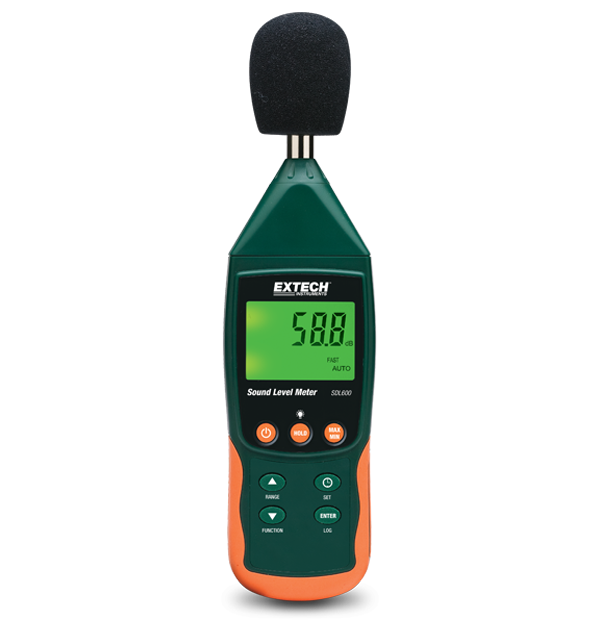

SDL600 Sound Meter SD Logger
SKU: SDL600
The SDL600 records data on an SD card in Excel format. High accuracy ±1.4dB meets ANSI and IEC 61672-1 Type 2 standards. 30 to 130dB measurement range. Auto or Manual ranging. AC analog output for connection to an analyzer or recorder. Large backlit LCD display. Stores 99 readings manually and 20M readings via 2G SD card. Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC. User programmable sampling rate from 1 to 3600 seconds. Featuring Min/Max, Data Hold, and Auto Power Off functions. Complete with 6 AA batteries, SD Card, wind screen, and hard carrying case.
List price. Volume pricing available.
The SDL600 records data on an SD card in Excel format. High accuracy ±1.4dB meets ANSI and IEC 61672-1 Type 2 standards. 30 to 130dB measurement range. Auto or Manual ranging. AC analog output for connection to an analyzer or recorder. Large backlit LCD display. Stores 99 readings manually and 20M readings via 2G SD card. Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC. User programmable sampling rate from 1 to 3600 seconds. Featuring Min/Max, Data Hold, and Auto Power Off functions. Complete with 6 AA batteries, SD Card, wind screen, and hard carrying case.
The Extech SDL600 Sound Meter SD Logger # SDL600 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Analog Output | AC |
| Frequency Bandwidth | 31.5 to 8000Hz |
| Memory | 20M data records using 2G SD card |
| Response Time | Fast/Slow |
| Sound Range (dB) | 30 to 130dB (3 ranges) |
| Sound Range (dB) Basic Accuracy | ±1.4dB |
| Weighting | A,C |
| Certifications | SDL600-NIST_S: CE, NIST / SDL600_S: CE |
| Dimensions | 9.8 × 2.9 × 1.9" (250 × 73 × 48mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 3 years |
| Weight | 18.3oz (520g) |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
SDL600Current | $769.00 | Viewing |
SDL600-NIST | $964.00 | View Details → |
