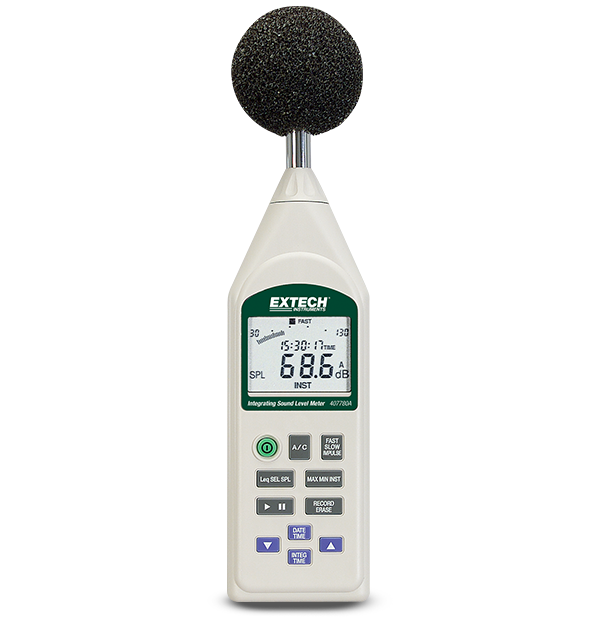

407780A Sound Level Datalogger, Integrating with USB Interface
SKU: 407780A
The 407780A is an integrating sound level meter with USB. The meter takes Leq and SEL measurements with A and C frequency weighting options. The meter has a built in datalogger that records up to 32,000 records and PC interface to easily access your logged information. Its 4 digit multifunction LCD has an analog bargraph and digital reading. With the 407780A you can program integration times, utilize impulse, fast or slow response settings and benefit from alarm features. Complete with windscreen, adjustment screwdriver, USB cable, Windows compatible software, battery, one year warranty and case.
List price. Volume pricing available.
The 407780A is an integrating sound level meter with USB. The meter takes Leq and SEL measurements with A and C frequency weighting options. The meter has a built in datalogger that records up to 32,000 records and PC interface to easily access your logged information. Its 4 digit multifunction LCD has an analog bargraph and digital reading. With the 407780A you can program integration times, utilize impulse, fast or slow response settings and benefit from alarm features. Complete with windscreen, adjustment screwdriver, USB cable, Windows compatible software, battery, one year warranty and case.
The Extech 407780A Sound Level Datalogger, Integrating with USB Interface # 407780A is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Analog Output | AC/DC |
| Memory | 32,000 records |
| Microphone | Condenser, 0.5” (12.7mm) |
| PC Interface | Yes |
| Response Time | Fast/Slow |
| Sound Range (dB) | 30 to 130dB |
| Sound Range (dB) Basic Accuracy | ±1.5dB |
| Sound Range (dB) Max Resolution | 0.1dB |
| Weighting | A,C |
| Certifications | 407780A-NIST_S: CE, NIST / 407780A_S: CE |
| Dimensions | 10.4 × 2.8 × 0.8" (265 × 72 × 21mm) |
| Warranty | 2 years |
| Weight | 10.9oz (310g) |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
407780ACurrent | $1,849.00 | Viewing |
407780A-NIST | $2,044.00 | View Details → |
