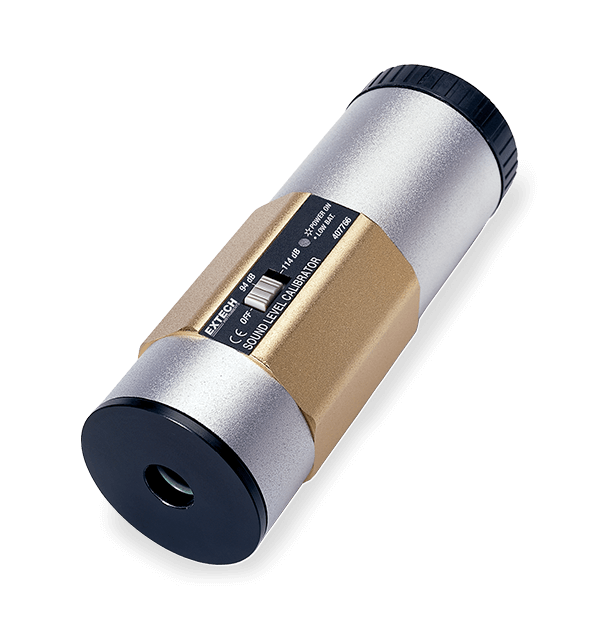

407766-NIST Calibrator, Sound w/NIST 407766
SKU: 407766-NIST
This 1kHz 94/114dB professional sound calibrator is for 0.5 in. or 1 in. microphones. Calibrates and verifies sound level meter operation. Level position switch to select 94dB or 114dB with power on LED indicator light. Durable die-cast aluminum housing generates a 1kHz sine wave at 94dB/114dB to an accuracy of 5% (frequency) and ±0.5dB (94dB)/±1.0dB (114dB). Meets IEC standard 60942 1997-11. Comes complete with two 9V batteries, carrying case and screwdriver.
List price. Volume pricing available.
This 1kHz 94/114dB professional sound calibrator is for 0.5 in. or 1 in. microphones. Calibrates and verifies sound level meter operation. Level position switch to select 94dB or 114dB with power on LED indicator light. Durable die-cast aluminum housing generates a 1kHz sine wave at 94dB/114dB to an accuracy of 5% (frequency) and ±0.5dB (94dB)/±1.0dB (114dB). Meets IEC standard 60942 1997-11. Comes complete with two 9V batteries, carrying case and screwdriver.
The Extech 407766-NIST Calibrator, Sound w/NIST 407766 # 407766-NIST is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| NIST Calibration | Yes |
| Frequency | 1000Hz |
| Frequency Basic Accuracy | ±5% |
| Sound Range (dB) | 94dB/114dB |
| Sound Range (dB) Basic Accuracy | ±0.5dB (94dB); ±1dB (114dB) |
| Total Harmonic Distortion (THD) | <2% |
| Certifications | 407766-NIST_S: CE, NIST / 407766_S: CE |
| Dimensions | 2.2" diameter × 5.6" long (50 × 127mm) |
| Power | 2 × 9V batteries |
| Warranty | 2 years |
| Weight | 0.75 lbs. (340g) |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
407766 | $519.00 | View Details → |
407766-NISTCurrent | $714.00 | Viewing |
