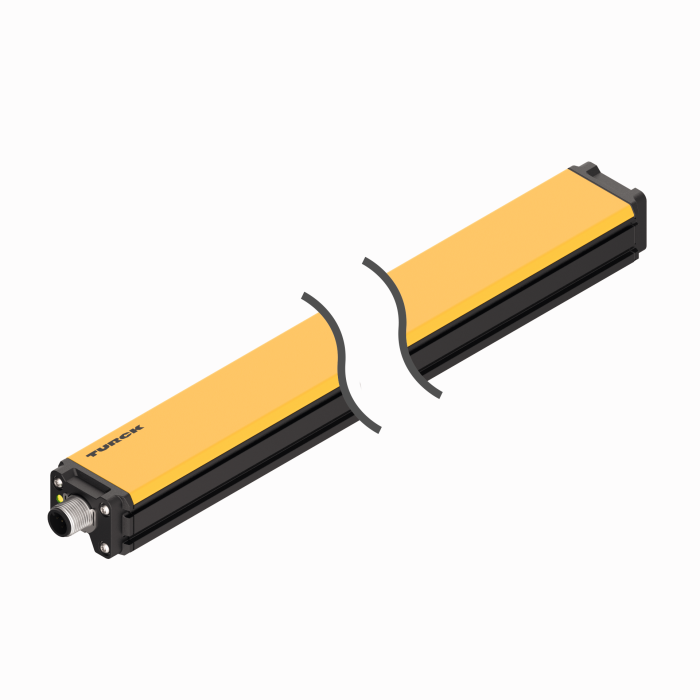

Magnetically Actuated Linear Position Sensor
SKU: WIM200-Q25L-LIU5X2-H1141
Magnetic · 200 mm [7.87 in] · Analog output · Connector, M12 × 1
$572.60
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Magnetically Actuated Linear Position Sensor
- Rectangular, aluminium / plastic
- Many mounting possibilities
- Measuring range indication via LED
- Immune to external magnetic fields
- Extremely short blind zones
- 4-wire, 15…30 VDC
- Analog output
- 0…10 V and 4…20 mA
- Male connector, M12 x 1
The Turck Magnetically Actuated Linear Position Sensor WIM200-Q25L-LIU5X2-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101200560 |
| eCl@ss-Code (V5.1.4) | 27270705 -/- Magnetic linear position sensor |
| Customs tariff number | 7616995190 |
| Country of origin | DE |
| Weight | 428 g |
| Design | Profile |
| Measuring principle | Magnetic |
| Measuring range | 200 mm [7.87 in] |
| Operating voltage | 15…30 VDC |
| Output function | Analog output |
| Voltage output | 0…10 V |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Aluminum/plastic, PA6-GF30 |
| Ambient temperature | -25…+75 °C |
| Protection class | IP67 |
