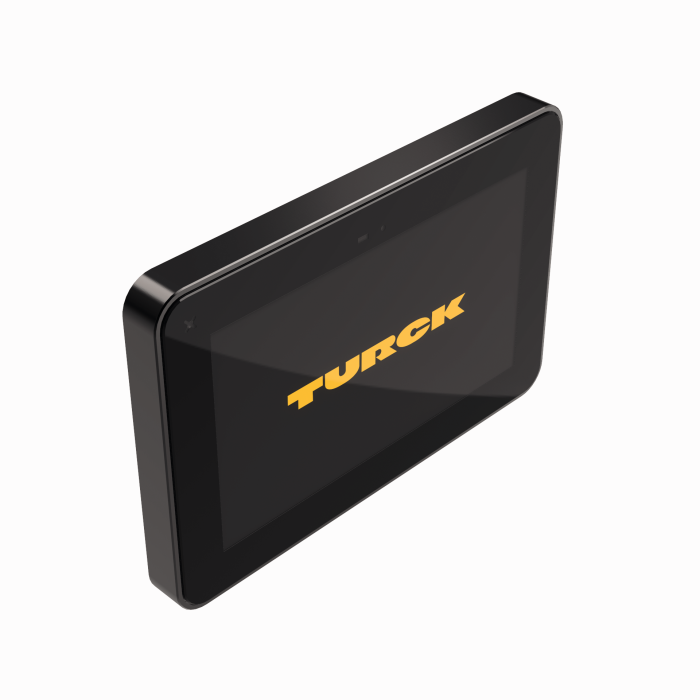

TXF700 HMI Product Series in IP67 - 7″ Display with TX VisuPro Runtime
SKU: TXF707-00VP20
TXF700 HMI Product Series in IP67 — 7″ Display with TX VisuPro Runtime — Metal Housing with Full IP67 Protection, Glass Front with Capacitive Touch
$1,978.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
TXF700 HMI Product Series in IP67 — 7″ Display with TX VisuPro Runtime — Metal Housing with Full IP67 Protection, Glass Front with Capacitive Touch
- 7" TFT widescreen color display
- LED backlight
- 1024 × 600 pixel resolution
- 16 M colors
- Capacitive touch screen, multi-touch and gesture control
- 1 RJ45 PoE Ethernet Port 10/100 Mbps
- 1 USB host port
- Wi-Fi functionality as an access point/client
- Integrated temperature sensor and 3-axis accelerometer
- Front RGB LED
- Integrated beeper
The Turck TXF700 HMI Product Series in IP67 - 7″ Display with TX VisuPro Runtime # TXF707-00VP20 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101522648 |
| eCl@ss-Code (V5.1.4) | 27242302 -/- Graphic panel (display and console) |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 1003 g |
| Product Family | TXF700 |
| Device function | HMI |
| Diagonal screen size | 7 ″ |
| Touchscreen | Capacitive, Glass front |
| Application area | Factory Automation |
| Format | 16:9 |
| Processor | ARM Cortex A9, Dual core 800 MHz |
| Memory | 4 GB Flash |
| RAM memory | 1 GB |
| Protection class | IP67 |
