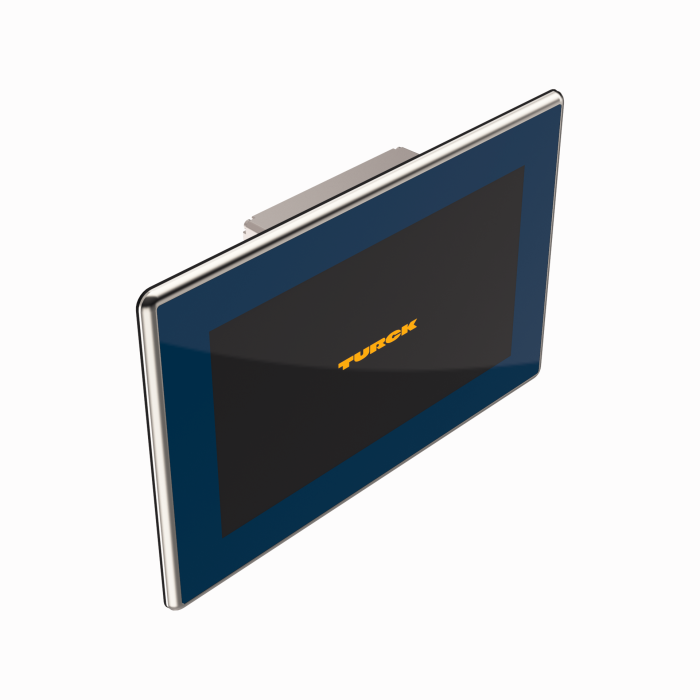

TX700 HMI/PLC Series - 15” Display for F&B — Codesys V3 PLC with TARGET and WEB VISU
SKU: TX715FB-P3CV01
15 ″ · ARM Cortex A9, Quad core 800 MHz · TX700 · Capacitive, Glass front
$5,218.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
TX700 HMI/PLC Series — 15” Display for F&B — Codesys V3 PLC with TARGET and WEB VISU — High-Quality Metal Housing and Glass Front with a Capacitive Touch
- 15" TFT wide screen color display
- LED backlight
- 1366x768 pixel resolution
- 16 M colors
- Capacitive touchscreen with glass front and polyester coating
- Stainless steel frame and food-grade seal
- IP69 degree of protection, high-pressure watertight up to 80 °C
- Acid- and chemical-resistant
- 3 RJ45 Ethernet ports with 10/100 Mbit
- 1 serial interface (RS232, RS485, RS422)
- 2 USB host ports
- 1 SD card slot
The Turck TX700 HMI/PLC Series - 15” Display for F&B — Codesys V3 PLC with TARGET and WEB VISU # TX715FB-P3CV01 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101509571 |
| eCl@ss-Code (V5.1.4) | 27242302 -/- Graphic panel (display and console) |
| Customs tariff number | 8537109160 |
| Country of origin | IT |
| Weight | 8580 g |
| Product Family | TX700 |
| Device function | HMI/PLC |
| Diagonal screen size | 15 ″ |
| Touchscreen | Capacitive, Glass front |
| Application area | Food industry |
| Format | 16:9 |
| Processor | ARM Cortex A9, Quad core 800 MHz |
| Memory | 8 GB Flash |
| RAM memory | 2048 MB |
| Programming | CODESYS V3 |
| Fieldbus master | PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT |
| Fieldbus slave | Modbus TCP, Modbus RTU, PROFINET |
| Protection class | IP69 front, IP20 rear |
