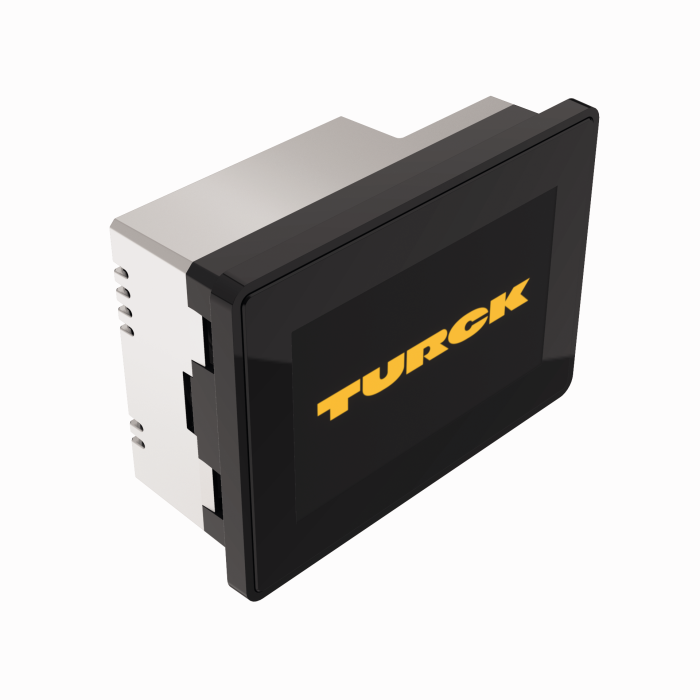

TX700 HMI/PLC Series - 5” Display - Codesys V3 PLC with TARGET and WEB VISU
SKU: TX705-P3CV01
5 ″ · ARM Cortex A8, 1 GHz · TX700 · Capacitive, Glass front
$1,223.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
TX700 HMI/PLC Series — 5” Display - Codesys V3 PLC with TARGET and WEB VISU — High-Quality Metal Housing and Glass Front with a Capacitive Touch
- 5" TFT wide screen color display
- LED backlight
- 800 x 480 pixel resolution
- 64 K colors
- Capacitive touchscreen with glass front
- 2 separated RJ45 Ethernet ports with 10/100 Mbit
- 1 serial interface (RS232, RS485, RS422)
- 1 USB host port
- 1 SD card slot
- 1 expansion module slot
The Turck TX700 HMI/PLC Series - 5” Display - Codesys V3 PLC with TARGET and WEB VISU # TX705-P3CV01 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101456363 |
| eCl@ss-Code (V5.1.4) | 27242302 -/- Graphic panel (display and console) |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 1170 g |
| Product Family | TX700 |
| Device function | HMI/PLC |
| Diagonal screen size | 5 ″ |
| Touchscreen | Capacitive, Glass front |
| Application area | Factory Automation |
| Format | 16:9 |
| Processor | ARM Cortex A8, 1 GHz |
| Memory | 4 GB Flash |
| RAM memory | 512 MB |
| Programming | CODESYS V3 |
| Fieldbus master | PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT |
| Fieldbus slave | Modbus TCP, Modbus RTU, PROFINET |
| Protection class | IP66 front, IP20 rear |
