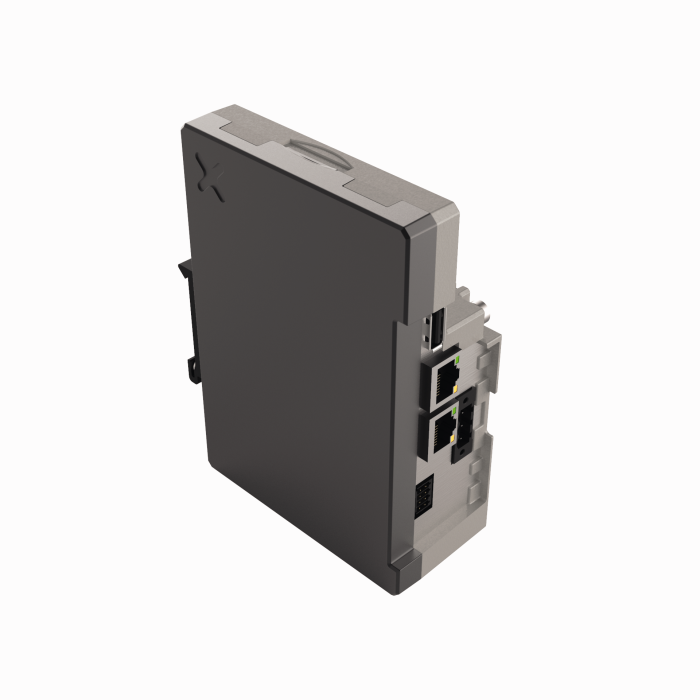

TX700 HMI/PLC Series — Single-Core IOT Gateway — Codesys V3 PLC with WEB VISU — Medium Housing, 2 × RJ45 Ethernet

2 separated RJ45 Ethernet ports with 10/100 Mbit
1 serial interface (RS232, RS485, RS422)
1 USB host port
1 SD card slot
1 expansion module slot

The Turck TX700 HMI/PLC Series - Single-Core IOT Gateway — Codesys V3 PLC with WEB VISU # TX700S-P3WV01 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

EAN	4047101513066
eCl@ss-Code (V5.1.4)	27242302 -/- Graphic panel (display and console)
Customs tariff number	8536504000
Country of origin	DE
Weight	940 g
Product Family	TX700
Device function	PLC/IoT gateway
Processor	ARM Cortex A8, 1 GHz
Memory	4 GB Flash
RAM memory	512 MB
Programming	CODESYS V3
Fieldbus master	PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT
Fieldbus slave	Modbus TCP, Modbus RTU, PROFINET
Protection class	IP20

TX700 HMI/PLC Series - Single-Core IOT Gateway — Codesys V3 PLC with WEB VISU
